Spark Plugs

SPARK PLUG TYPE

Application	Nippondenso	NGK
Prizm	Q16R-U	BCPR-5EY
Prizm GSi	PK20R8	BKR6EP8

SPARK PLUG SPECIFICATIONS

Application	Gap In. (mm)	Torque Ft. Lbs. (N.m)
Prizm (4A-FE)	.031 (.79)	21 (29)
Prizm GSi (4A-GE)	.031 (.79)	21 (29)

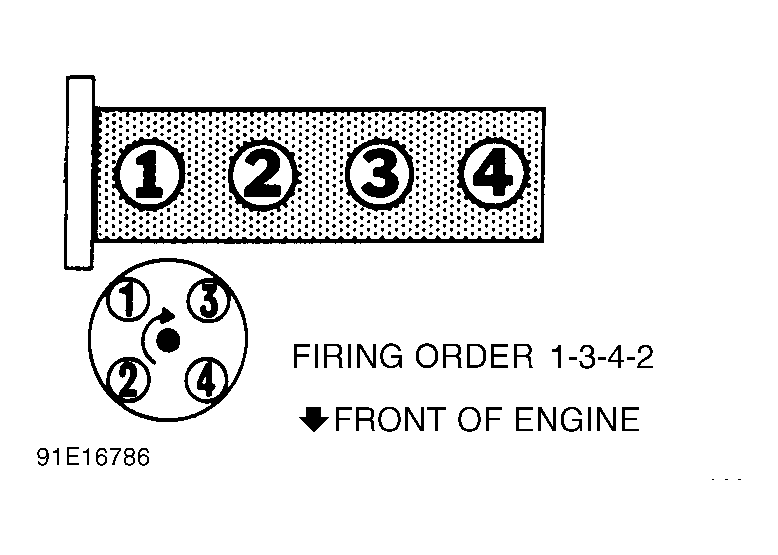

Fig 1: Cylinder Identification, Firing Order & Distributor Rotation (Prizm GSI VIN 6)

Fig 2: Cylinder Identification, Firing Order & Distributor Rotation (Prizm VIN 5)
