Ignition Coil Resistance

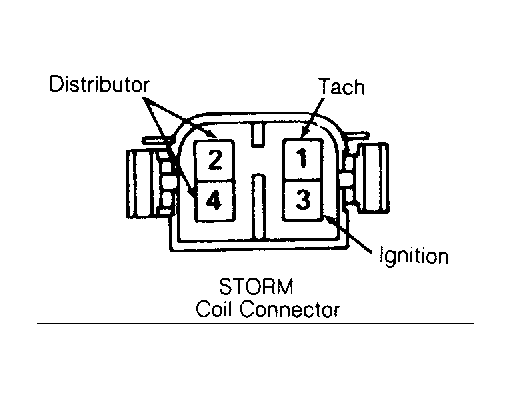

- Unplug ignition coil primary wire connector. Remove secondary wire from ignition coil. Using ohmmeter, check resistance between coil primary terminals No. 1 and No. 2. See Figure .
- Check secondary resistance between coil (wire) secondary terminal and primary ignition terminal No. 3. Replace coil if readings are not within specifications. See IGNITION COIL RESISTANCE table.
HIGH TENSION WIRE RESISTANCE
| Application | Ohms Per Foot |
|---|---|
| All Models | 3,000-6,500 |
IGNITION COIL RESISTANCE - Ohms @ 68°F (20°C)
| Application | Primary | Secondary |
|---|---|---|
| Storm | 1.30-1.60 | 10,400-14,000 |
