Pin Voltages

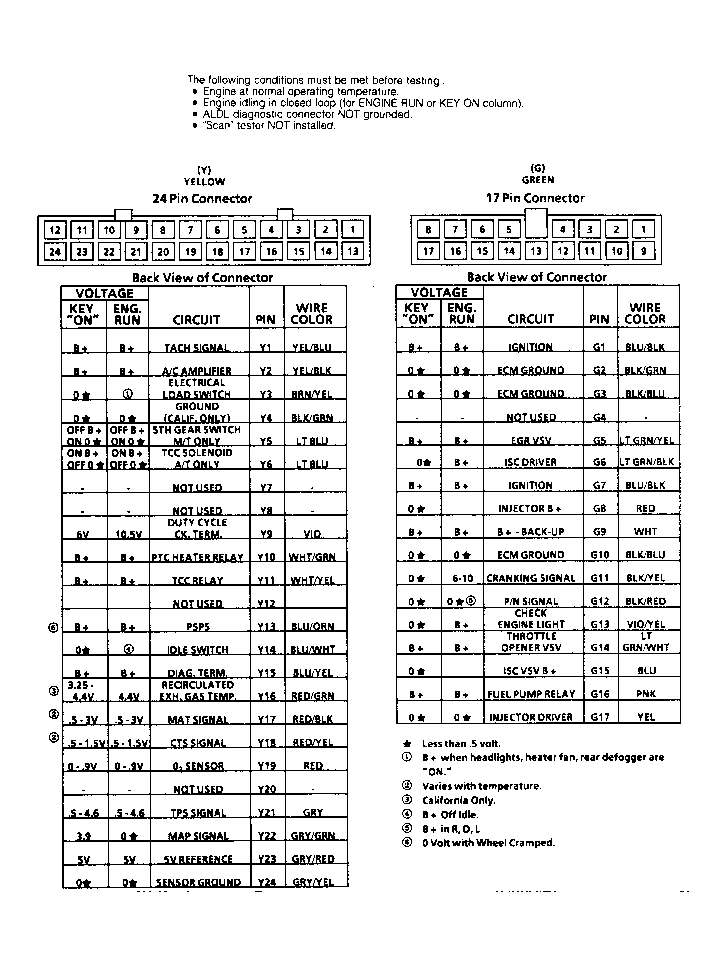

Fig 1: Checking ECM Terminal Pin Voltages
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
