Timing Component Alignment Marks: Locations

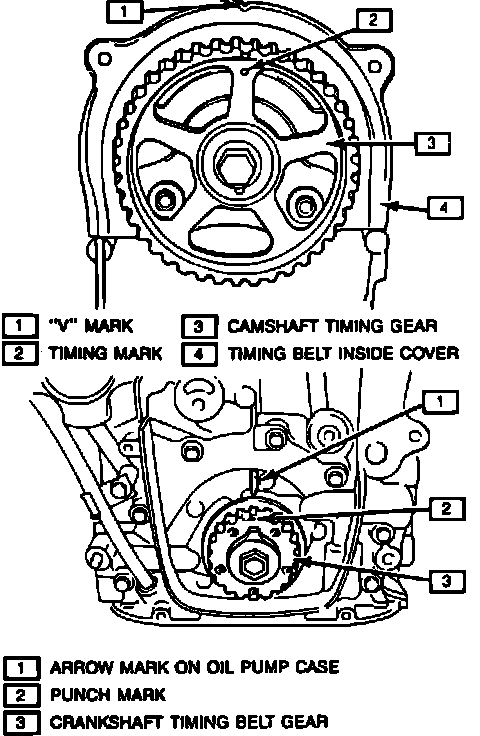

Fig. 18 Timing Belt Pulley Marks:

CAUTION: Incorrect removal or installation of the timing belt can result in damage to internal engine components.

For complete Timing Belt Removal and Installation information, Service and Repair
