Spark Plug: Adjustments

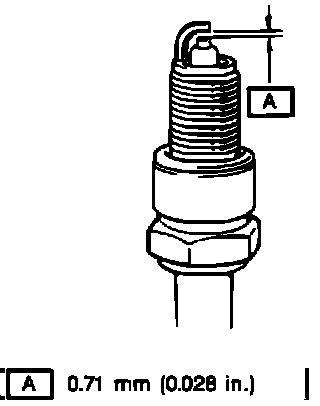

Plug Gap:
Check the
spark plug
gap, to make sure that it is within specification. Spark plug gap should be 0.71 mm (0.028 in.). If not spark plug gap should be adjusted by bending the ground side of electrode.
