Diagnostic Aids

Improper fuel pressure may cause a no-start condition, engine to cut out, hesitation and loss of power.

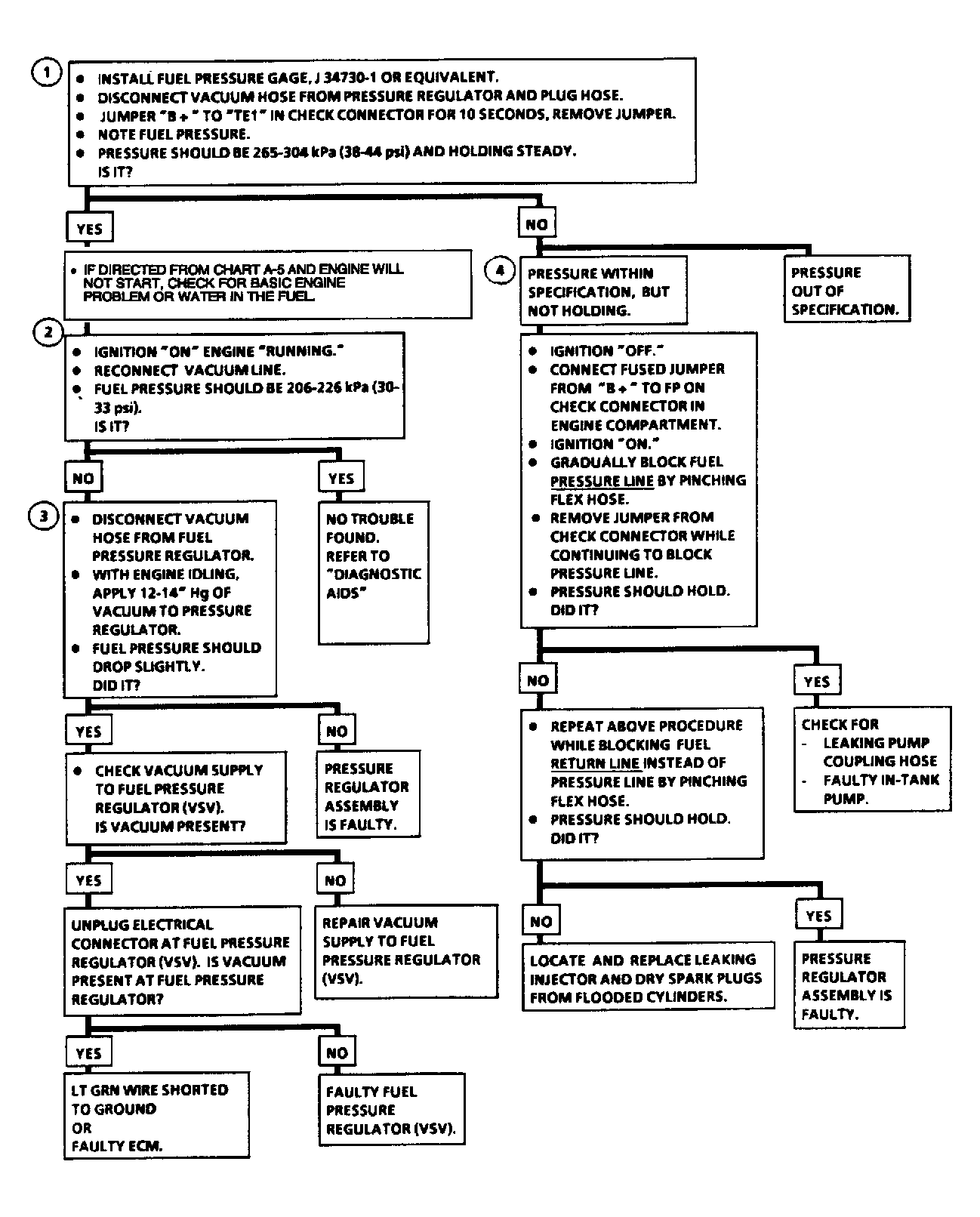

Fig 1: Chart A-7, Fuel System Pressure Test, GSi (1 of 2)

Courtesy of GENERAL MOTORS CORP.

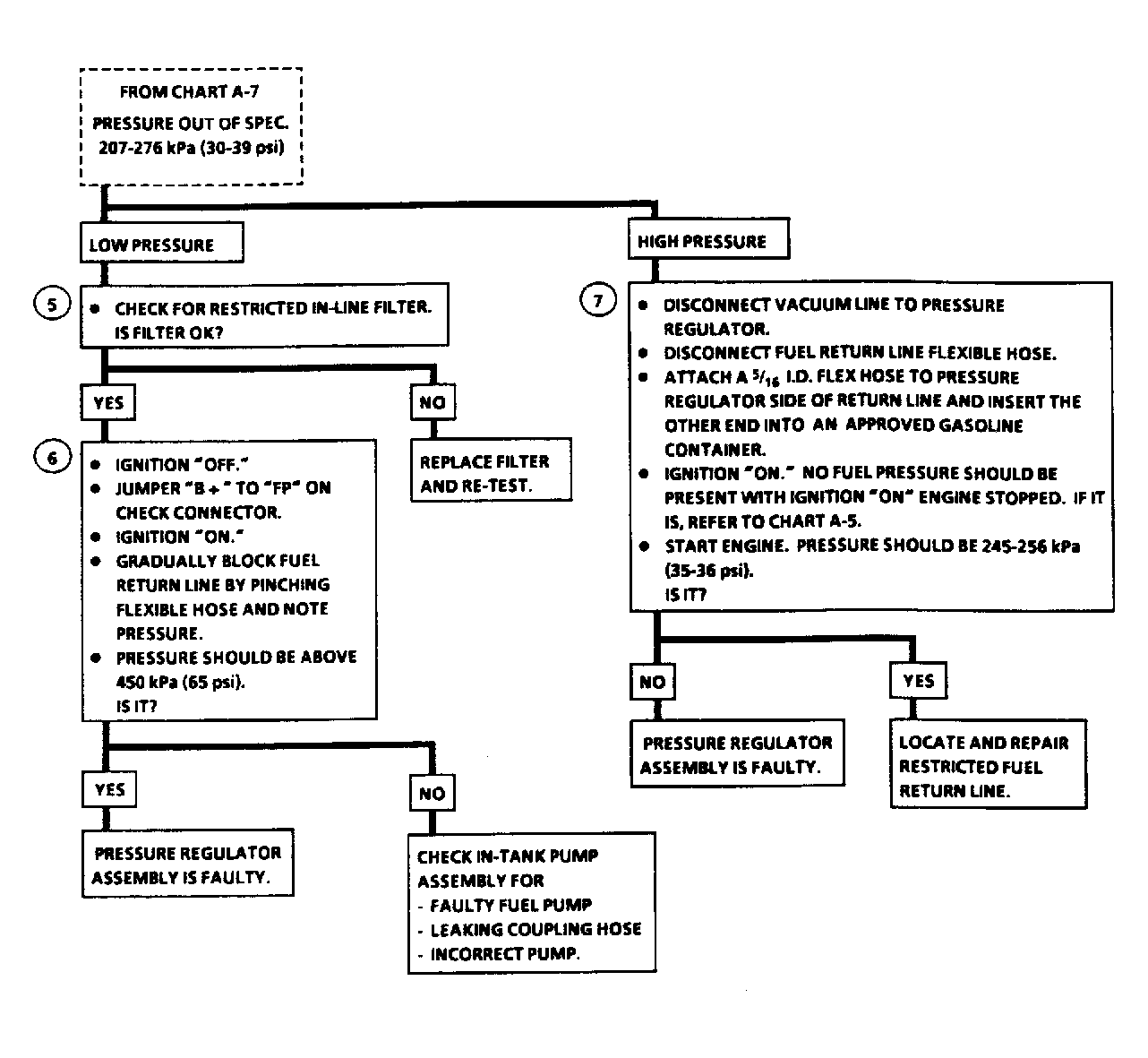

Fig 2: Chart A-7, Fuel System Pressure Test, GSi (2 of 2)

Courtesy of GENERAL MOTORS CORP.
