Power Windows System Diagnosis

Perform system tests by starting at A1, check result and proceed to next step as directed. See Fig 1 -Fig 7 .

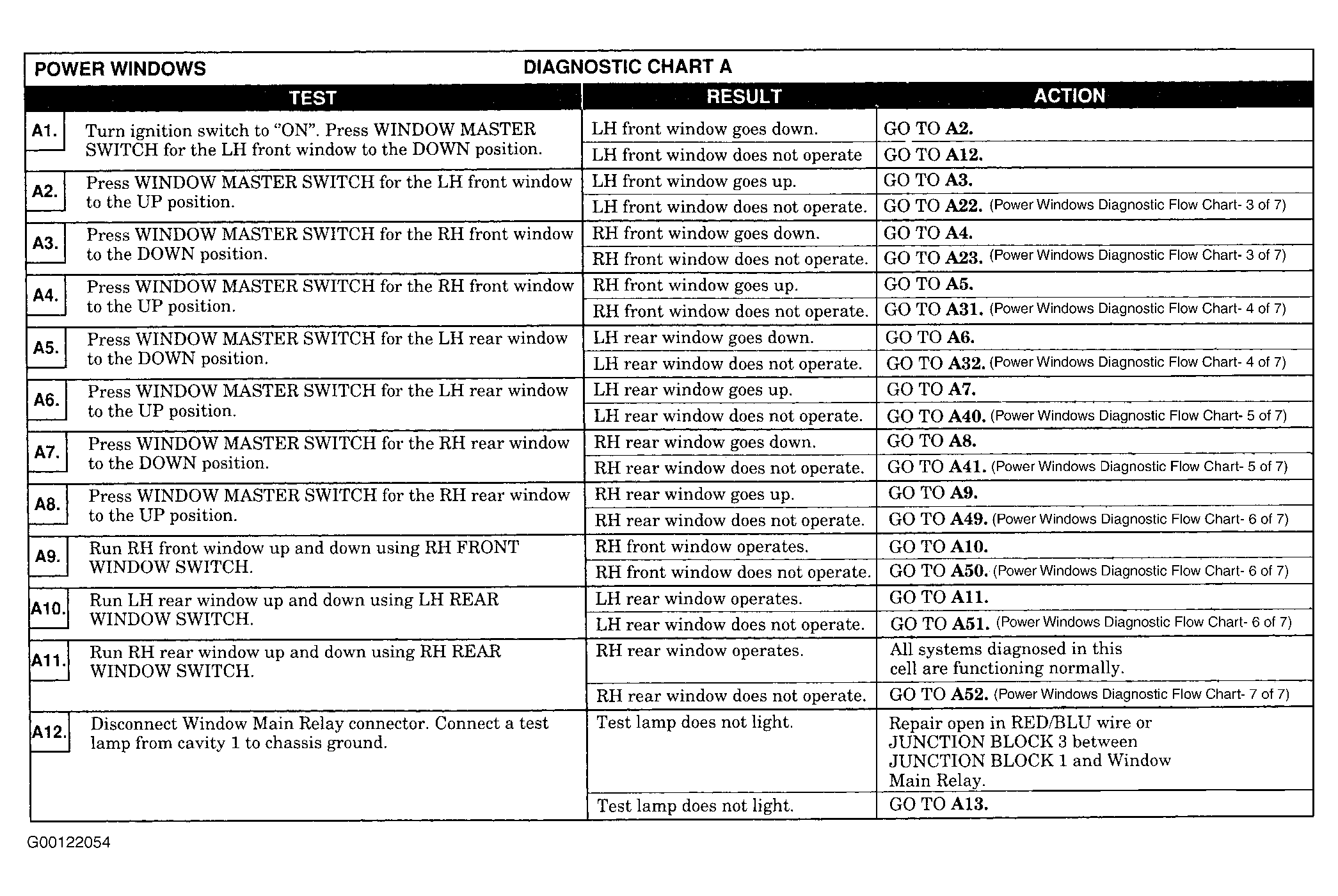

Fig 1: Power Windows Diagnostic Flow Chart (1 Of 7)

Courtesy of GENERAL MOTORS CORP.

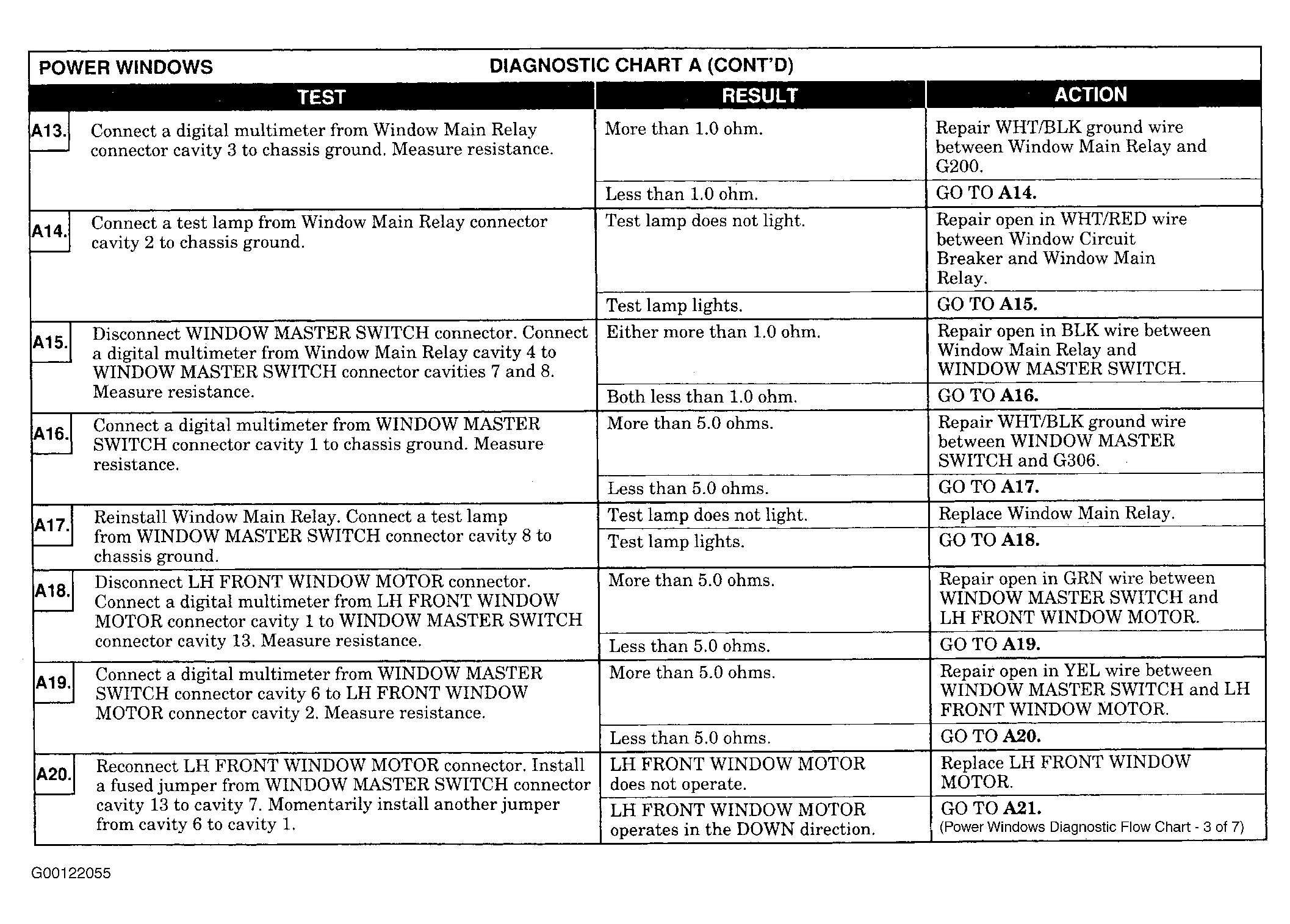

Fig 2: Power Windows Diagnostic Flow Chart (2 Of 7)

Courtesy of GENERAL MOTORS CORP.

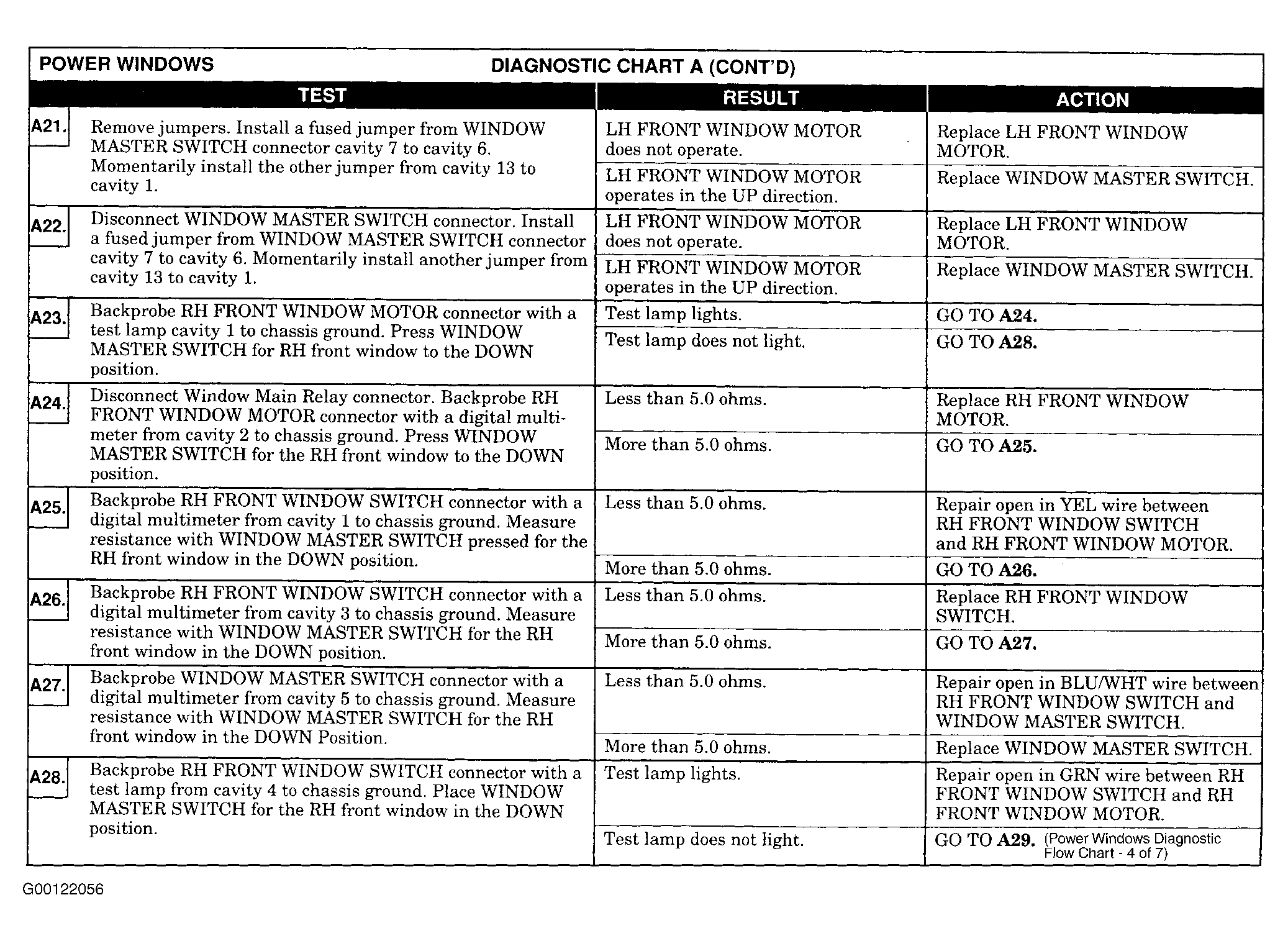

Fig 3: Power Windows Diagnostic Flow Chart (3 Of 7)

Courtesy of GENERAL MOTORS CORP.

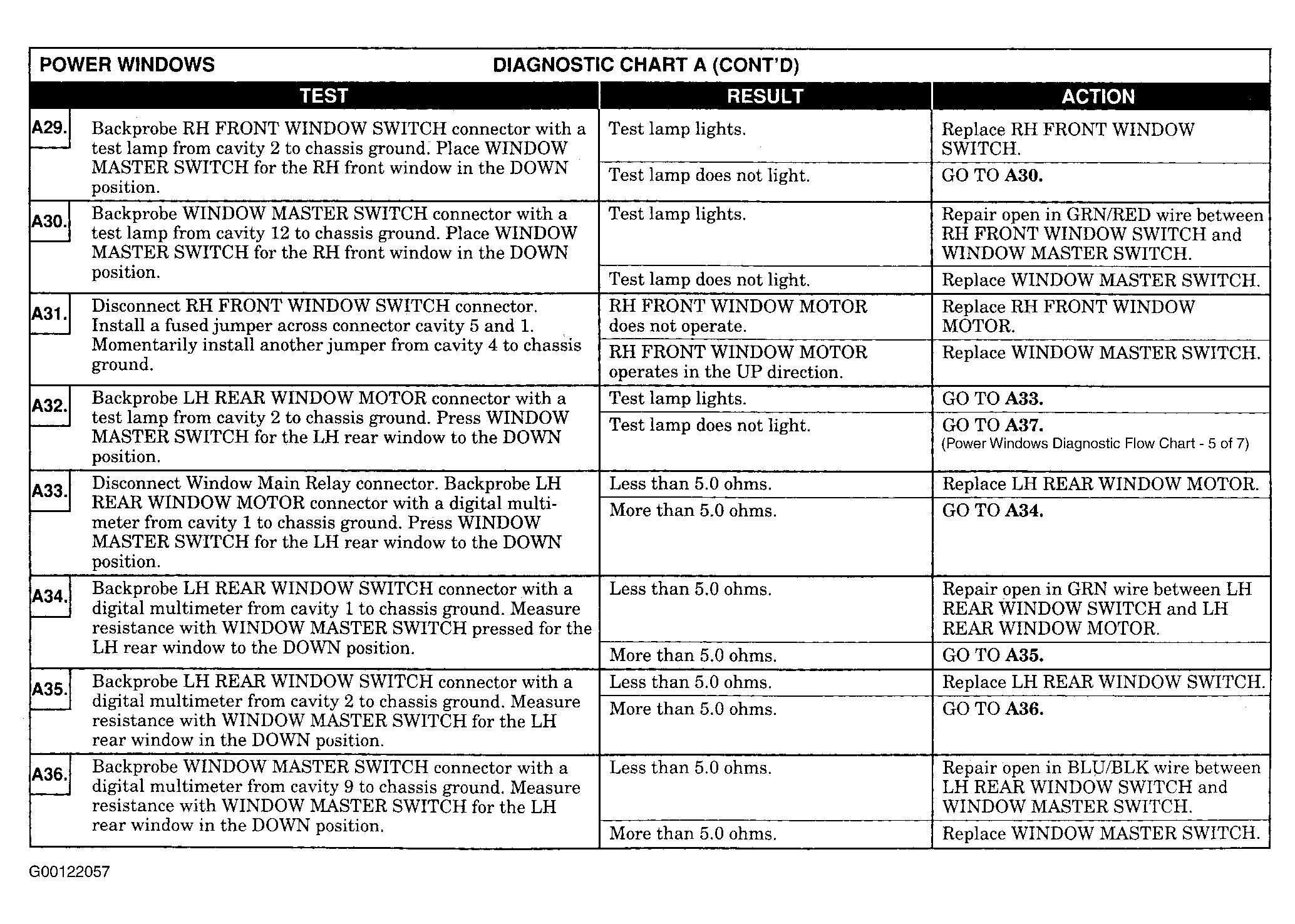

Fig 4: Power Windows Diagnostic Flow Chart (4 Of 7)

Courtesy of GENERAL MOTORS CORP.

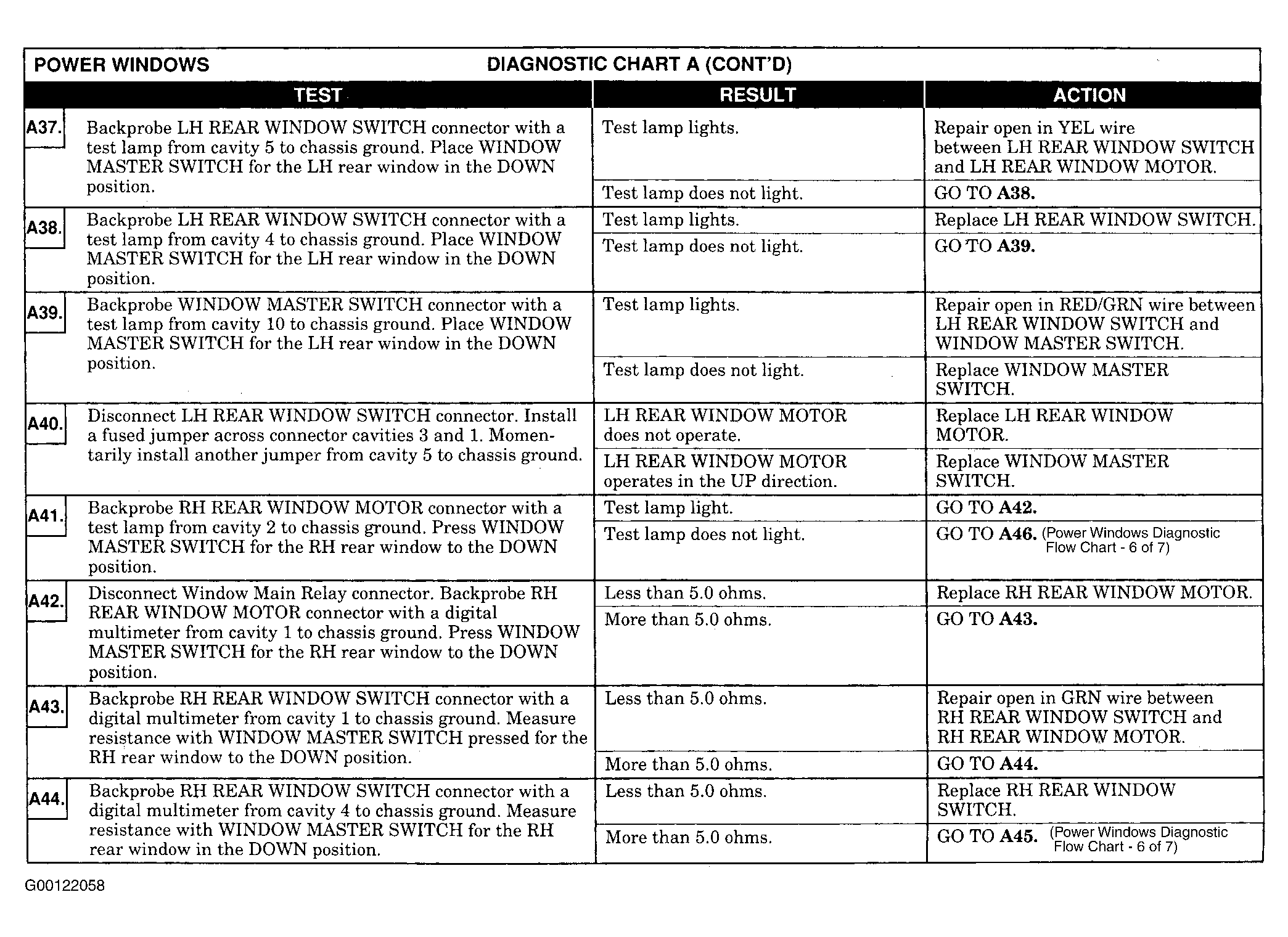

Fig 5: Power Windows Diagnostic Flow Chart (5 Of 7)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Power Windows Diagnostic Flow Chart (6 Of 7)

Courtesy of GENERAL MOTORS CORP.

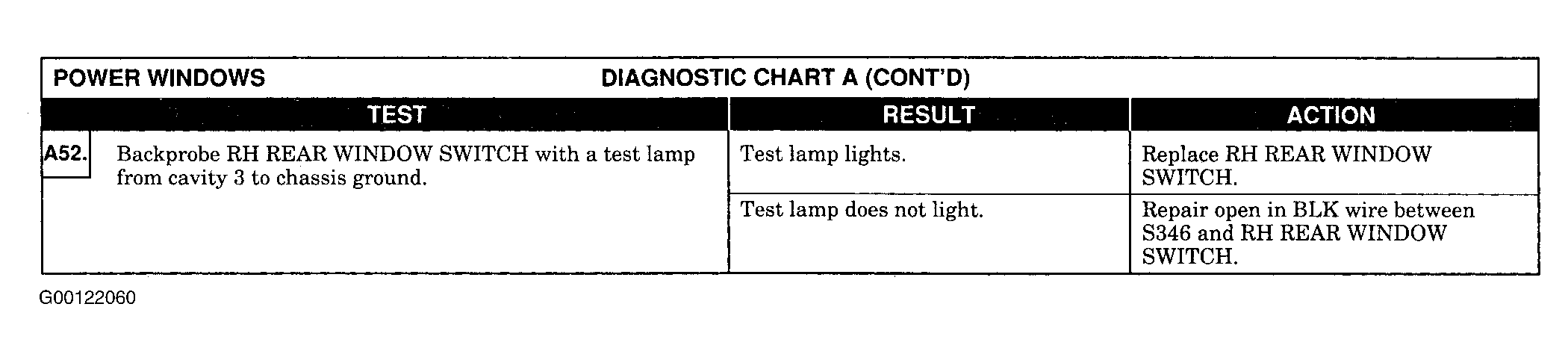

Fig 7: Power Windows Diagnostic Flow Chart (7 Of 7)

Courtesy of GENERAL MOTORS CORP.
