Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|

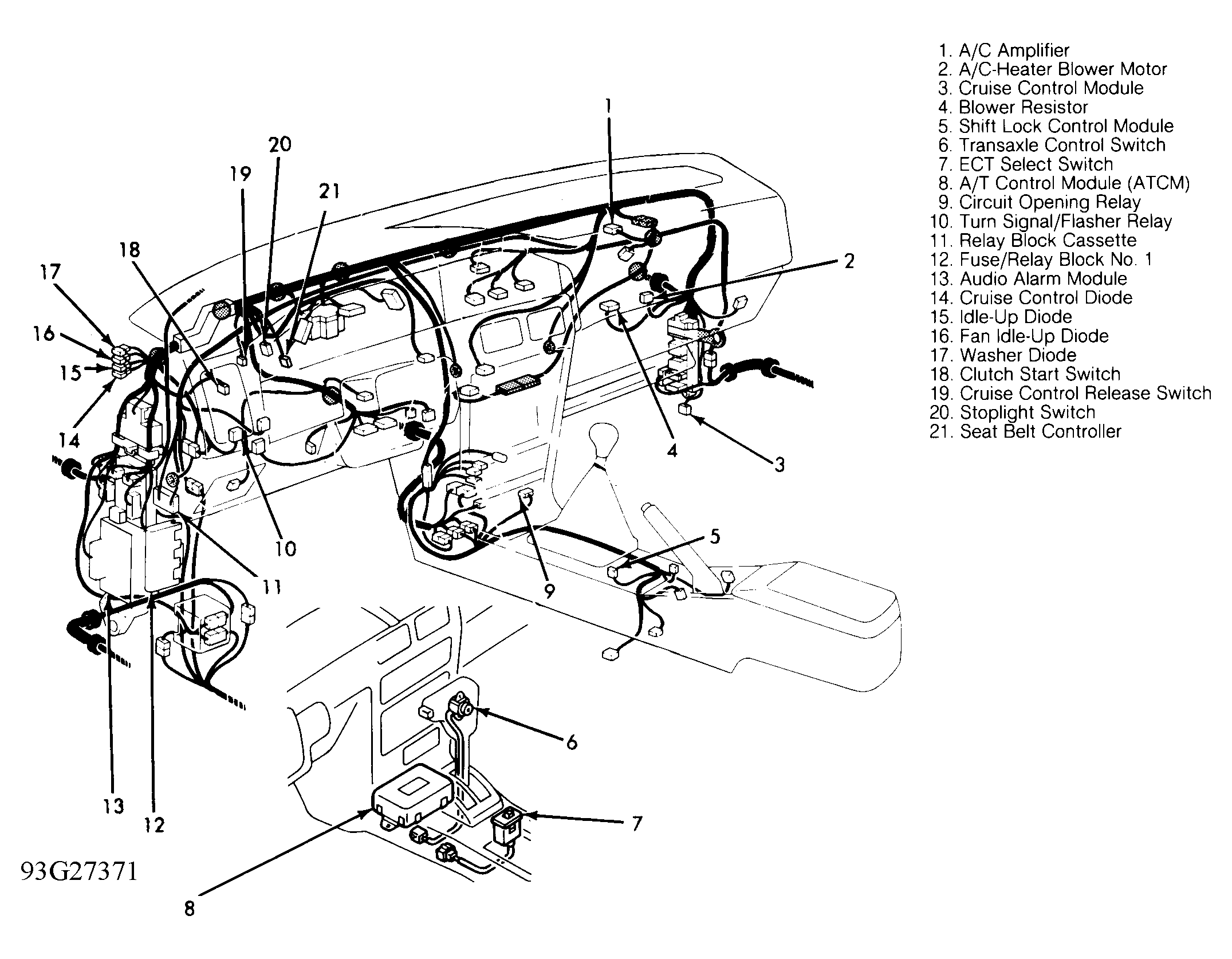

| A/T Control Module (ATCM) | ||
| Component Location (VIN 5-GSi) | Under gear selector console, at base of gear selector. See Figure . | |
| Instrument Panel Wiring | Under gear selector console, at base of gear selector. See Figure . | |
| Audio Alarm Module | On fuse/relay block No. 1. See Figure . | |
| Cruise Control Module | Behind right kick panel. See Figure . | |
| Electronic Control Module (ECM) | ||

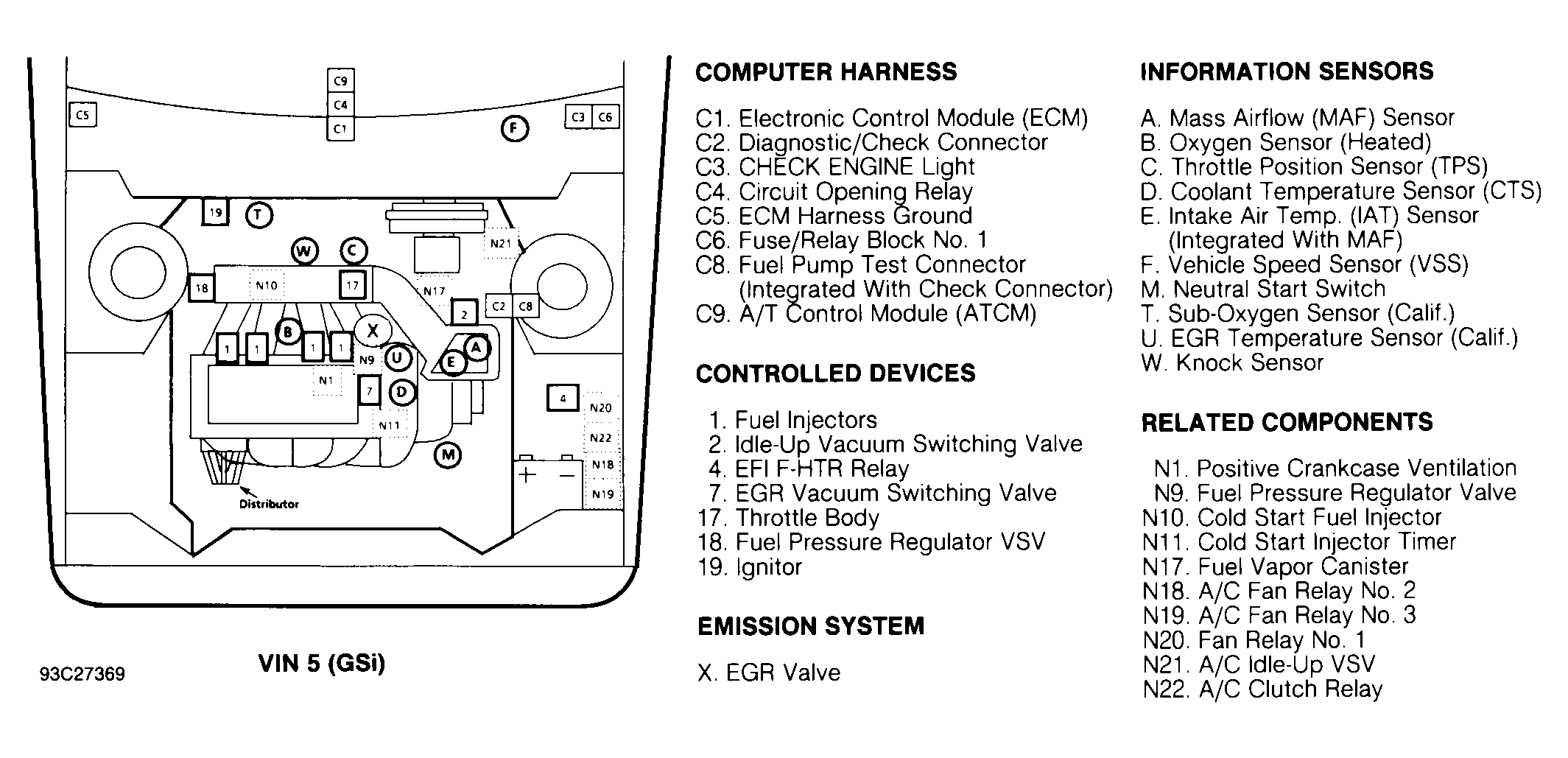

| Component Location (VIN 5-GSi) | At center of dash, under heater case. See Figure . | |

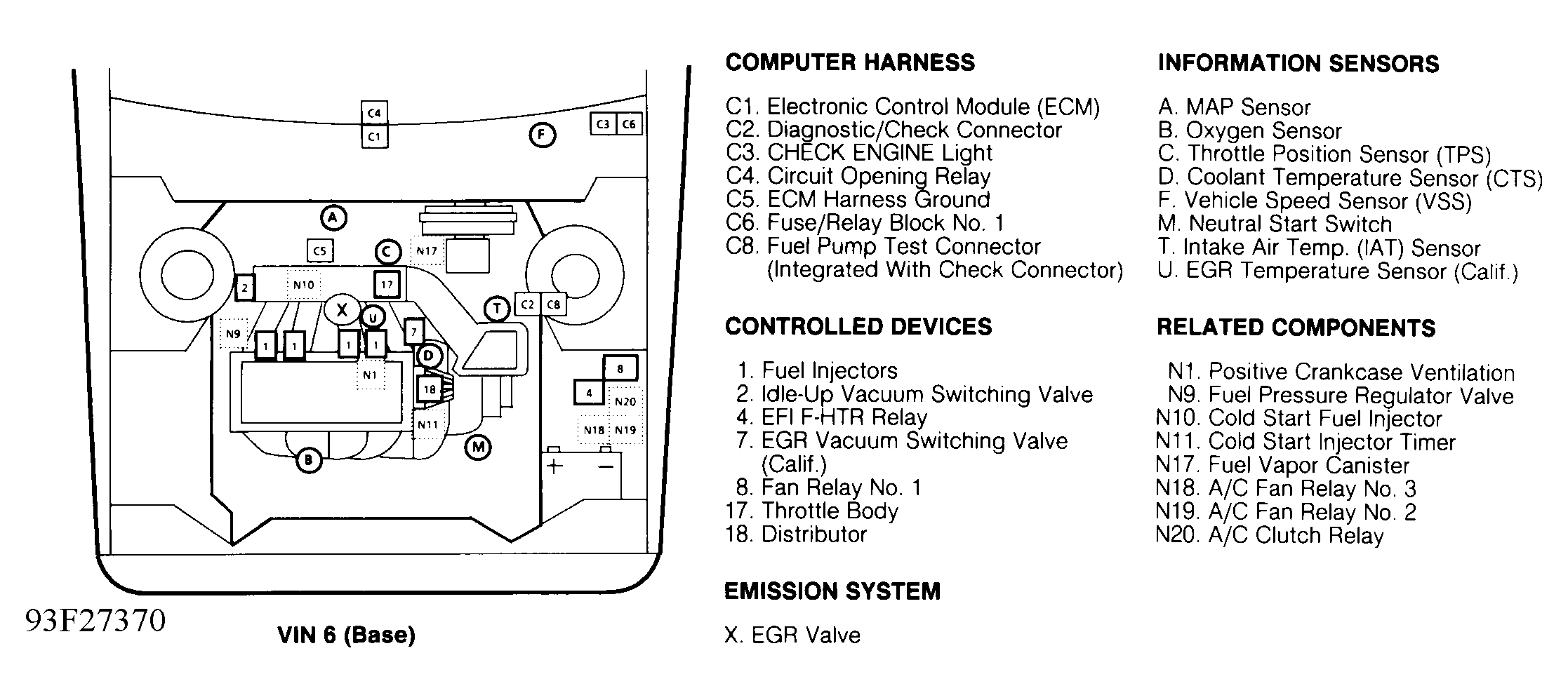

| Component Location (VIN 6-Base) | At center of dash, under heater case. See Figure . | |
| Seat Belt Controller | Under left side of dash, left of steering column. See Figure . | |
| Shift Lock Control Module | Under center console, at base of parking brake lever. See Figure . | |
