Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location | |
|---|---|---|
| A/C Amplifier | Behind right side of dash, on evaporator. See Figure . | |
| A/C-Heater Blower Resistor | At bottom of A/C-heater blower motor housing. See Figure . | |
| Daytime Running Light Resistor | Inside right front fender, above wheel well. | |
| Diagnostic/Check Connectors | ||
| ABS | Under left side of dash, near fuse block. | |
| ALDL | Under left side of dash, near fuse block. See Figure . | |
| Duty Check Coupler | On right side of engine compartment, near fusible link box. See Figure . | |
| Evaporator Thermistor | Behind right side of dash, in evaporator housing. See Figure . | |

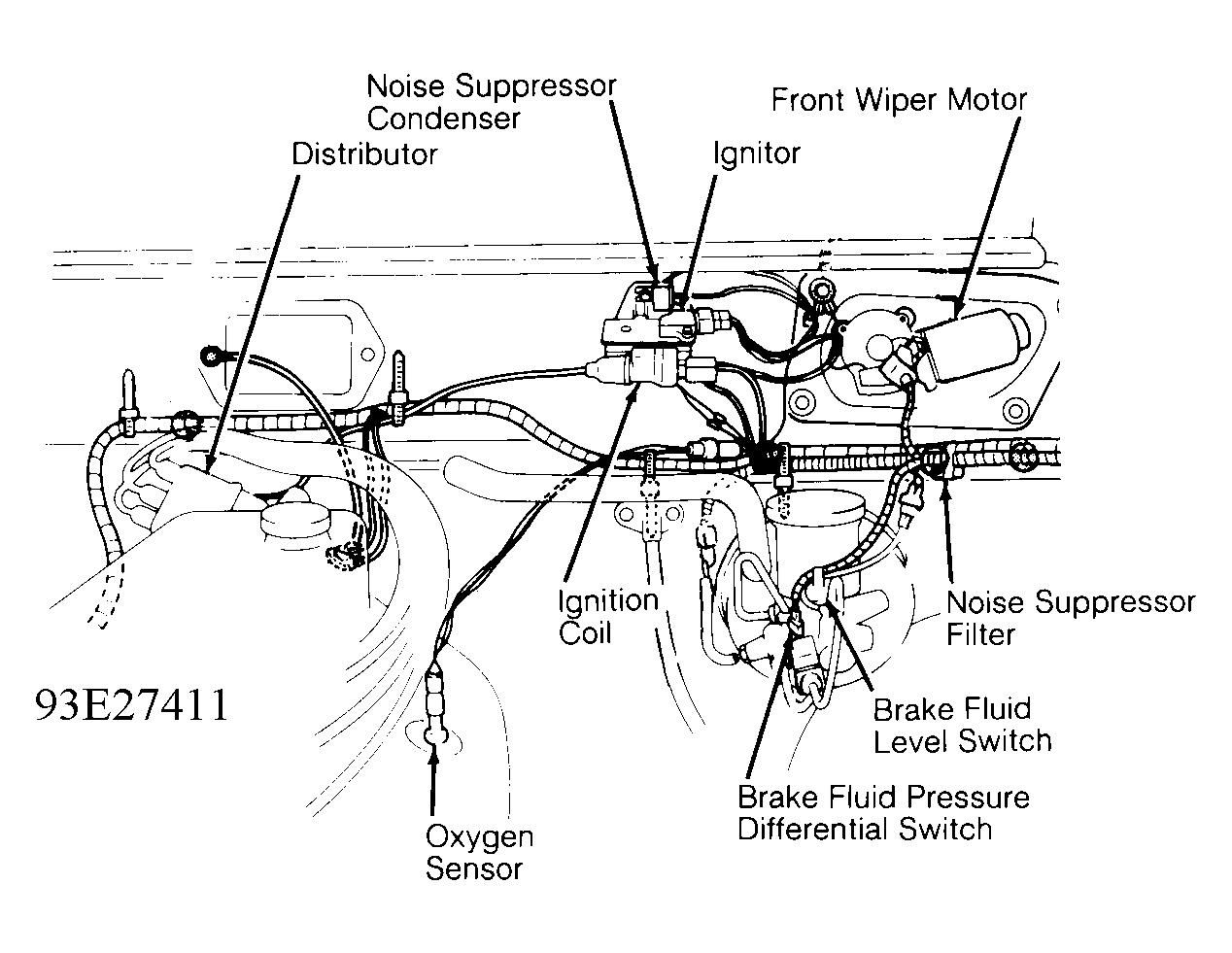

| Noise Suppressor Condenser | On ignition coil bracket. See Figure . | |
| Noise Suppressor Filter | On left side of firewall, below wiper motor. See Figure . | |
| Shift Lock Diode (A/T) | Behind dash, left of steering column. | |
