Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location | |
|---|---|---|
| A/C Dual Pressure Switch | At right front of engine compartment, on receiver/drier. See Figure . | |
| Back-Up Light Switch | On top front of transmission. | |
| Brake Fluid Level Switch | On top of brake fluid reservoir. See Figure . | |
| Brake Fluid Pressure Differential Switch | On left rear of engine compartment, near strut tower. See Figure . | |
| CHECK ENGINE Cancel Switch (Fed.) | ||
| Check Engine Cancel Switch Location | Behind dash, attached to left radio speaker. See Figure . | |

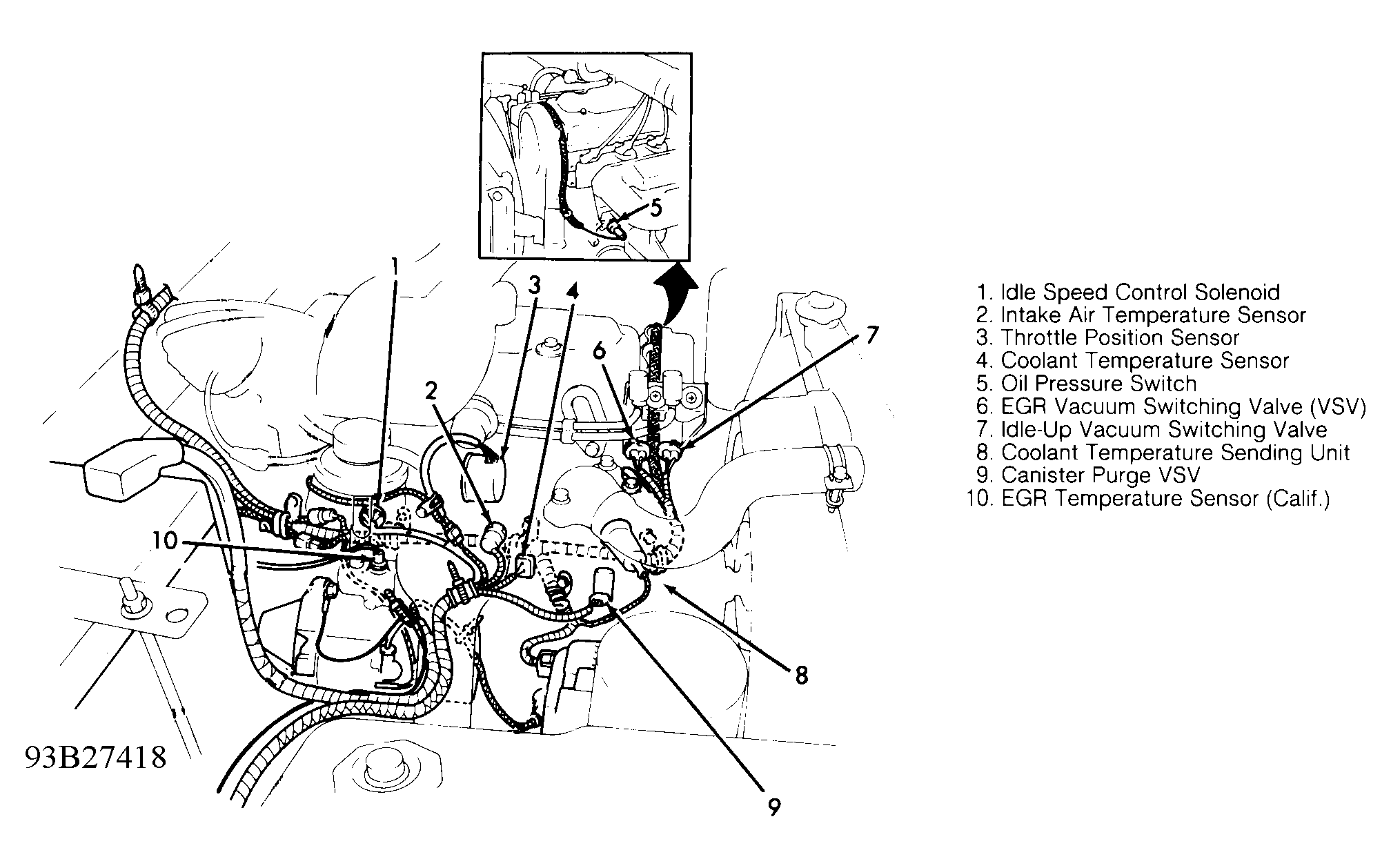

| View of Engine Compartment | Behind dash, attached to left radio speaker. See Figure . | |
| Clutch Start Switch (M/T) | On clutch pedal bracket. See Figure . | |
| Coolant High Temperature Switch | On right side of intake manifold, near thermostat housing. See Figure . | |
| Fluid Pressure Switch (A/T) | In transmission, attached to valve body. See Figure . | |
| Idle Switch (M/T) | Integral with throttle position sensor. | |
| Oil Pressure Switch | On side of engine block, above oil filter. See Figure . | |
| Parking Brake Switch | On base of parking brake lever. | |
| Power Steering Pressure Switch | ||
| Power Steering Pump | On power steering pump assembly. See Figure . | |
| View of Engine Compartment | On power steering pump assembly. See Figure . | |
| Rear Window Defogger Switch (Optional) | On upper left side of dash. See Figure . | |
| Rear Wiper/Washer Switch (Optional) | On upper left side of dash. See Figure . | |
| Seat Belt Switch | On base of passenger-side seat belt. | |
| Stoplight Switch | On brake pedal bracket. See Figure . | |
| Transmission Position Switch | On right side of transmission. See Figure . | |
| 4WD Switch | On top rear of transmission. | |
