Diagnostic Aids

On vehicles with Federal emissions, ensure CHECK ENGINE light is reset after maintenance service has been completed.

Fig 1: Chart A-2 Schematic, CHECK ENGINE Light On At All Times Will Not Flash Code 12

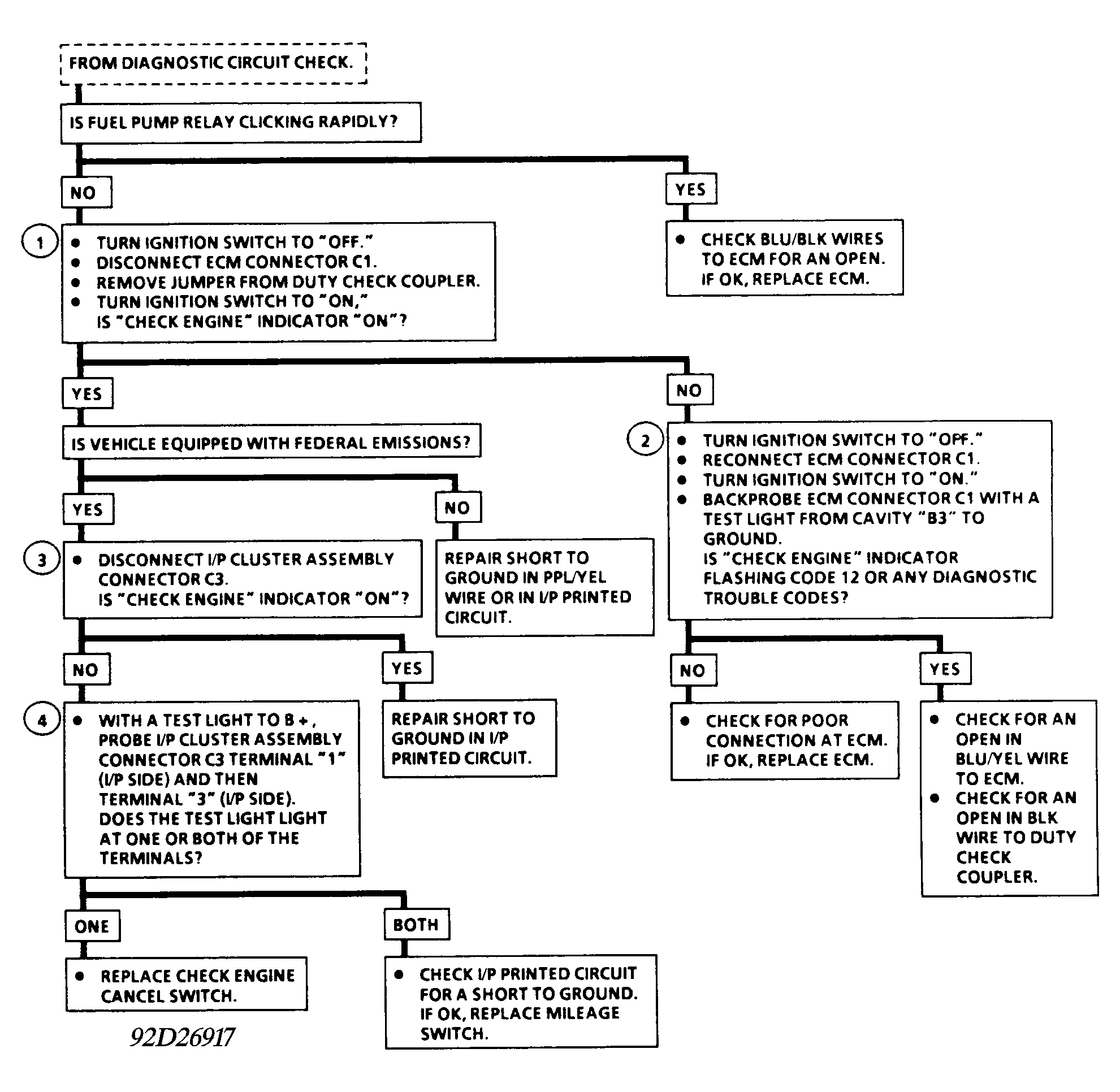

Fig 2: Chart A-2 Flow Chart, CHECK ENGINE Light On At All Times Will Not Flash Code 12
