Repair and Diagnosis: Transmission: Clutches: Description

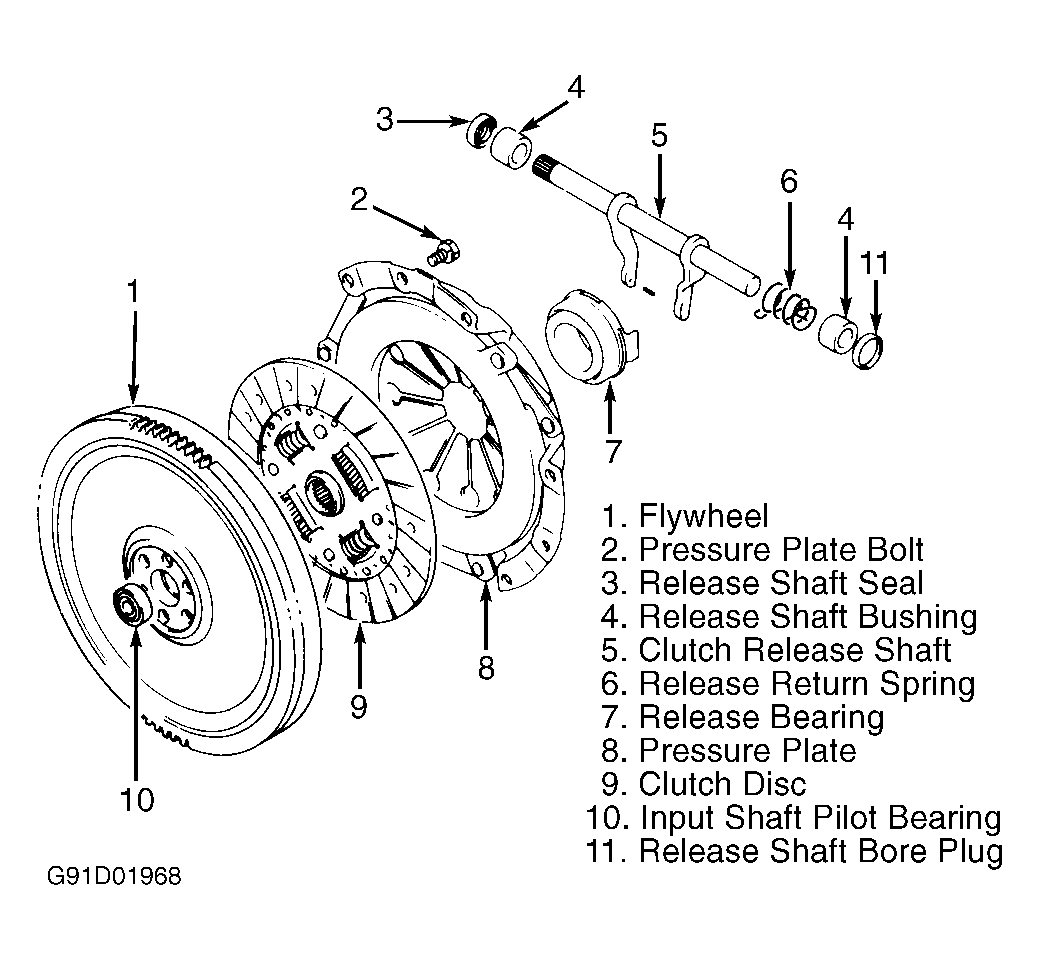

Clutch is a single disc type. A diaphragm spring is used to engage pressure plate. Clutch is mechanically controlled by the clutch pedal, clutch cable, return spring, release fork and prelubricated release bearing. See Fig 1 . A clutch start switch is used to disable starter if clutch pedal is not fully depressed.
