Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | ||
|---|---|---|---|

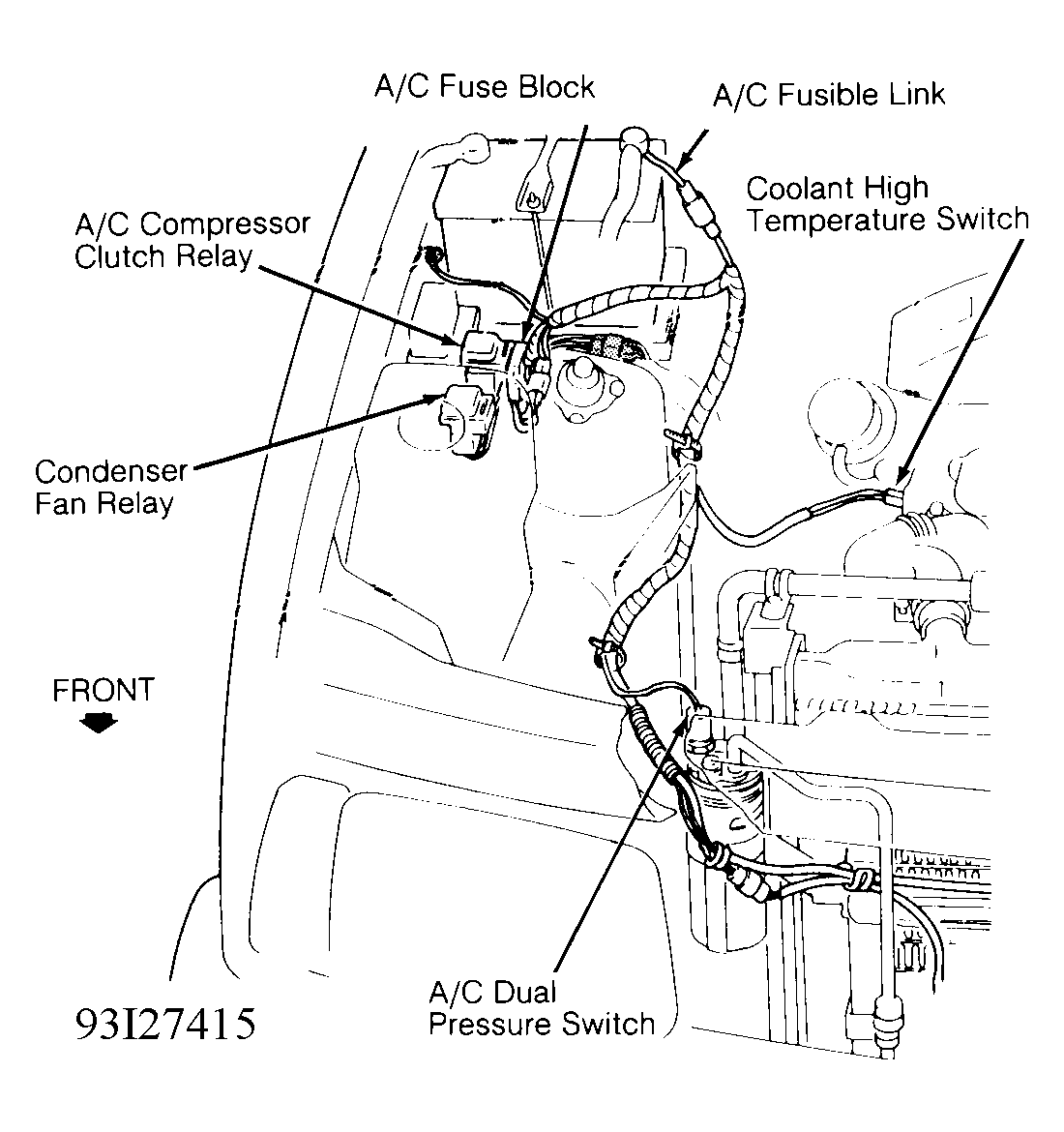

| A/C Fusible Link | On right fenderwell, attached to A/C compressor clutch relay. See Figure . | ||
| Fuse Blocks | |||
| A/C | At positive battery post. See Figure . | ||
| Passenger Compartment | |||

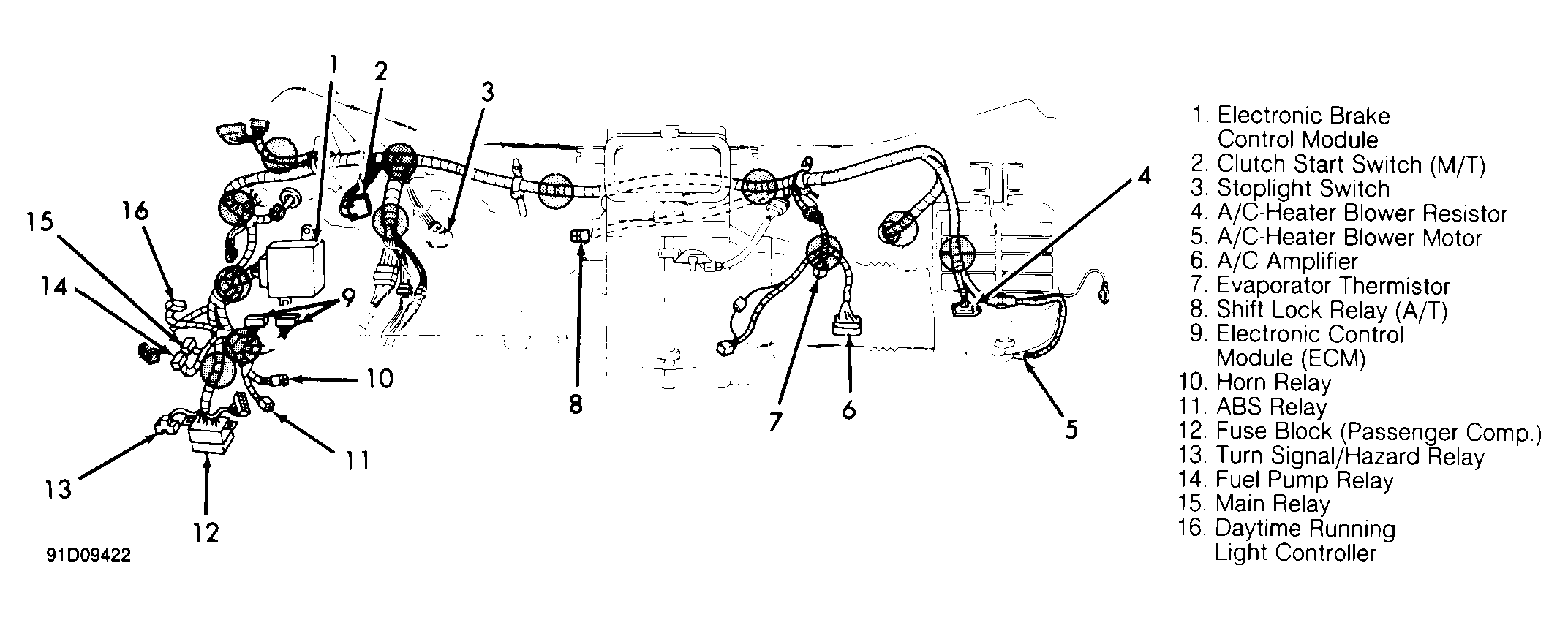

| Wiring Behind Dash | Behind dash, left of steering column. See Figure . | ||
| View of Engine Compartment | Behind dash, left of steering column. See Figure . | ||

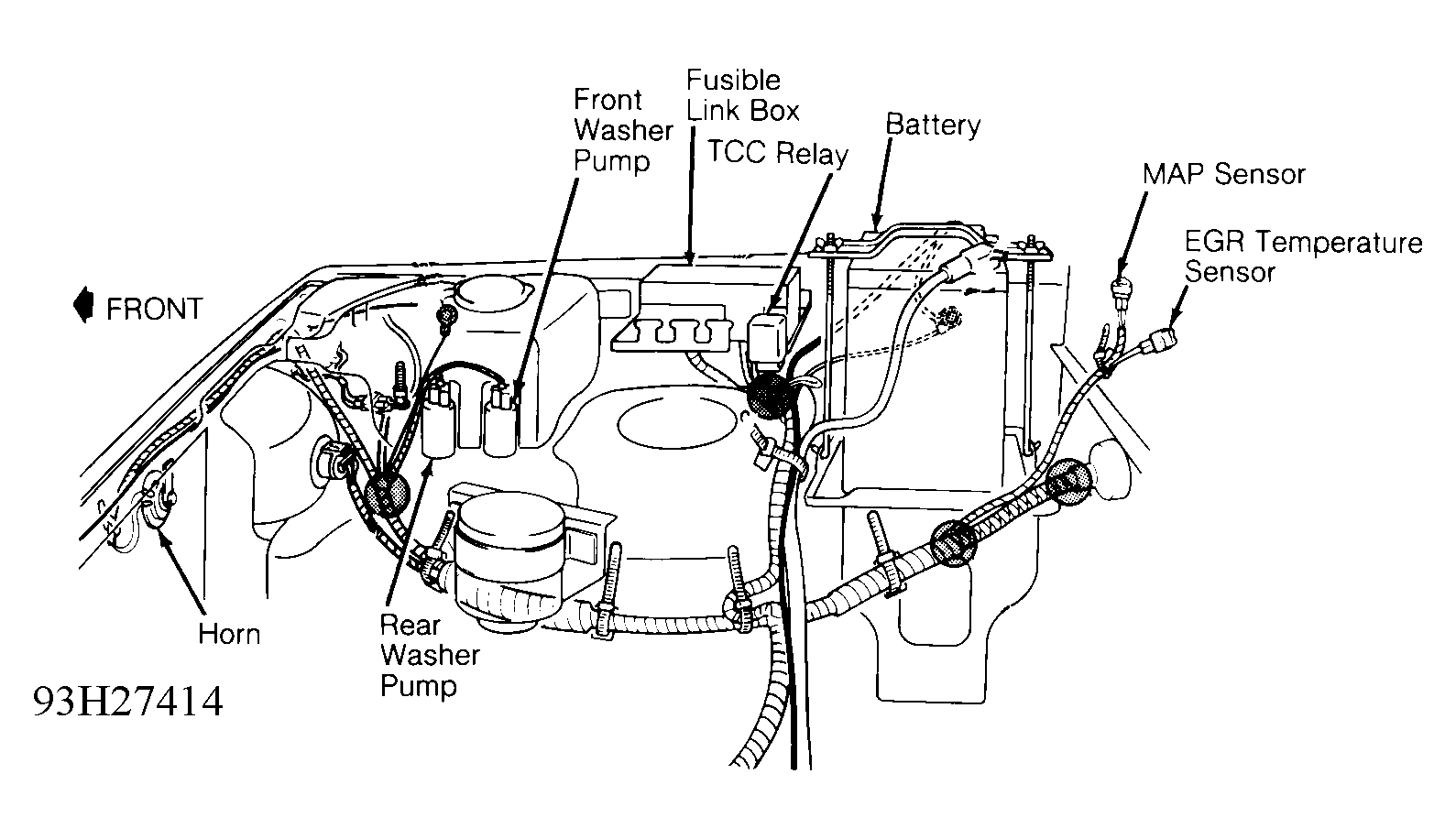

| Fusible Link Box | On right side of engine compartment, in front of battery. See Figure . | ||
