Ignition Coil Resistance

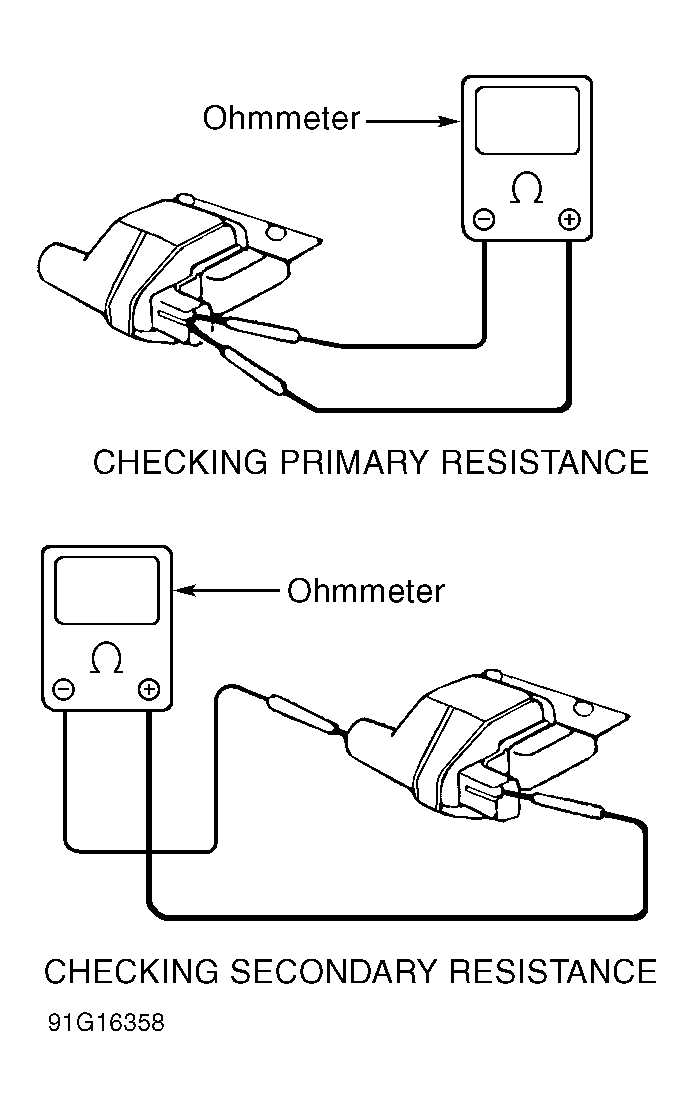

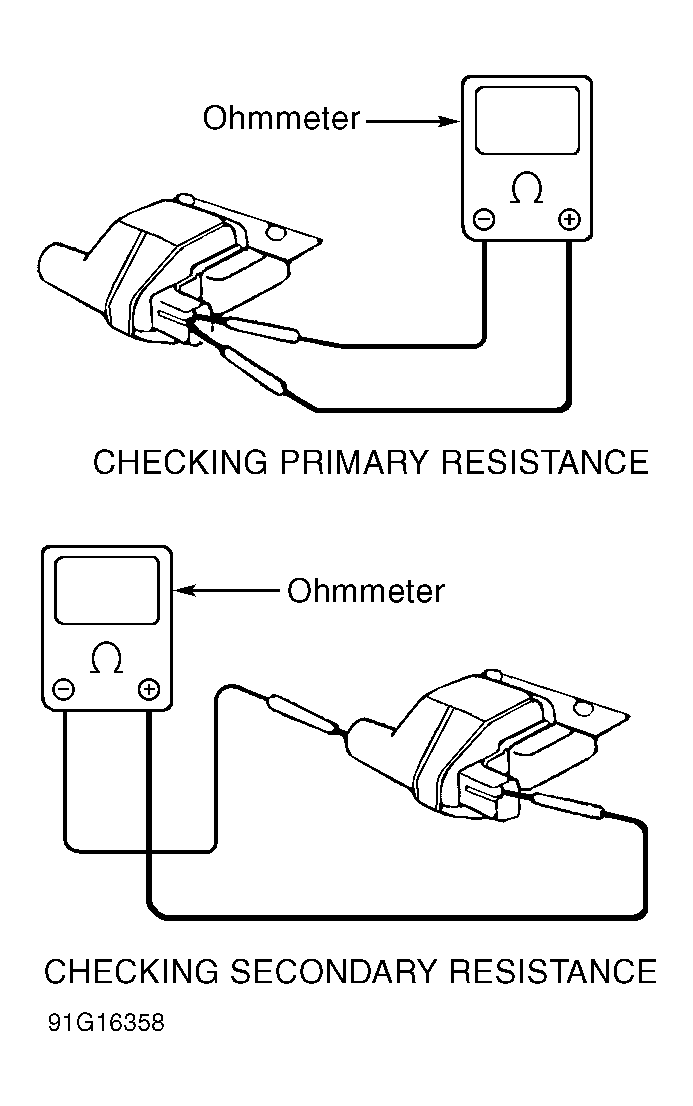

Disconnect electrical connector and ignition coil wire from ignition coil. Using ohmmeter, measure primary and secondary resistance. See Fig 1 . Replace ignition coil if readings are not within specification. See IGNITION COIL RESISTANCE table.
IGNITION COIL RESISTANCE
| Application | Primary | Secondary |
|---|---|---|
| Tracker | 0.72-0.88 | 10,200-14,000 |
