Chart #7 Left Window Does Not Close With Either Left Window Switch Pulled Up

If left window does not close with either left window switch pulled up, see Fig 1 .

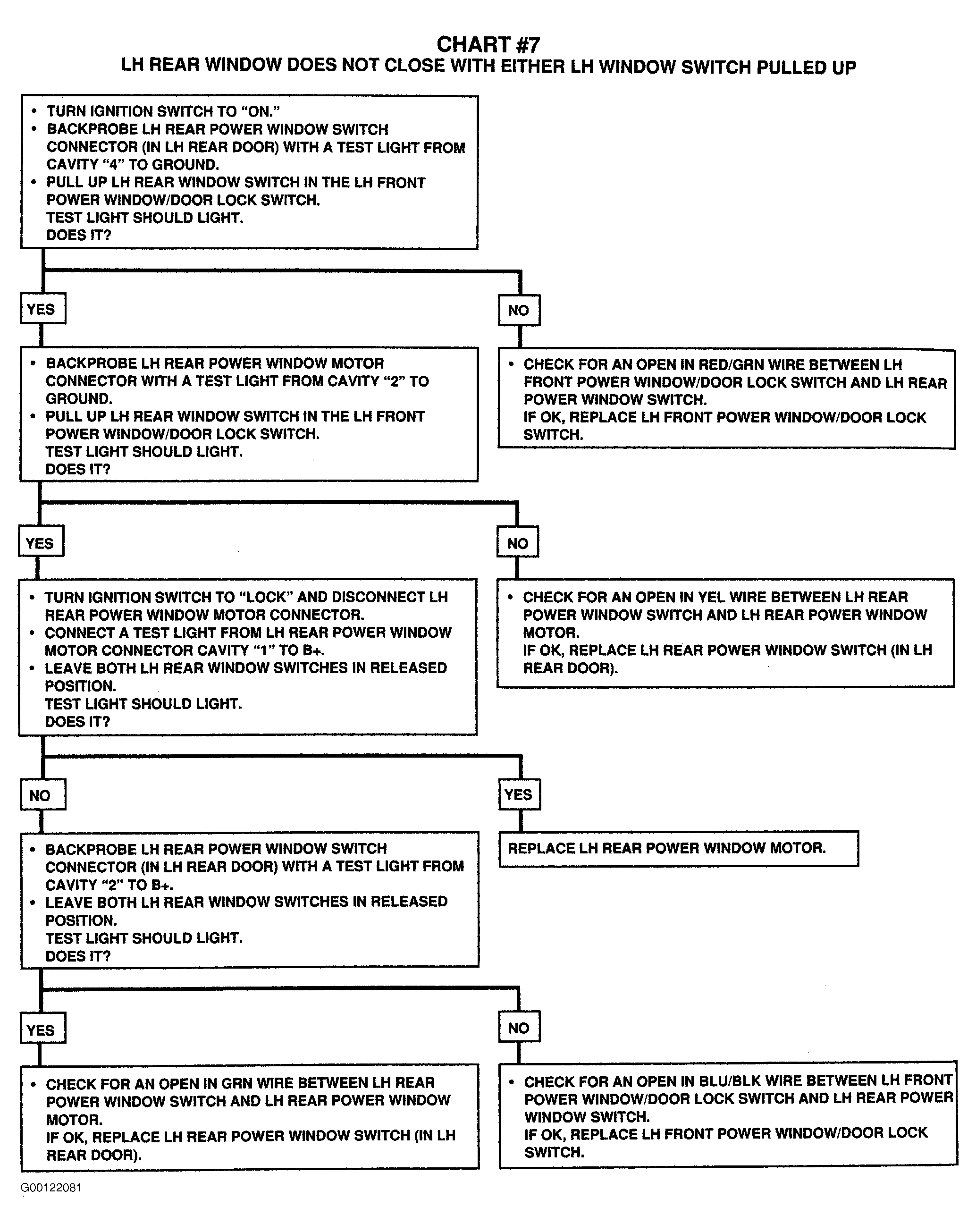

Fig 1: Chart #7: Left Window Does Not Close With Either Left Window Switch Pulled Up
G00122081Courtesy of GENERAL MOTORS CORP.
