Wiring Diagrams

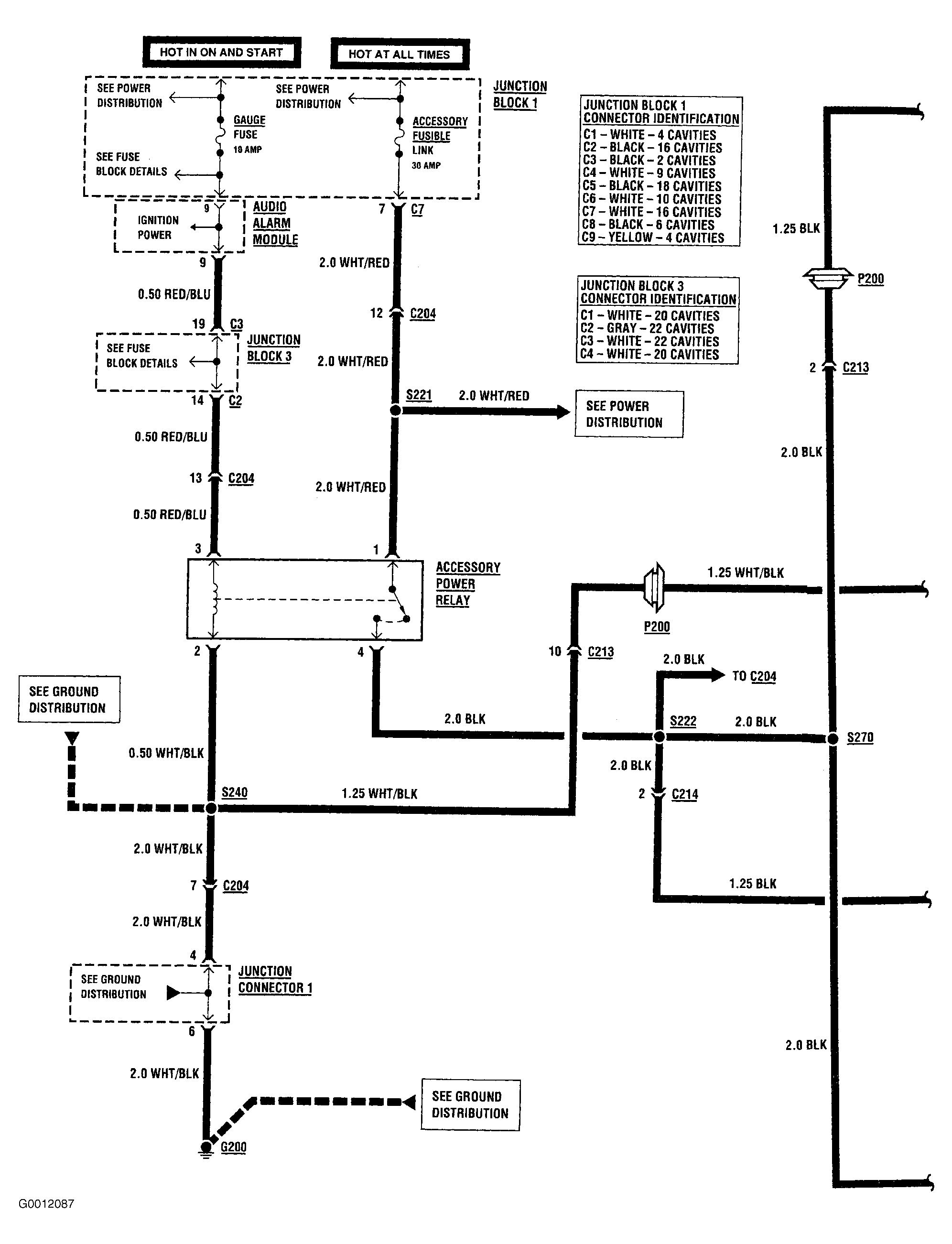

Fig 1: Wiring Diagram (1 of 2)
G00122087Courtesy of GENERAL MOTORS CORP.

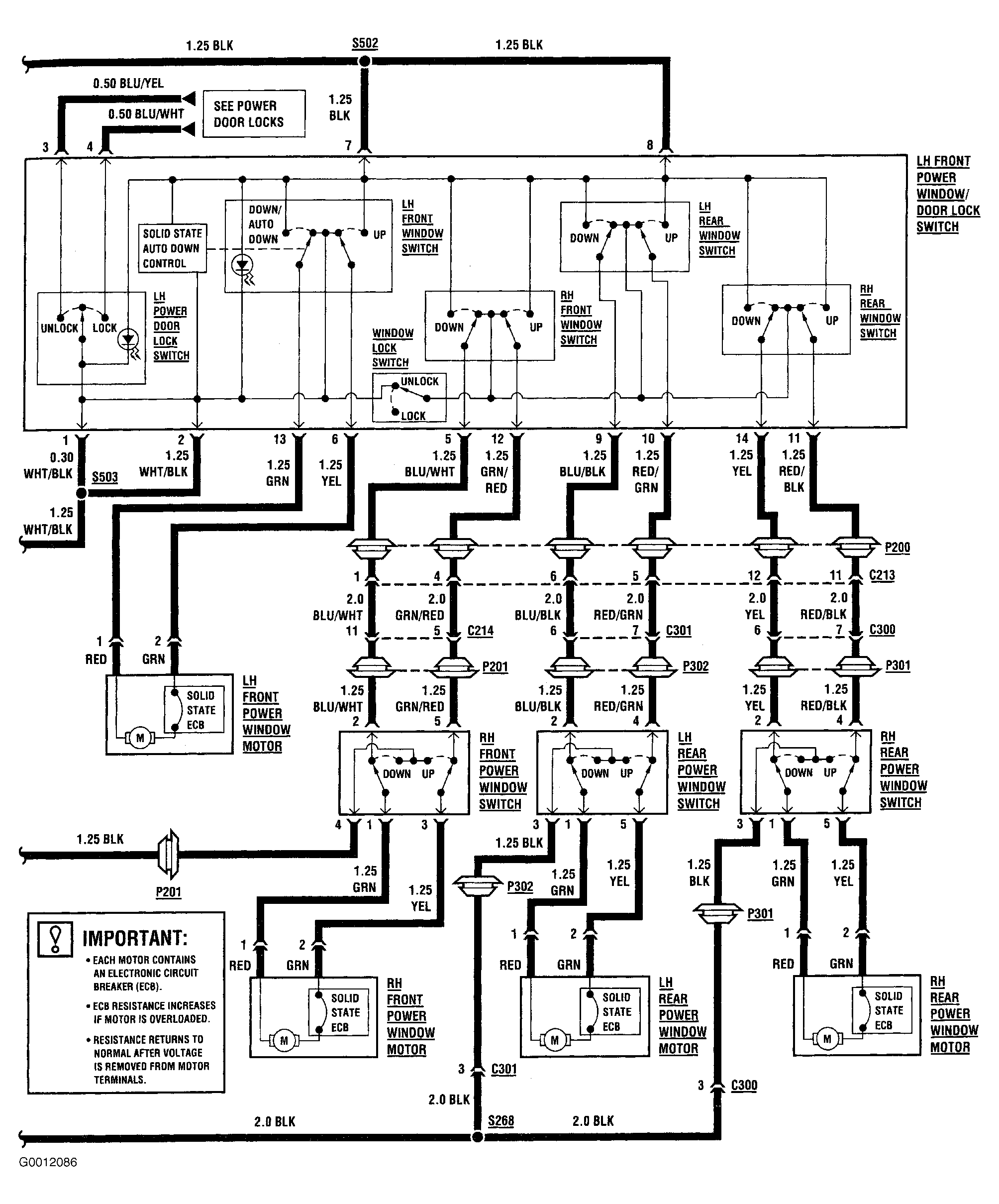

Fig 2: Wiring Diagram (2 of 2)
G00122086Courtesy of GENERAL MOTORS CORP.
