Chart #2 Left Window Does Not Open

If left window does not open, See Fig 1 .

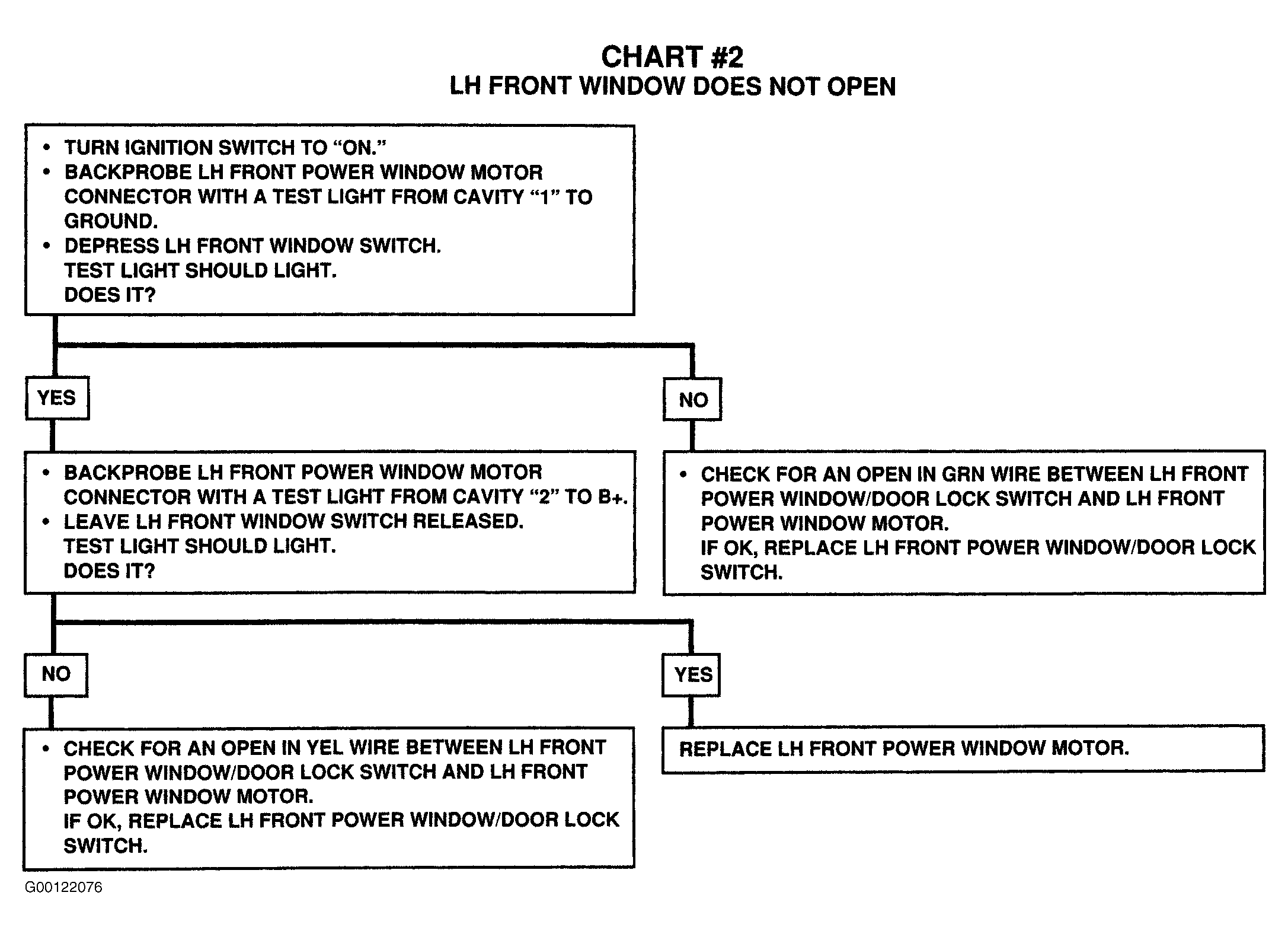

Fig 1: Chart #2: Left Window Does Not Open
G00122076Courtesy of GENERAL MOTORS CORP.
