Throttle Position Switch (PRIZM)

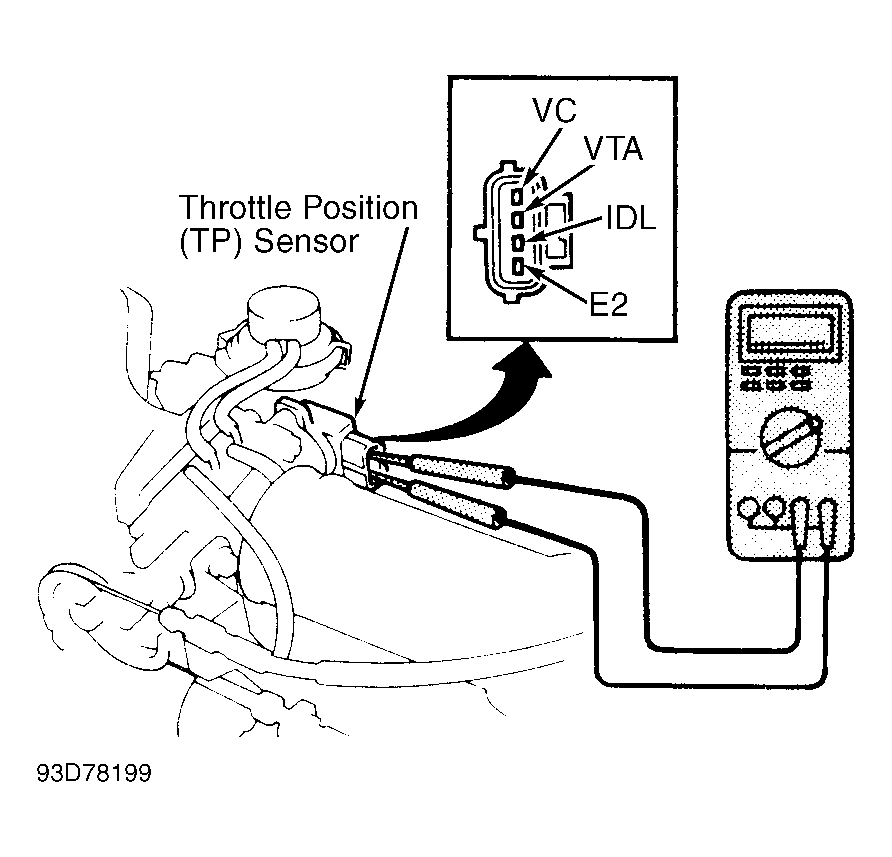

- With battery disconnected, disconnect switch electrical connection. Note terminal identification. See Figure
. Install proper thickness feeler gauge between stop screw and lever.
- Using ohmmeter, check continuity between designated terminals. Adjust or replace switch if it is not within specification. See THROTTLE POSITION SWITCH CONTINUITY (PRIZM)
table.
THROTTLE POSITION SWITCH CONTINUITY (PRIZM)
| Lever & Stop Screw Clearance |
Between Terminals |
Resistance |
| 0" (0 mm) |
VTA & E2 |
0.2-6.0 k/Ohms |
| .016" (.40 mm) |
IDL & E2 |
2.3 k/Ohms Or Less |
| .035" (.90 mm) |
IDL & E2 |
Infinity |
| WOT |
VTA & E2 |
3.3-10.0 k/Ohms |
| WOT |
VC & E2 |
4.0-8.5 k/Ohms |
