Diagnostic Aids

If engine has been allowed to cool to an ambient temperature (overnight), coolant temperature and intake air temperature can be checked with a scan tester and should have similar readings.

Code 23 will set if Blue/Black wire or Black wire is open. If code is intermittent, see TESTS W/O CODES article in this section.

Fig 1: Code 23 - Schematic (All Models) IAT Sensor Circuit, High/Low Temperature Indicated

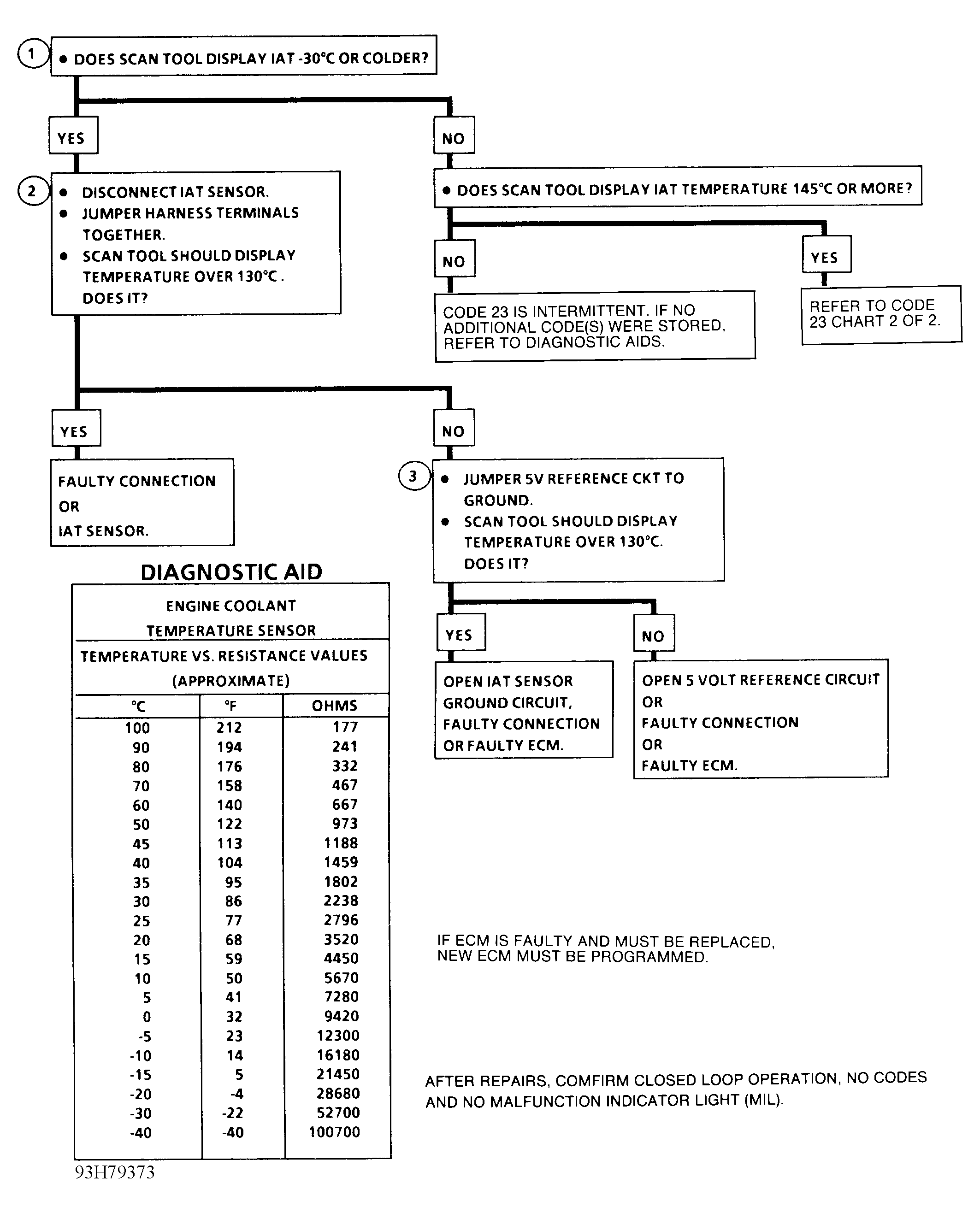

Fig 2: Code 23 - Flow Chart (1 Of 2) (All Models) IAT Sensor Circuit, High/Low Temperature Indicated

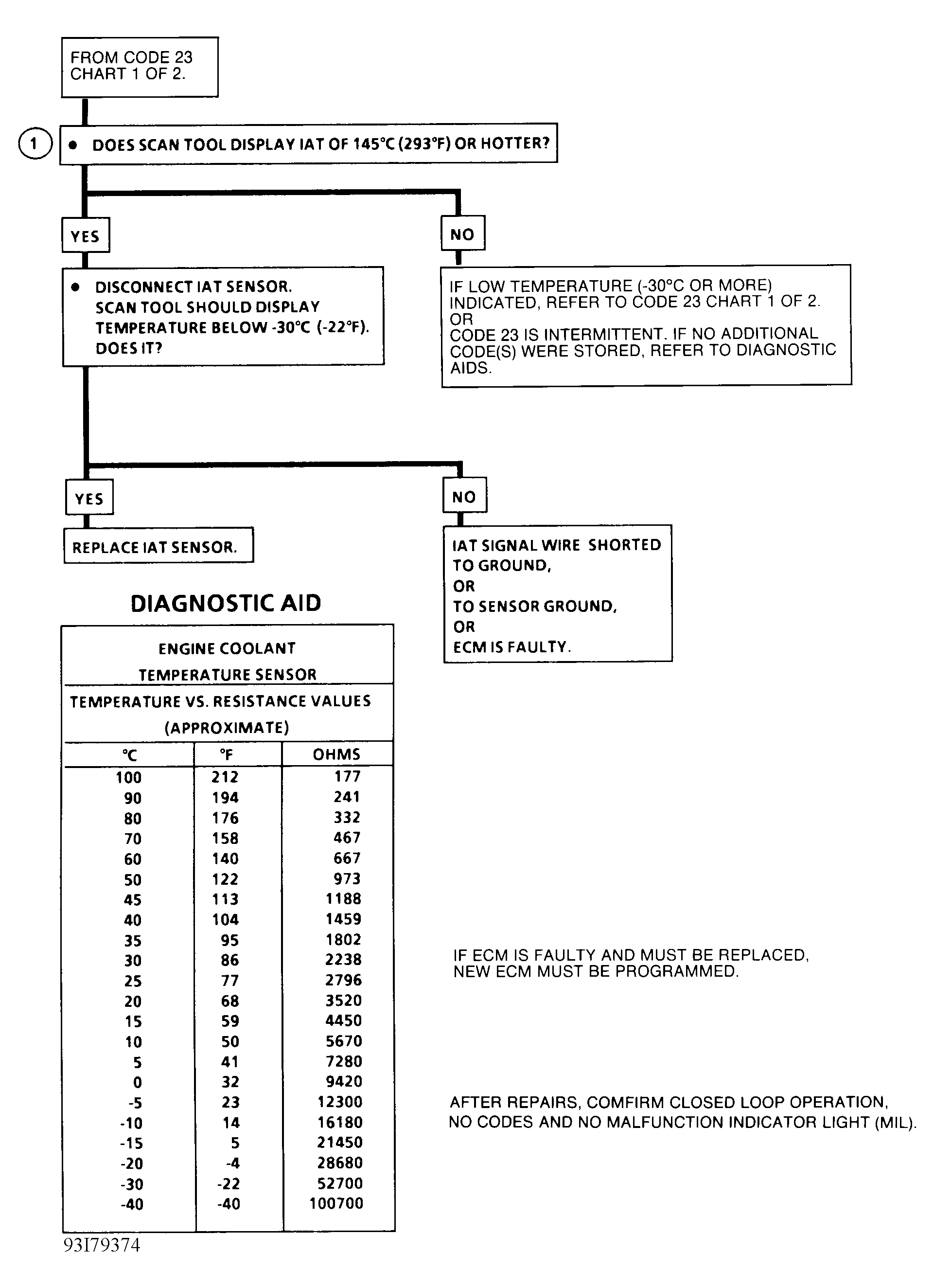

Fig 3: Code 23 - Flow Chart (2 Of 2) (All Models) IAT Sensor Circuit, High/Low Temperature Indicated
