Repair and Diagnosis: Electrical: Starter: Overhaul

Overhaul information is not available. Refer to the figures for disassembly and reassembly reference. See Fig 1 and Fig 2.

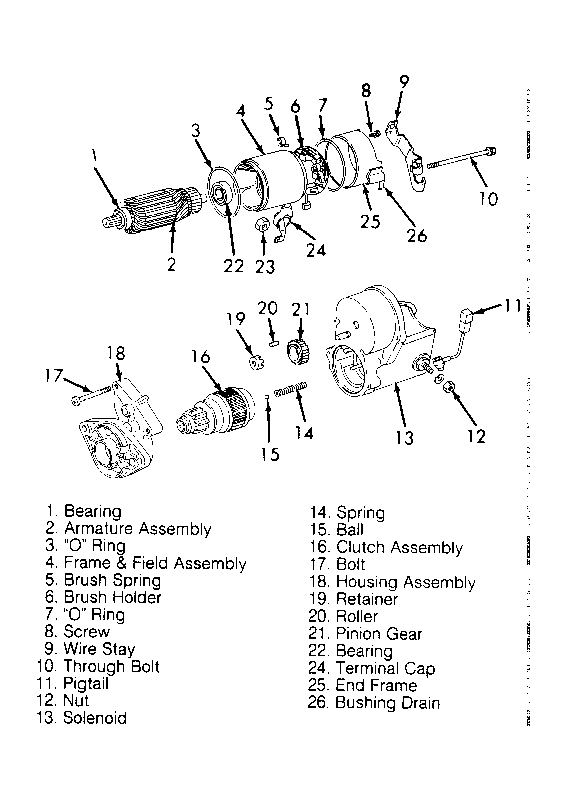

Fig 1: Exploded View Of Starter (Storm A/T & Storm GSi)

Courtesy of GENERAL MOTORS CORP.

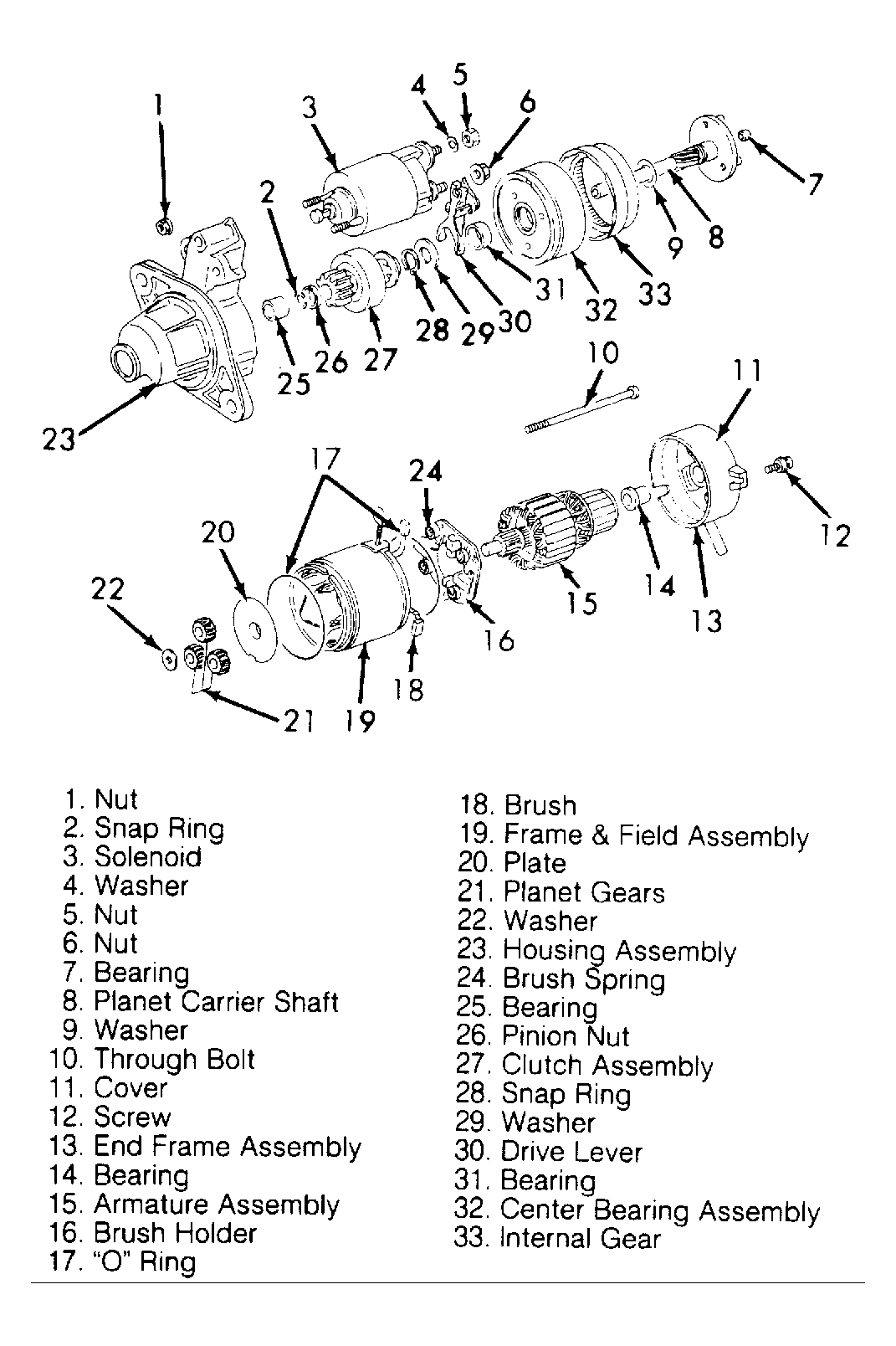

Fig 2: Exploded View Of Starter (Storm M/T)

Courtesy of GENERAL MOTORS CORP.
