Pick-Up Coil/Crank Angle Sensor

Measure pick-up coil/crank angle sensor air gap. If gap is not .008-.016" (.20-.40 mm), adjust or replace distributor. Check pick-up coil/crank angle sensor resistance. See I - SYS/COMP TESTS article in this section.

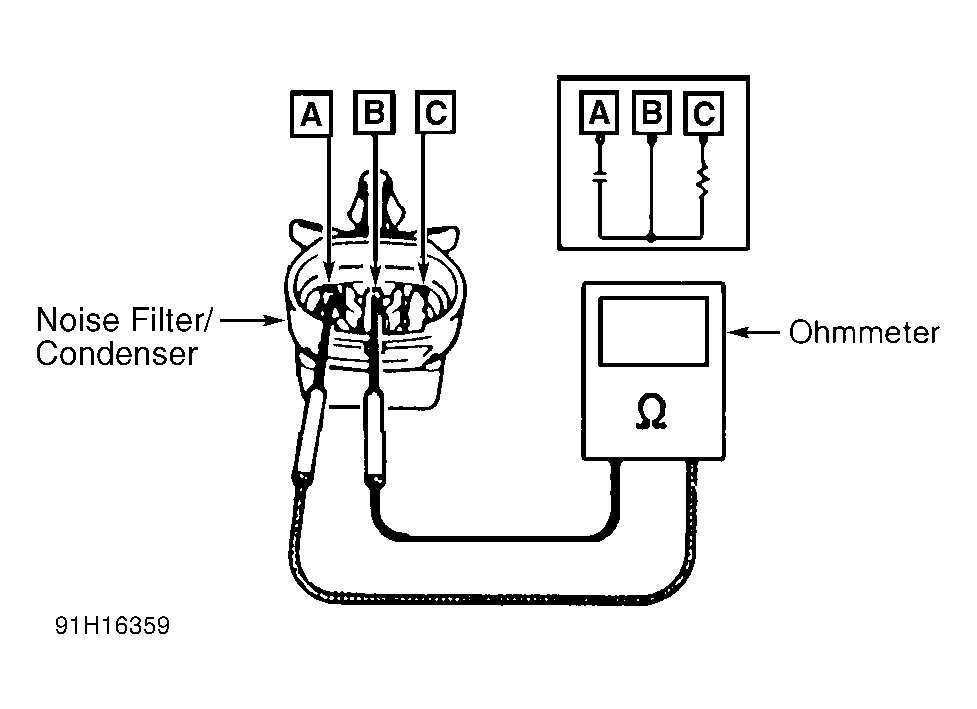

Fig 1: Noise/Filter Condenser Connector Terminal ID

Courtesy of GENERAL MOTORS CORP.
