Vehicle Speed Sensor

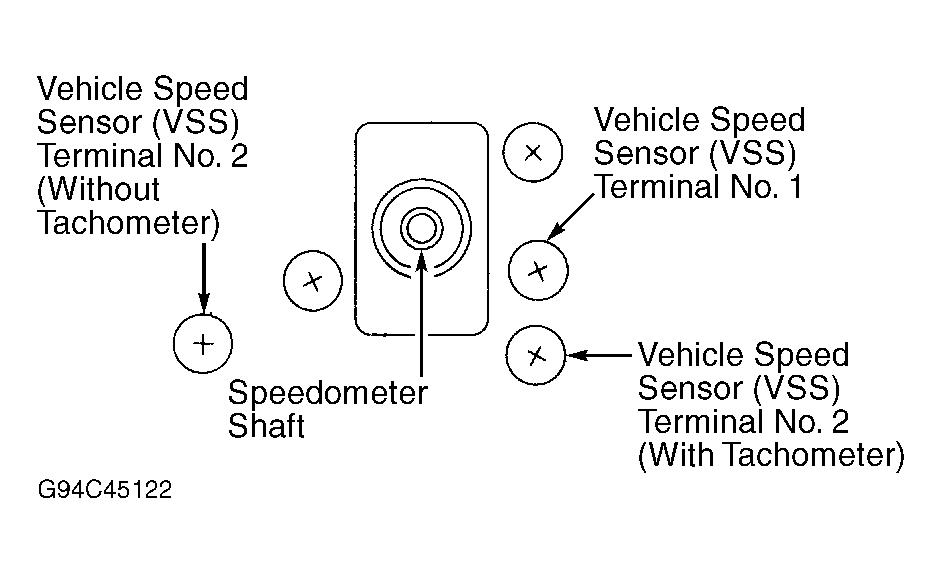

Vehicle speed sensor is mounted in rear of instrument cluster. A malfunction in the vehicle speed sensor circuit will set diagnostic trouble Code 24. For testing procedures, see TESTS W/CODES article in this section. For identification of vehicle speed sensor terminals, see illustrations. See Fig 1 .
