Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Audio Alarm Module | Behind dash, right of steering column. |
| Daytime Running Lamps (DRL) Module | Behind left side of dash. |
| Diode Module | Behind center of dash, taped to harness. |
| Electronic Brake Control Module (EBCM) | Behind left side of dash. |

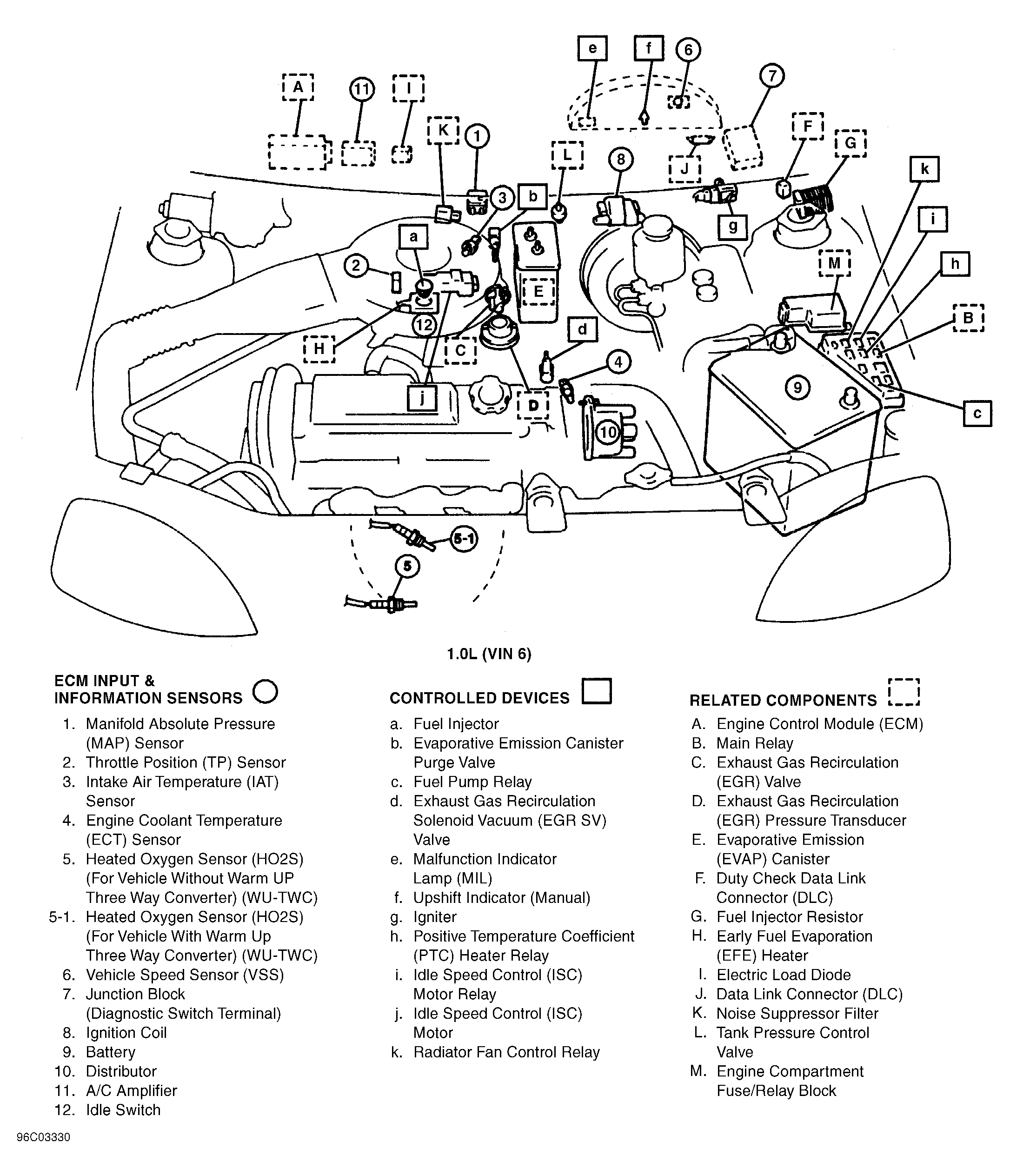

| Engine Control Module (ECM) (1.0L VIN 6) | Behind right side of dash. See Figure. |

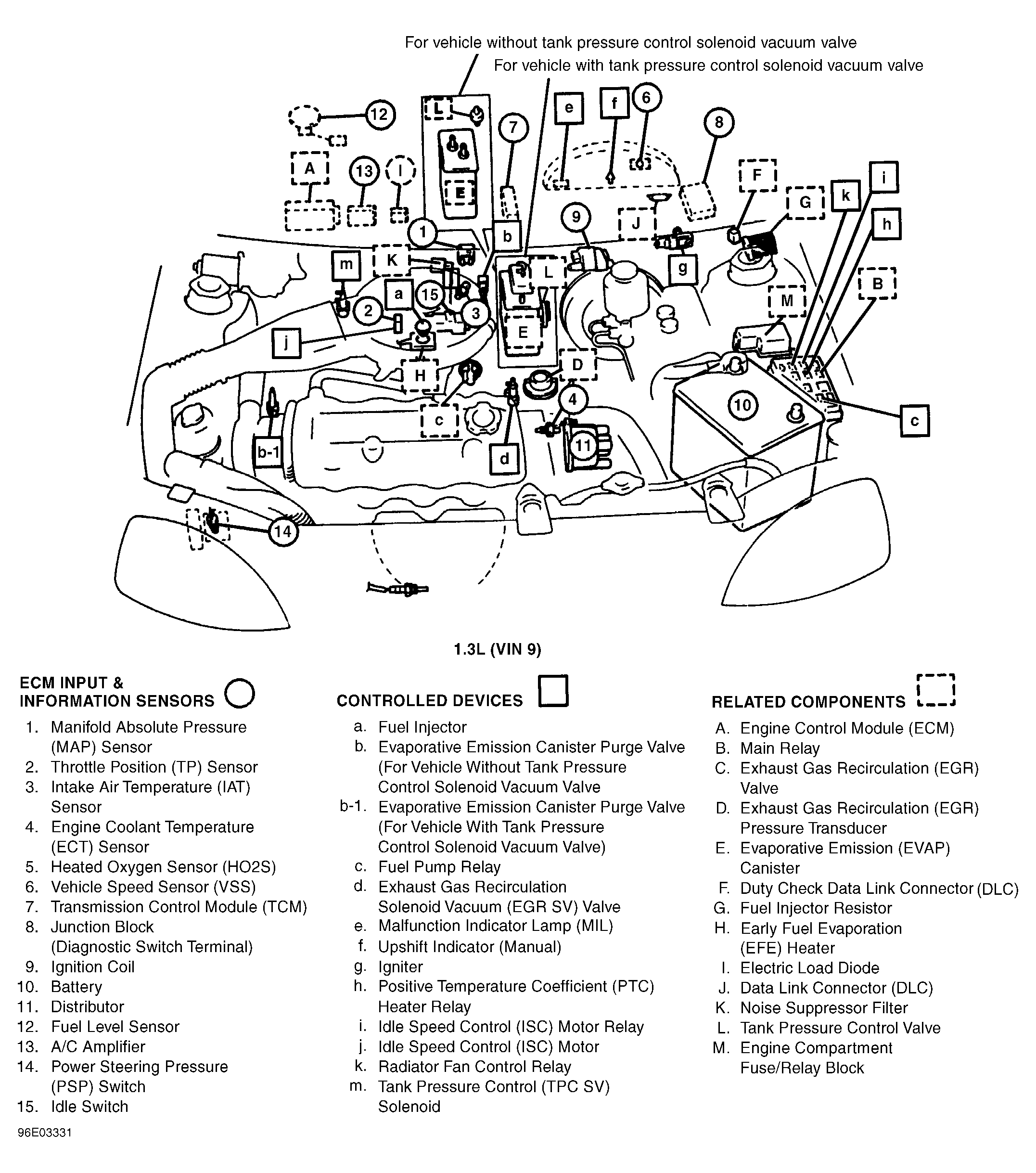

| Engine Control Module (ECM) (1.3L VIN 9) | Behind right side of dash. See Figure. |
| Power Door Lock Control Module | Luggage compartment, under center of rear shelf. |
| Sensing & Diagnostic Module (SDM) | Behind center console. |
| Transmission Control Module (TCM) | Behind left side of dash, near steering column. See Figure. |
