Lift Point Locations

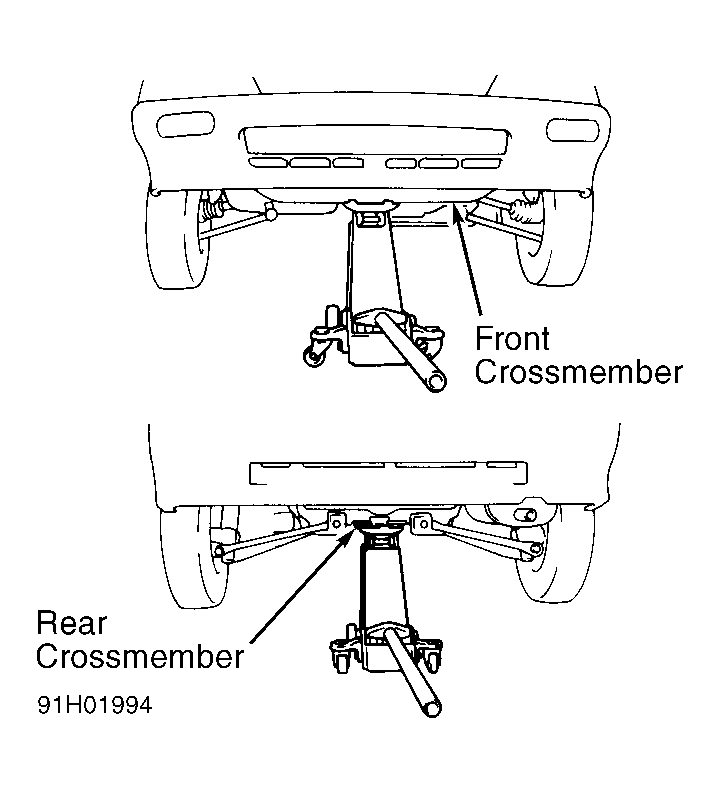

Fig 1: Locating Jacking Points
G91H01994Courtesy of GENERAL MOTORS CORP.

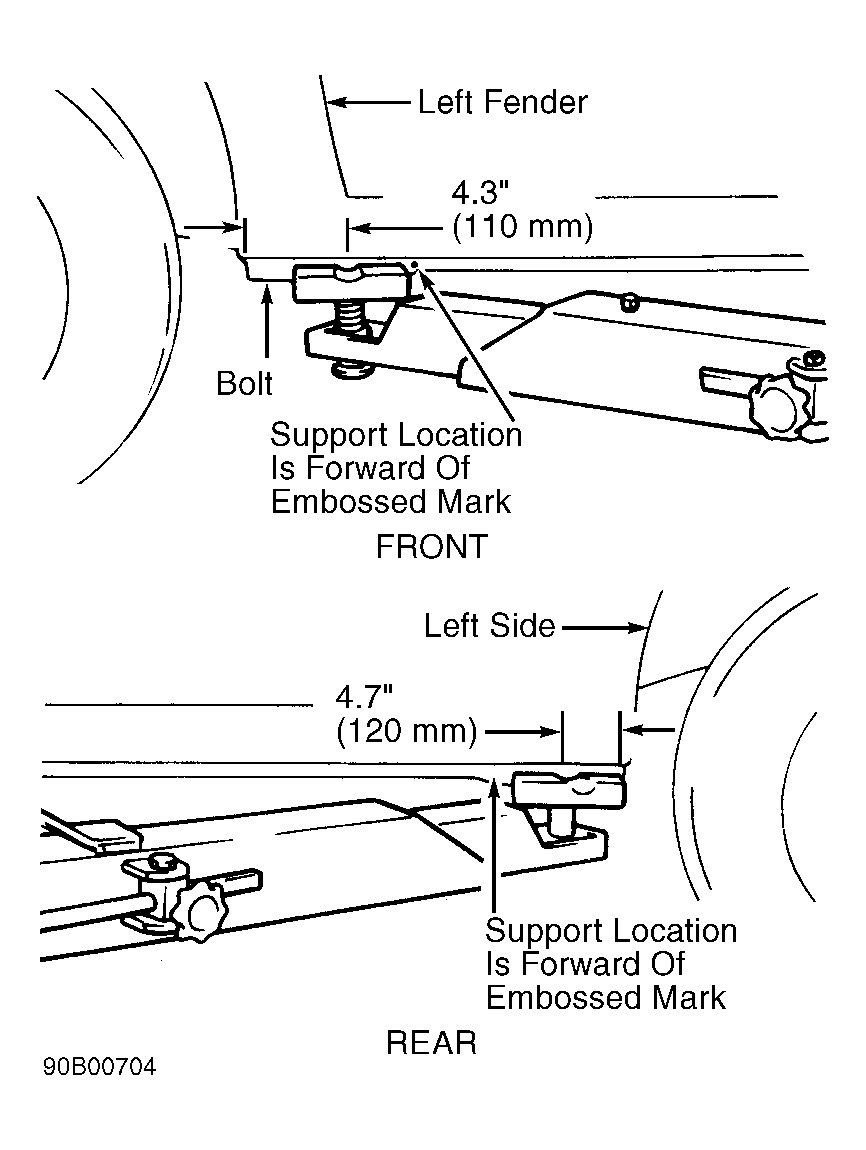

Fig 2: Locating Hoisting Points
G90B00704Courtesy of GENERAL MOTORS CORP.
