Chart D - Tech 1 Displays Undefined DTC'S

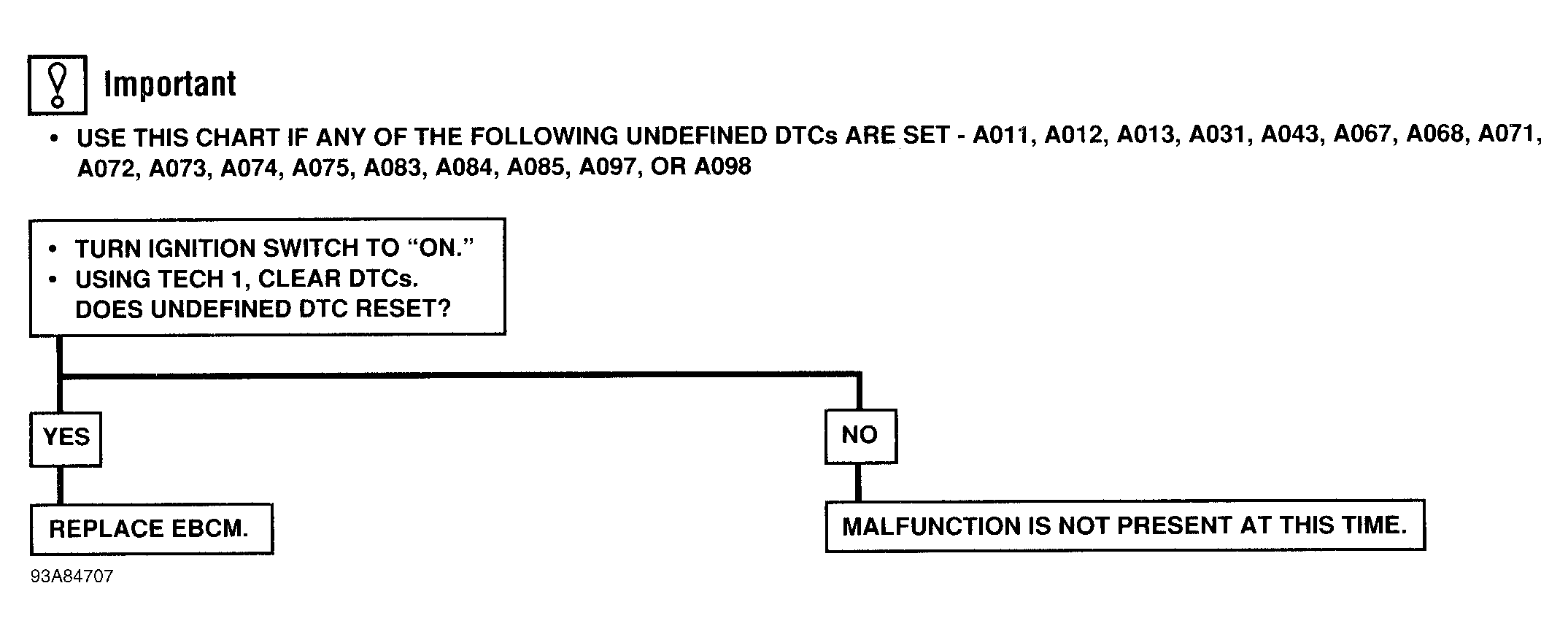

Fig 1: Chart D, Flow Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
