Powertrain Control Module (Pcm)

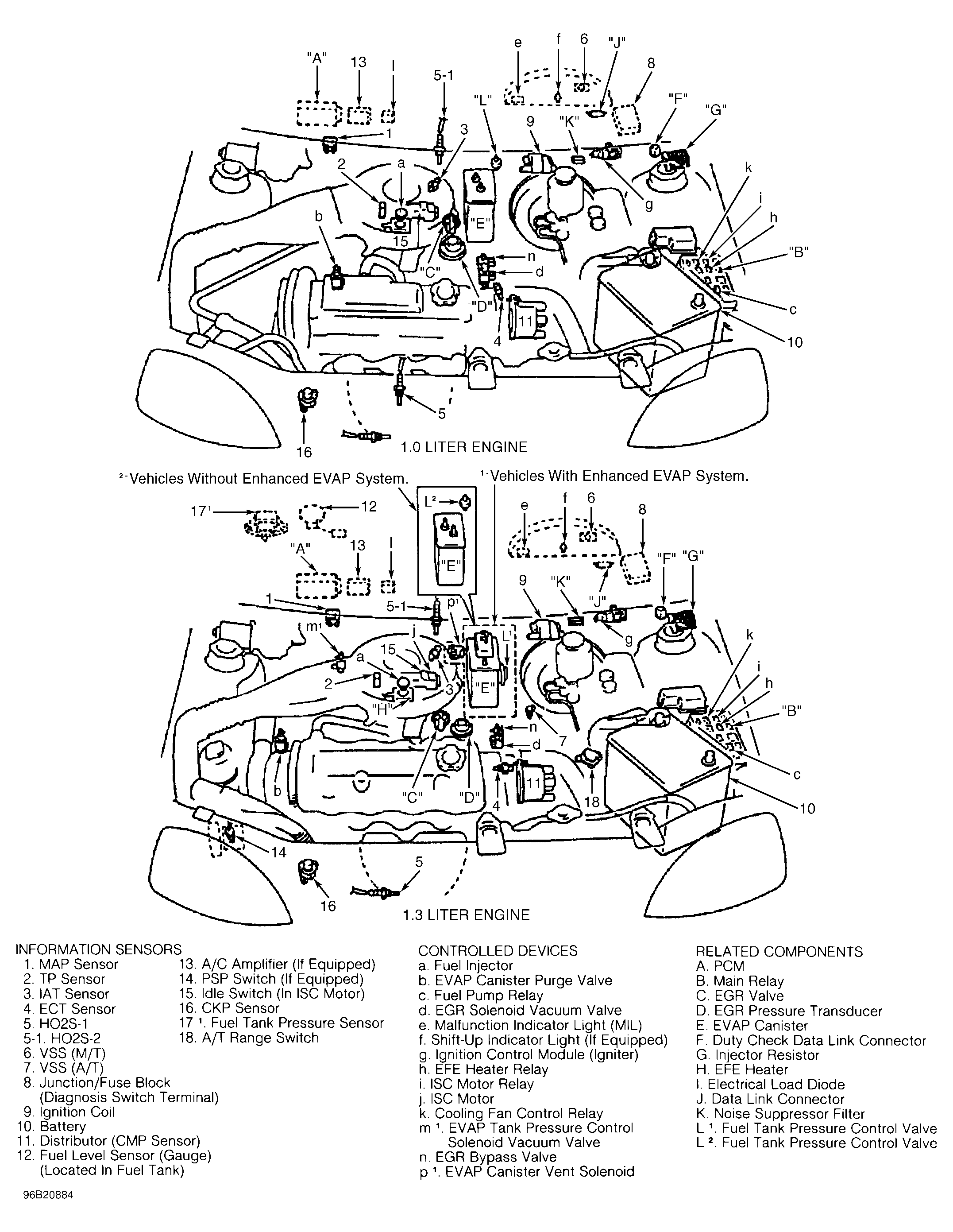

Power for PCM is supplied from 15-amp FI fuse through main relay. PCM memory power is supplied from 15-amp TAIL fuse. FI, IG-COIL and DOME fuses are located in relay/fuse box. PCM distributes power and controls ground of various sensors, switches and solenoids for engine control. See Figure.

NOTE: Components are grouped into 2 categories. First category is INPUT DEVICES, which are components that control or produce voltage signals monitored by PCM. Second category is OUTPUT SIGNALS , which are components controlled by PCM.
