Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

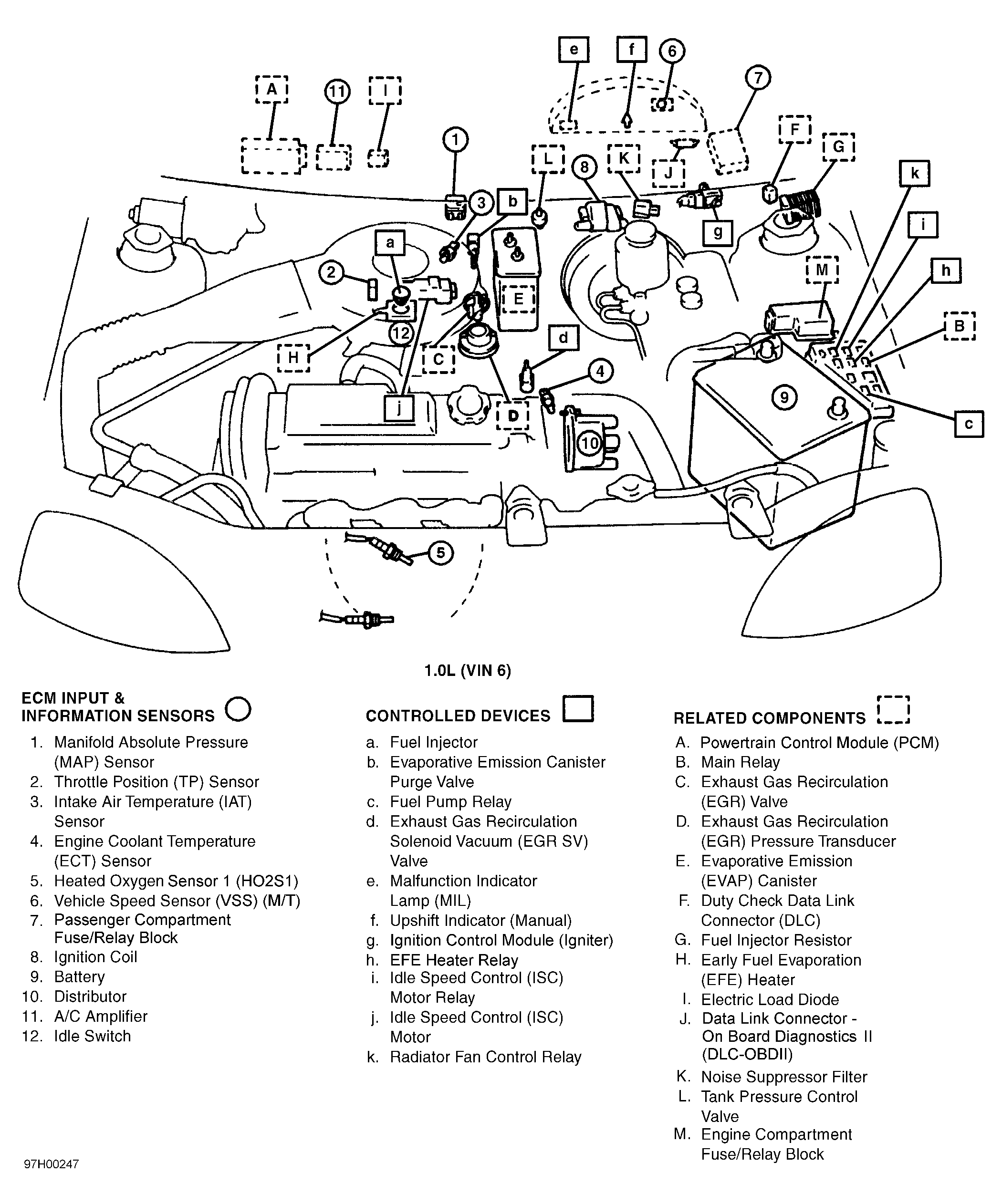

Fig 1: Engine Compartment (1.0L VIN 6)
G97H00247
Fig 2: Engine Compartment (1.3L VIN 9)
G97I00248
