Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Audio Alarm Module | Behind dash, left of steering column. |
| Daytime Running Lamps (DRL) Module | Behind left side of dash. |
| Diode Module | Behind center of dash, taped to harness. |
| Electronic Brake Control Module (EBCM) | Behind left side of dash. |

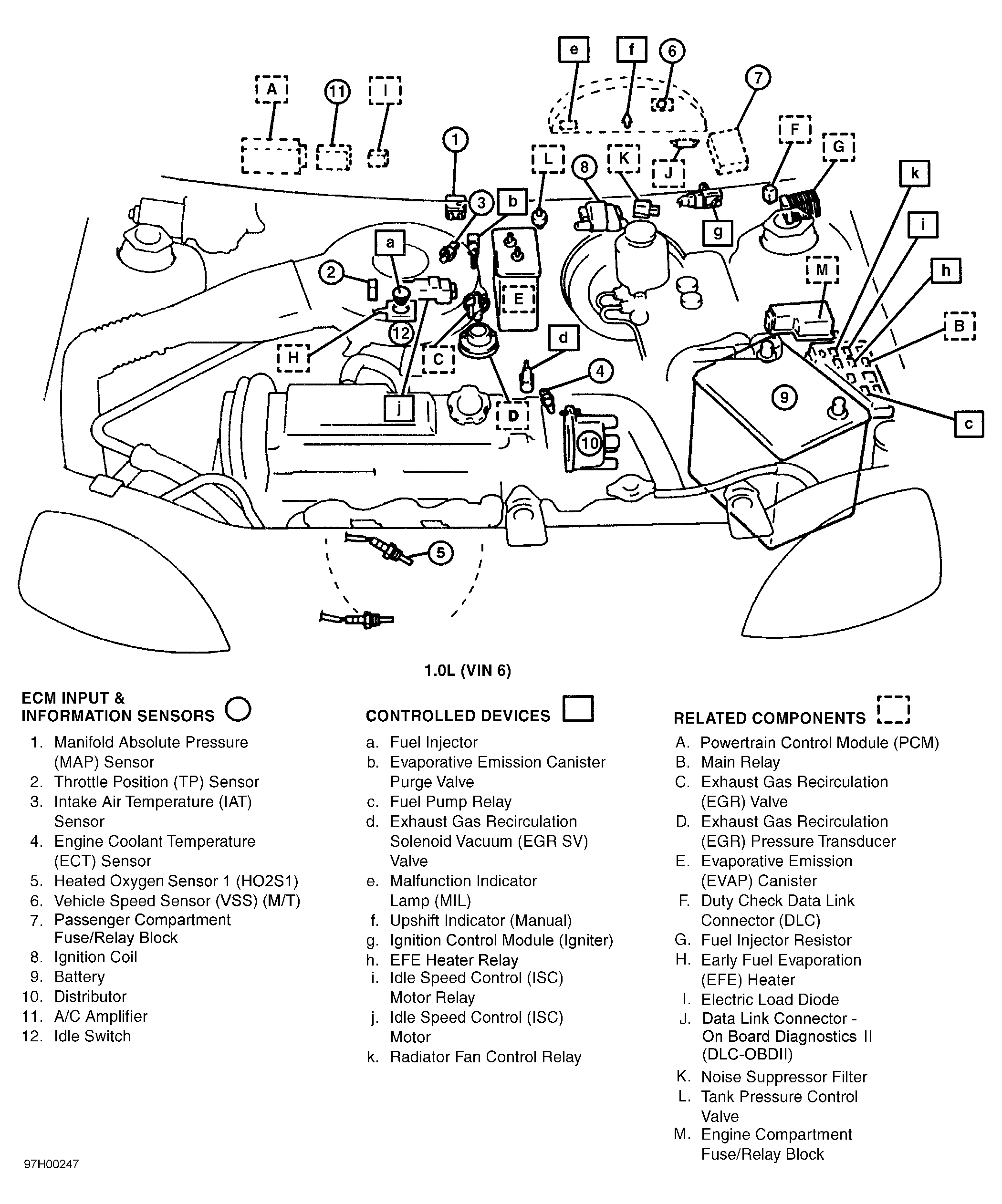

| Ignition Control Module (Igniter) (1.0L VIN 6) | Left side of firewall. See Figure. |

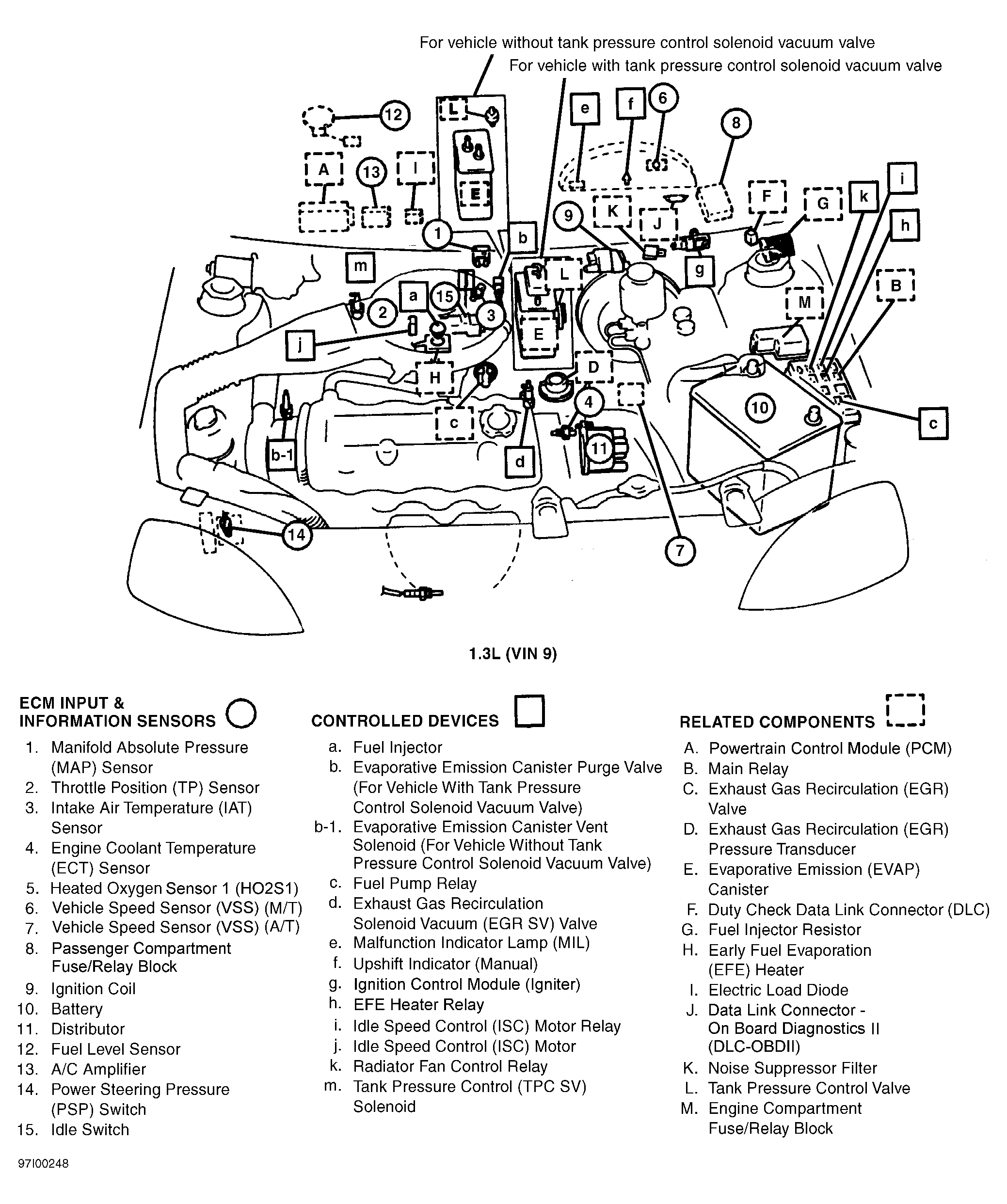

| Ignition Control Module (Igniter) (1.3L VIN 9) | Left side of firewall. See Figure. |
| Power Door Lock Control Module | Behind left side of dash. |
| Powertrain Control Module (PCM) (1.0L VIN 6) | Behind right side of dash. See Figure. |
| Powertrain Control Module (PCM) (1.3L VIN 9) | Behind right side of dash. See Figure. |
| Sensing & Diagnostic Module (SDM) | Behind center console. |
