Additional Service Information

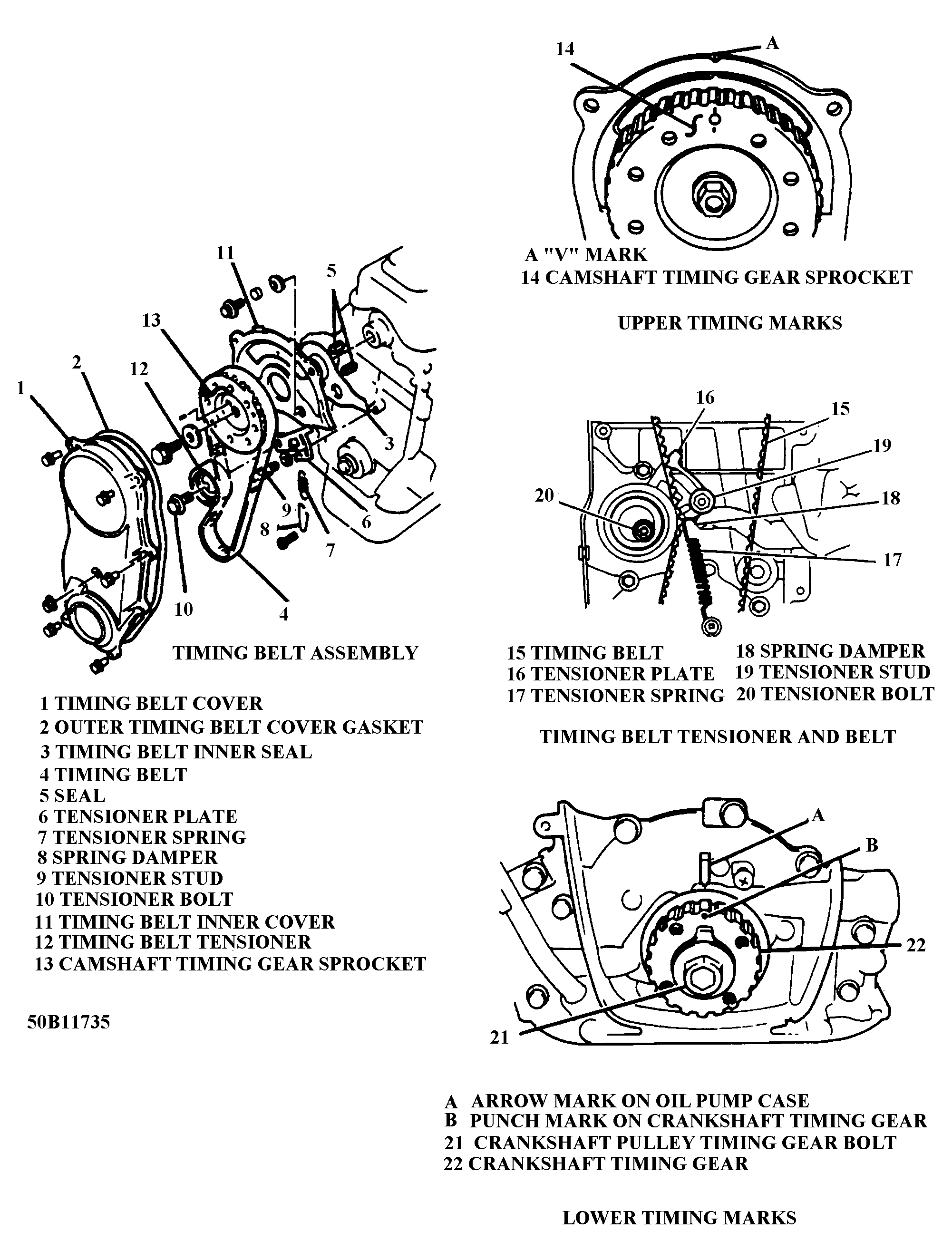

Fig 1: Camshaft Timing Belt Alignment Marks (1.0L)

Courtesy of GENERAL MOTORS CORP.

NOTE: For more information regarding camshaft timing belt service refer to the 1.0L 3-CYL article in the ENGINE MECHANICAL section.

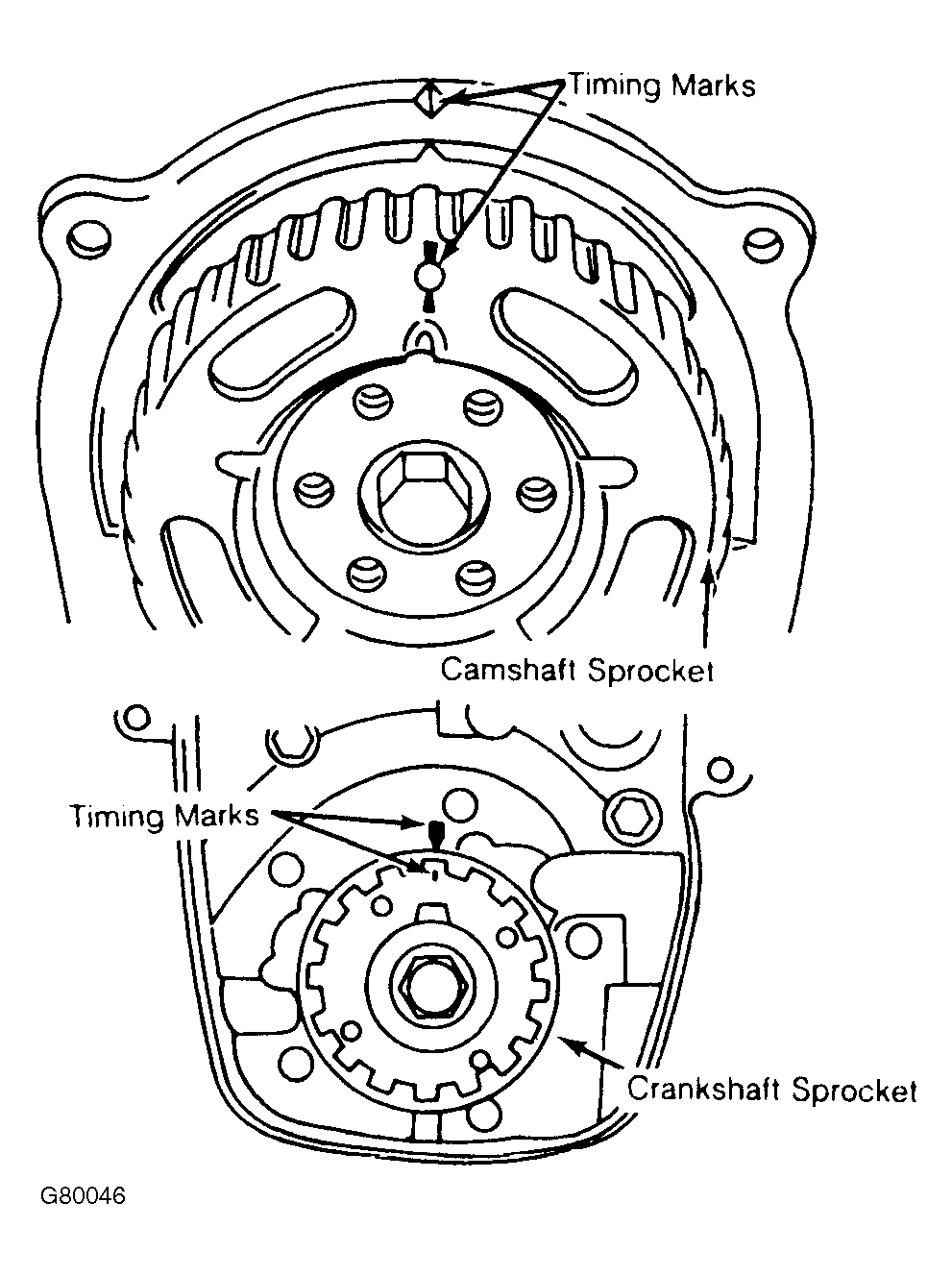

Fig 2: Camshaft Timing Belt Alignment Marks (1.3L)

Courtesy of GENERAL MOTORS CORP.

NOTE: For more information regarding 1.3L camshaft timing belt service refer to the ENGINE MECHANICAL section.

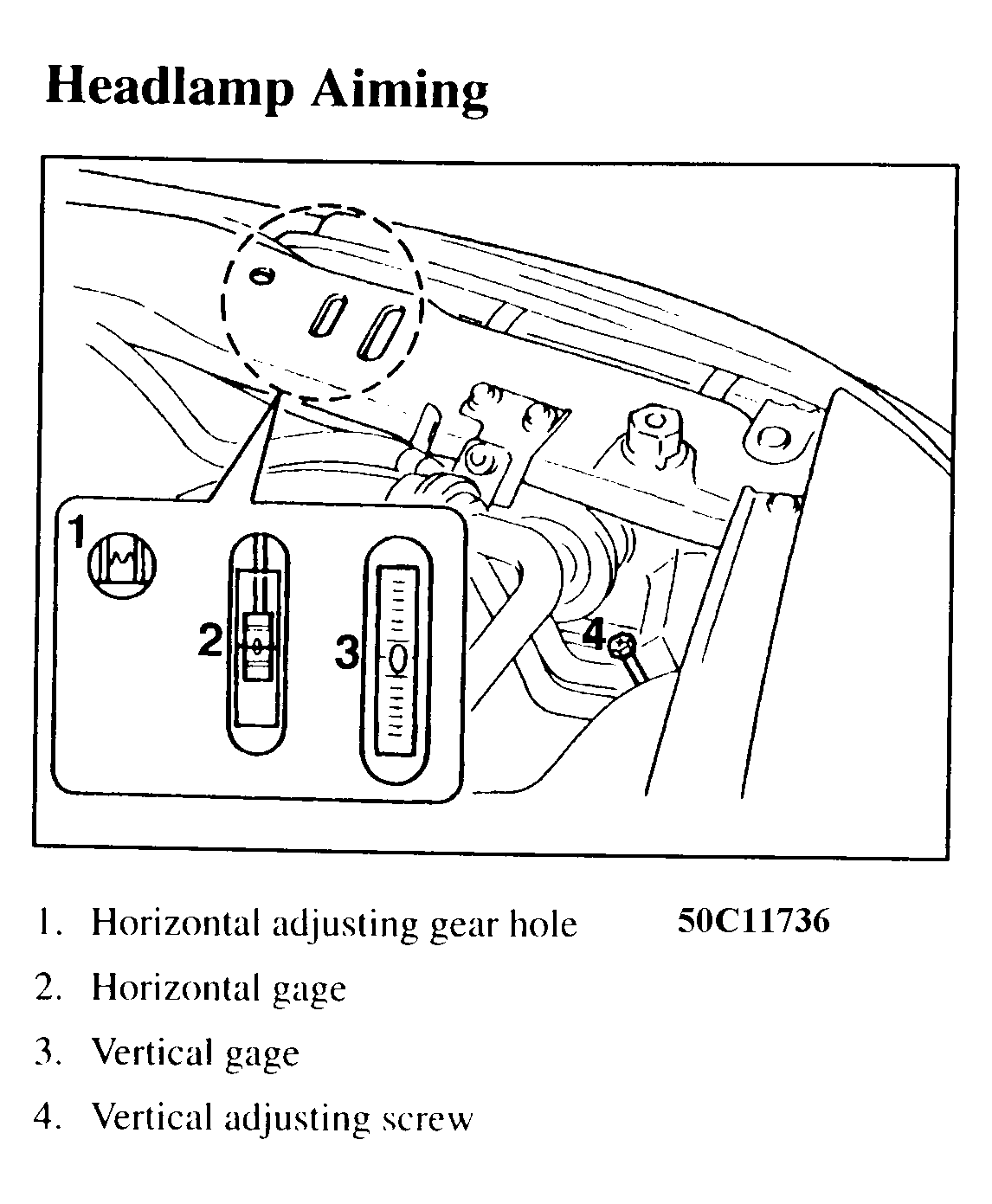

Fig 3: Headlamp Aiming

Courtesy of GENERAL MOTORS CORP.

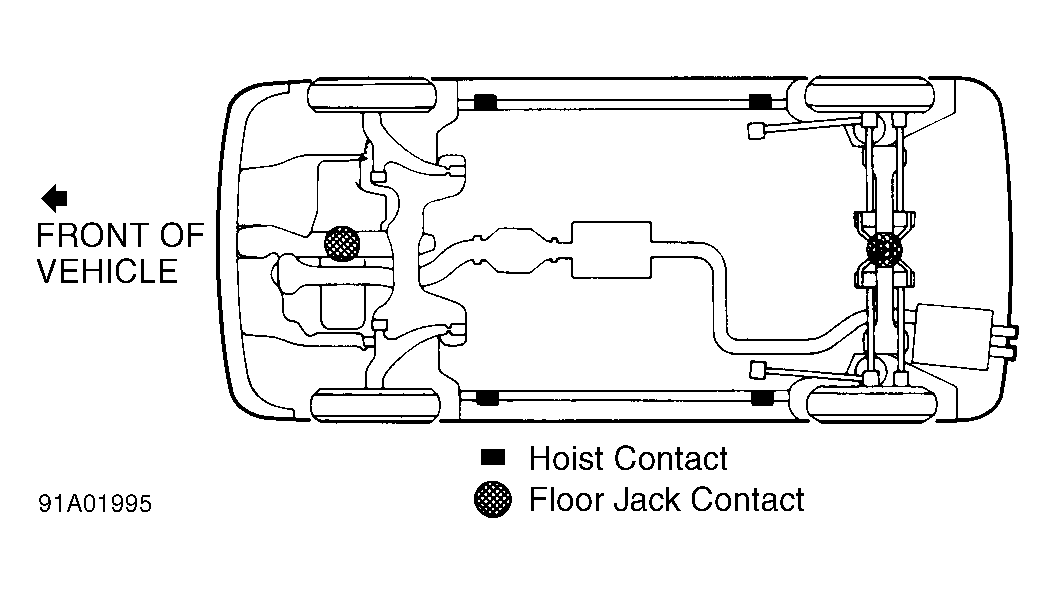

Fig 4: Lift Point Locations

Courtesy of GENERAL MOTORS CORP.

NOTE: For more information regarding lifting and hoisting refer to the JACKING & HOISTING article in the WHEEL ALIGNMENT section.
