Relay Box Identification: Notes

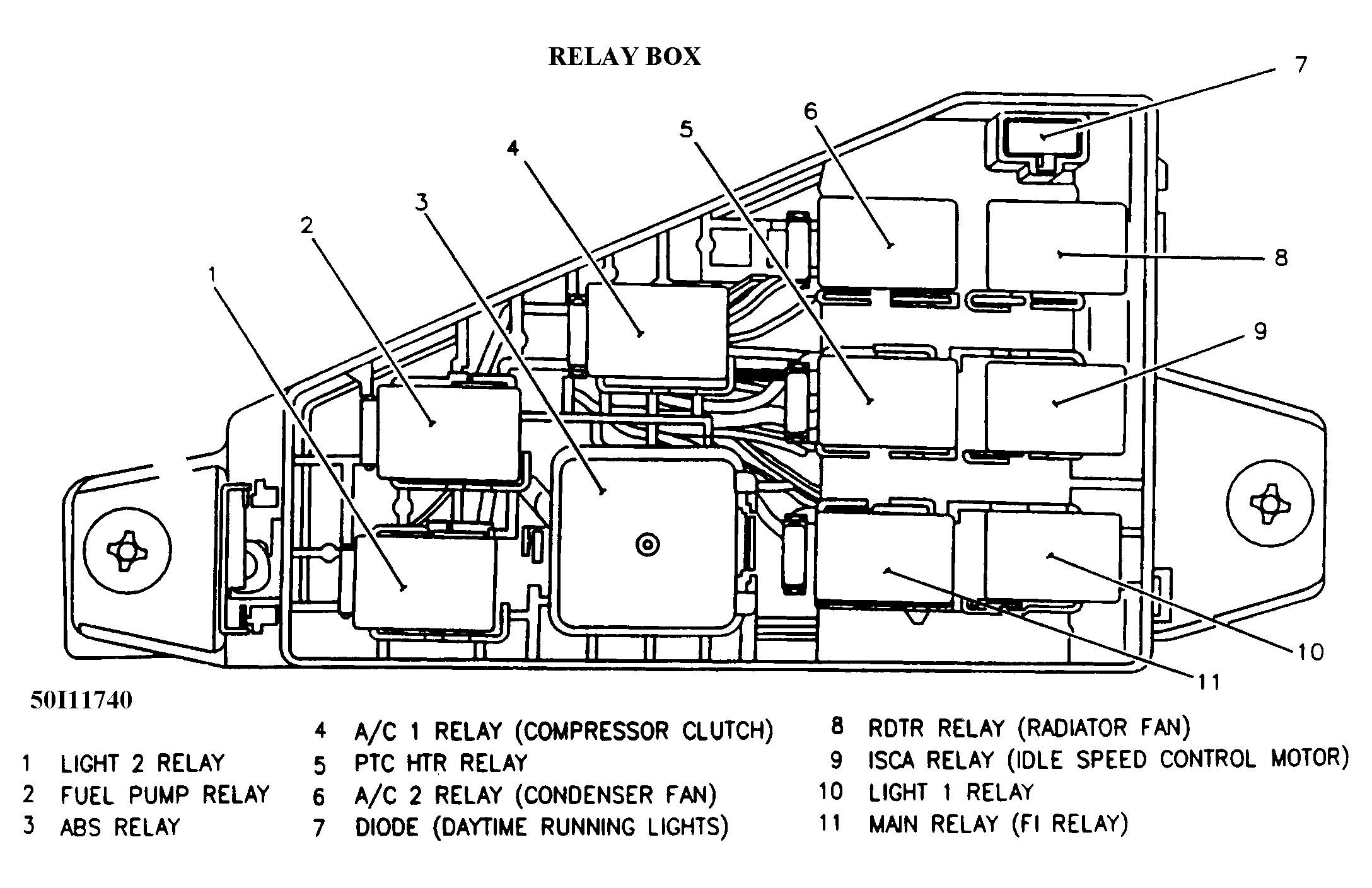

Fig 1: Relay Box Identification
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
