Steering Column: Overhaul

NOTE: Steering column and shaft are not serviced separately. DO NOT attempt to disassemble steering column assembly. Replace as a unit only.

When working on steering column, see exploded view. See Fig 1.

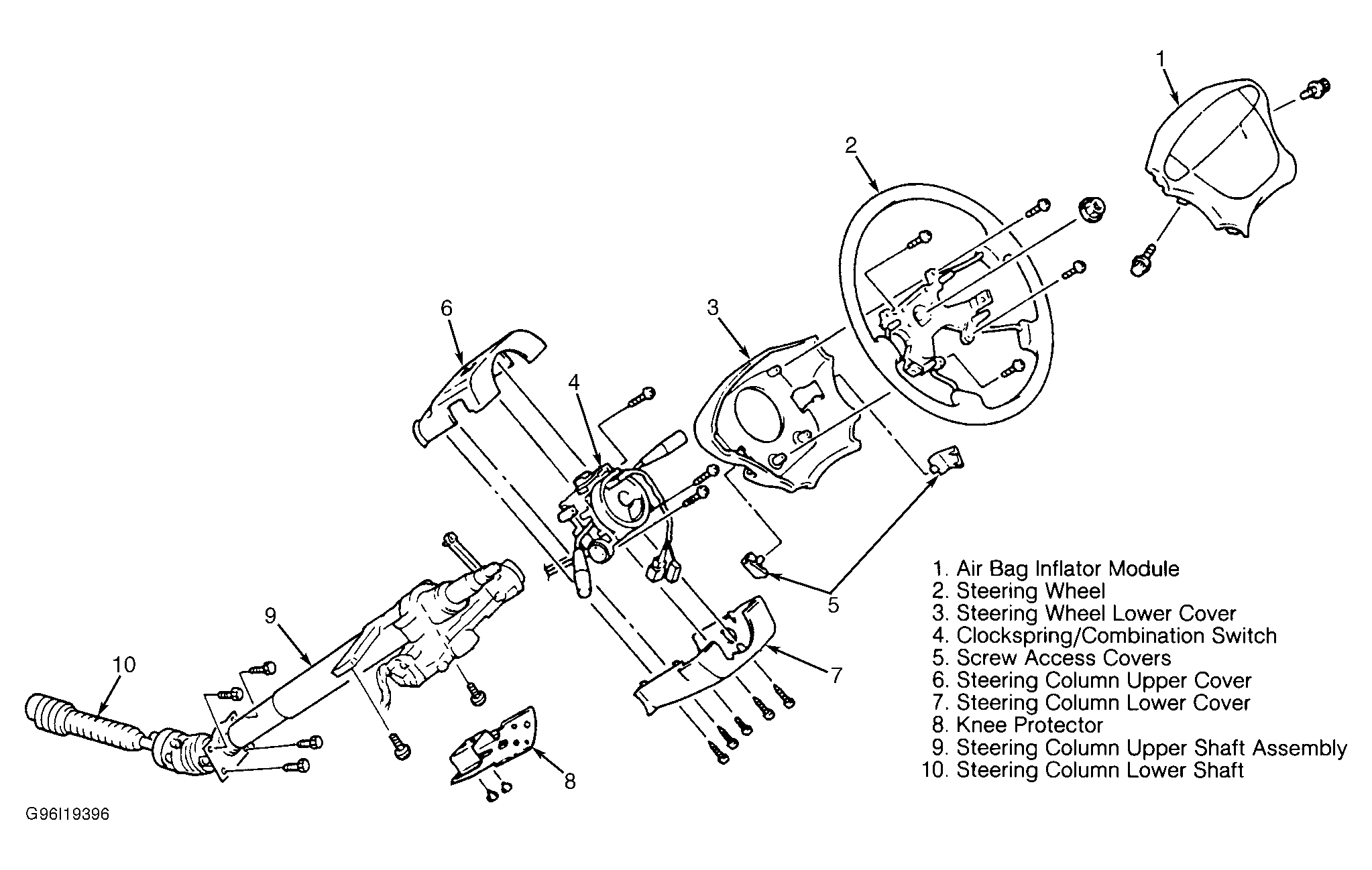

Fig 1: Exploded View Of Steering Column (Metro, Firefly (Canadian) & Tracker With Air Bag)

Courtesy of GENERAL MOTORS CORP.
