Riding Height: Notes
NOTE:
Prior to performing wheel alignment, perform preliminary visual and mechanical inspection of wheels, tires and suspension components. See PRE-ALIGNMENT INSTRUCTIONS in WHEEL ALIGNMENT THEORY & OPERATION article in GENERAL INFORMATION.

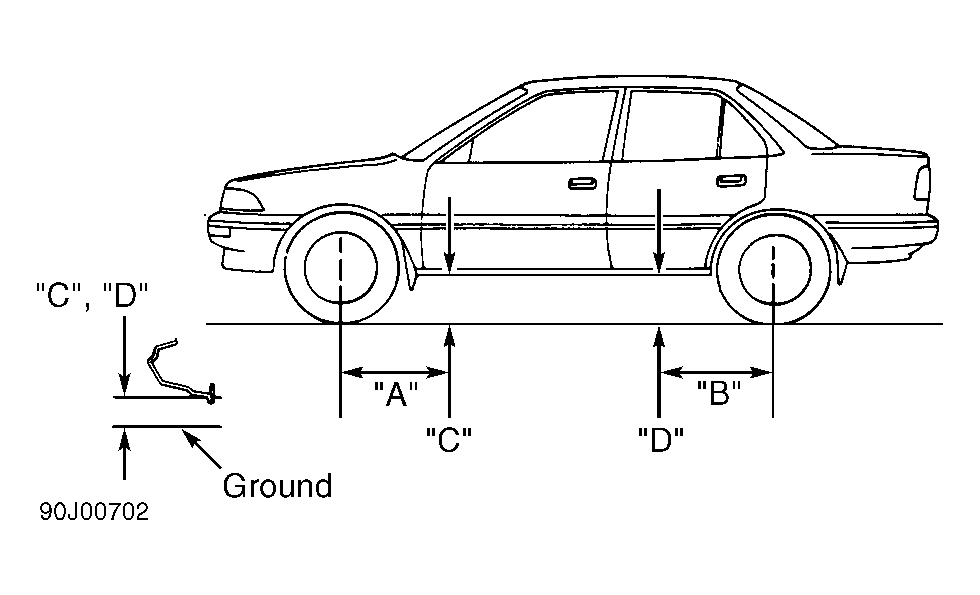

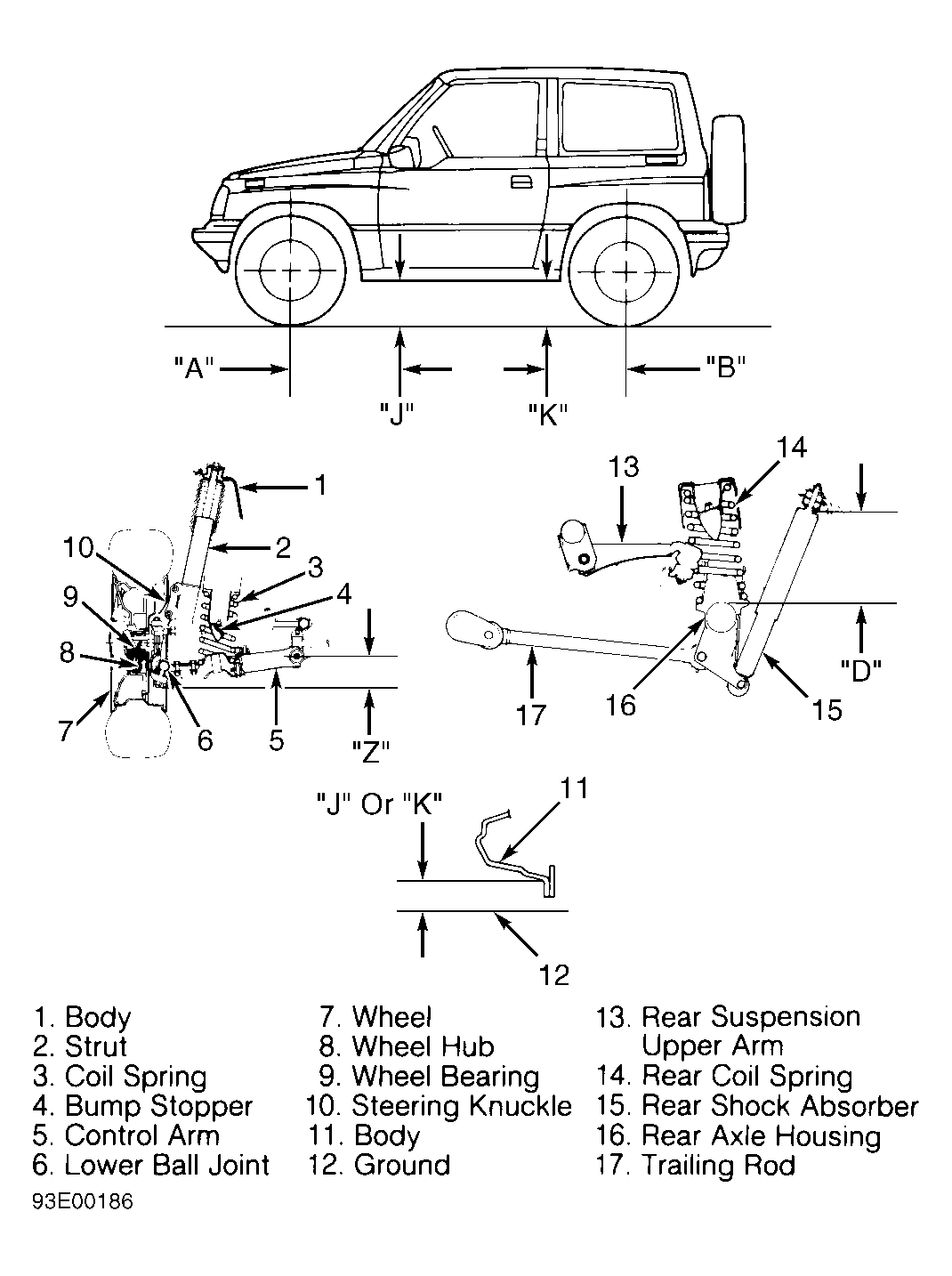

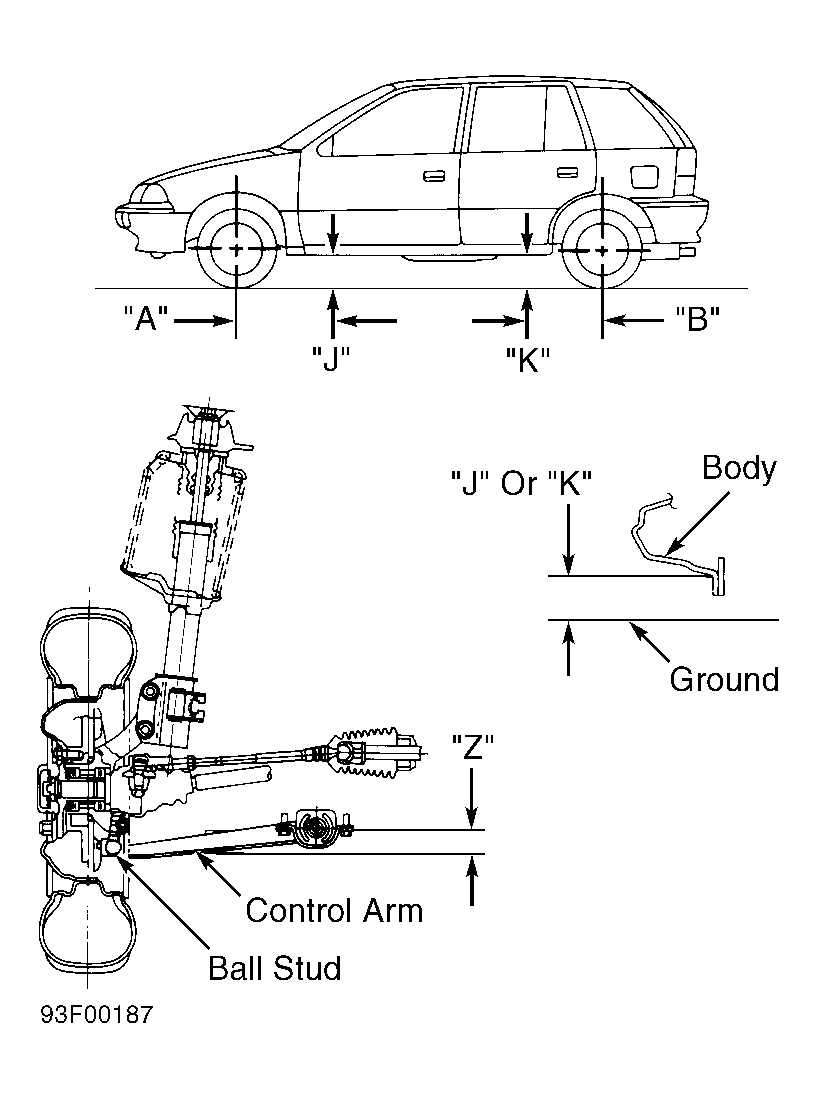

Before adjusting alignment, check riding height. See Figure, Figure or Figure . Riding height must be checked with vehicle on level floor, tires properly inflated, no extraneous weight in vehicle and at least 1/2 tank of fuel. Bounce vehicle several times, and allow suspension to settle. See appropriate RIDING HEIGHT table for riding height specifications.
Visually inspect vehicle for signs of abnormal height from front to rear or side to side. Check passenger and luggage compartments for extra heavy items, and remove items if present. If riding height is not within specification, check, repair or replace suspension components. True riding height should be an average of several measurements.
