Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Hydraulic Modulator Assembly | Right front of engine compartment. |
| Audio Alarm Module | On back of junction block No. 1. |
| Cruise Control Module | Behind center console, below radio. |
| Daytime Running Lamps (DRL) Control Module | Behind left side of dash. |
| Electronic Brake Control Module (EBCM) | On right front floorboard, under carpet. |

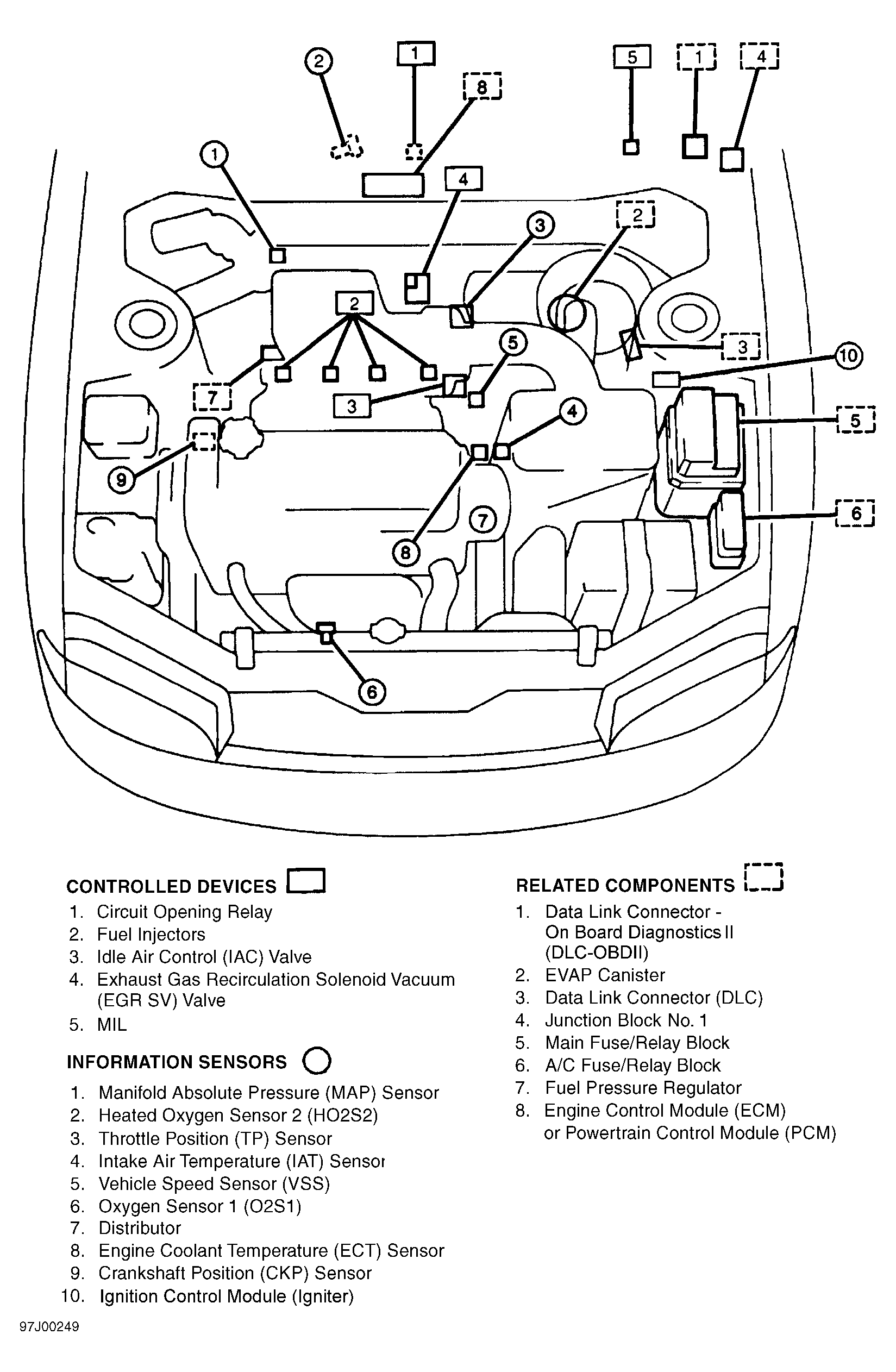

| Engine Control Module (ECM) | Behind front of center console. See Figure . |
| Ignition Control Module (Igniter) | Mounted on left front strut tower. See Figure . |
| Lamp Driver Module (ABS) | Behind center of dash, taped to harness. |
| Power Door Lock Control Module | Behind center of dash, attached to support brace. |
| Powertrain Control Module (PCM) | Behind front of center console. See Figure . |
| Shift Lock Control Module (A/T) | Under center console, at base of parking brake lever. |
| Sun Roof Control Module | On front center of roof headliner. |
