Fuel Pressure Test
- Start engine. Warm to normal operating temperature. Turn ignition off. Release fuel system pressure. See FUEL SYSTEM PRESSURE RELEASE

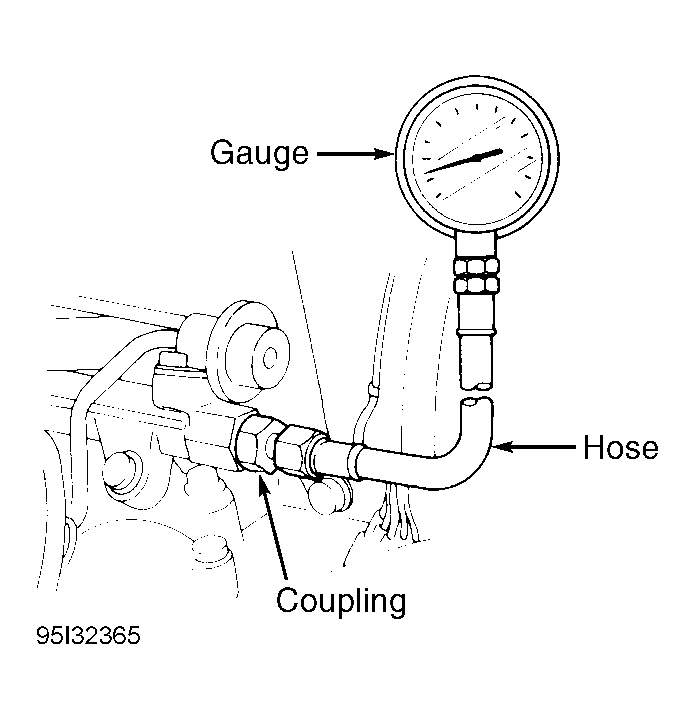

. Remove plug bolt on fuel rail. Install coupling, pressure gauge and hose to fuel rail. See Fig 1
. Verify battery voltage is 11 volts or greater. Start engine and ensure no leakage exists at pressure gauge connection. Turn engine off.
- Turn ignition on to operate fuel pump for 3 seconds. Turn ignition off. Repeat 3-4 times and check fuel pressure. See FUEL PUMP PERFORMANCE
and REGULATED FUEL PRESSURE tables. Start engine. Measure fuel pressure at idle. Turn ignition off.
- If pressures are not within specification, check for defective fuel pump, pressure regulator or restriction in fuel system. See CIRCUIT TESTS
. Repair as necessary. Remove fuel pressure gauge and start engine to ensure no fuel leakage exists.
Courtesy of SUZUKI OF AMERICA CORP. FUEL PUMP PERFORMANCE
| Application |
psi (kg/cm2
) |
| Tracker |
36.0-43.0 (2.5-3.0) |
REGULATED FUEL PRESSURE
| Application |
psi (kg/cm2
) |
| Tracker |
30.0-37.0 (2.1-2.6) |
