Improper Door Action

If air door did not respond as indicated above (did not rise or fall), first test the air bleed valve:
Disconnect and plug hose leading to air bleed valve, then crank engine for about 5 seconds.
Air control valve door should rise and remain up for at least 3 seconds. If it does, replace air bleed valve and repeat test.
If door does not rise or remain open, proceed with testing of the air control diaphragm and check valve:
Disconnect the vacuum hose from the air control diaphragm. Raise air control valve door manually and, while blocking the inlet pipe, release the valve door.

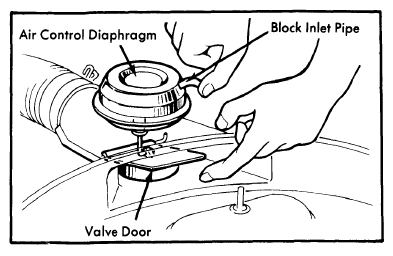

Fig 1: Testing Air Control Diaphragm and Check Valve
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If valve door remains up, replace the check valve and repeat the test.
If valve door drops to closed position, replace the air control diaphragm and repeat test.
