Speed Sensor

The speed sensor is a photo cell mounted in the speedometer head. The speed sensor provides a "ON" signal above 15 MPH and a "OFF" signal below 15 MPH.

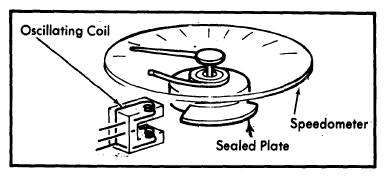

Fig 1: Throttle Control System Speed Sensor

Courtesy of AMERICAN HONDA MOTOR CO., INC.
