Throttle Control Valve

This system aids engine starting. As starter is engaged, the cranking solenoid valve is activated through the starter relay to allow intake manifold vacuum into the diaphragm. This helps to maintain the correct throttle opening angle.

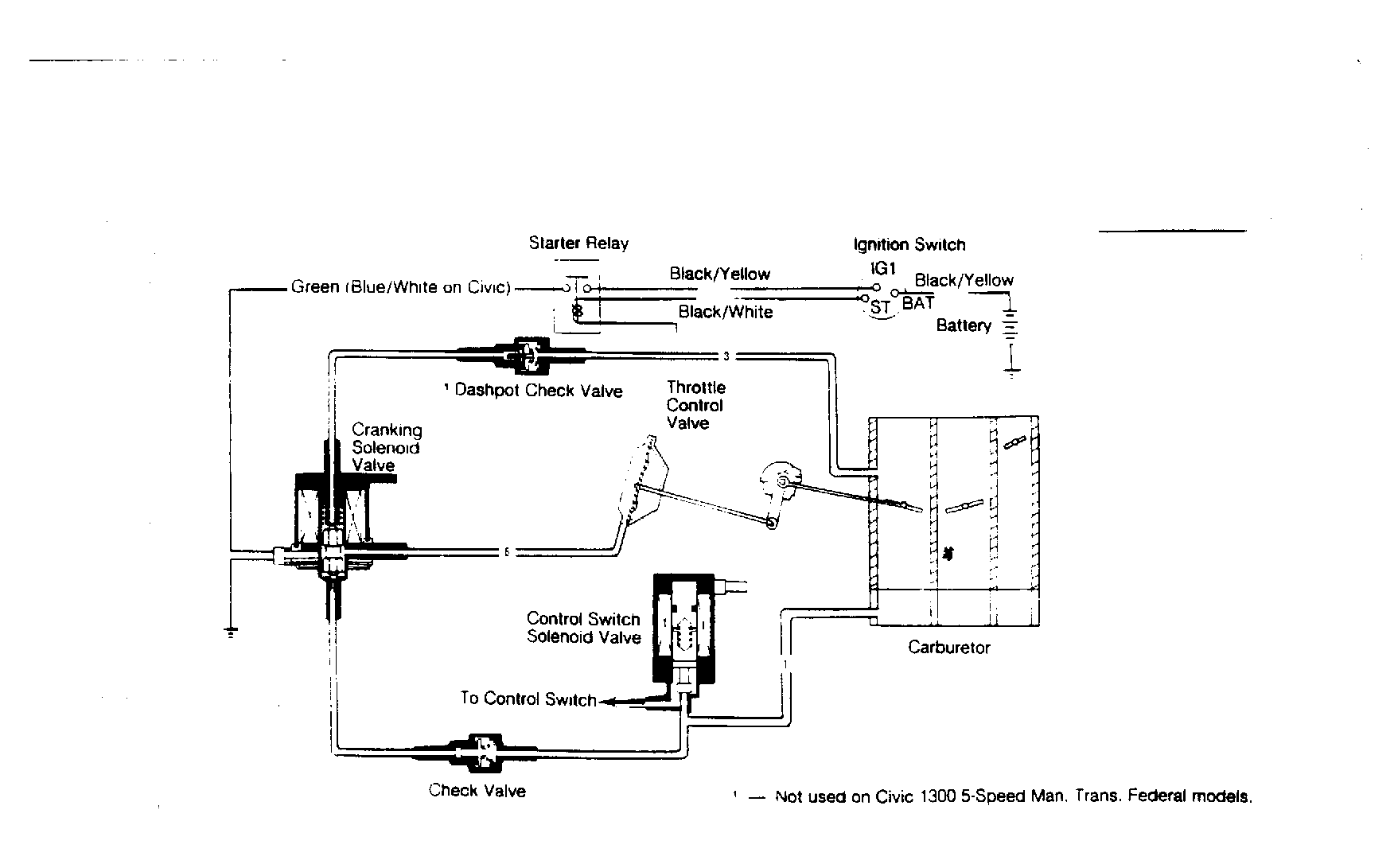

Fig 1: Throttle Control System Diagram (Accord Shown, Civic Similar)
G41222
