Wiring Diagrams

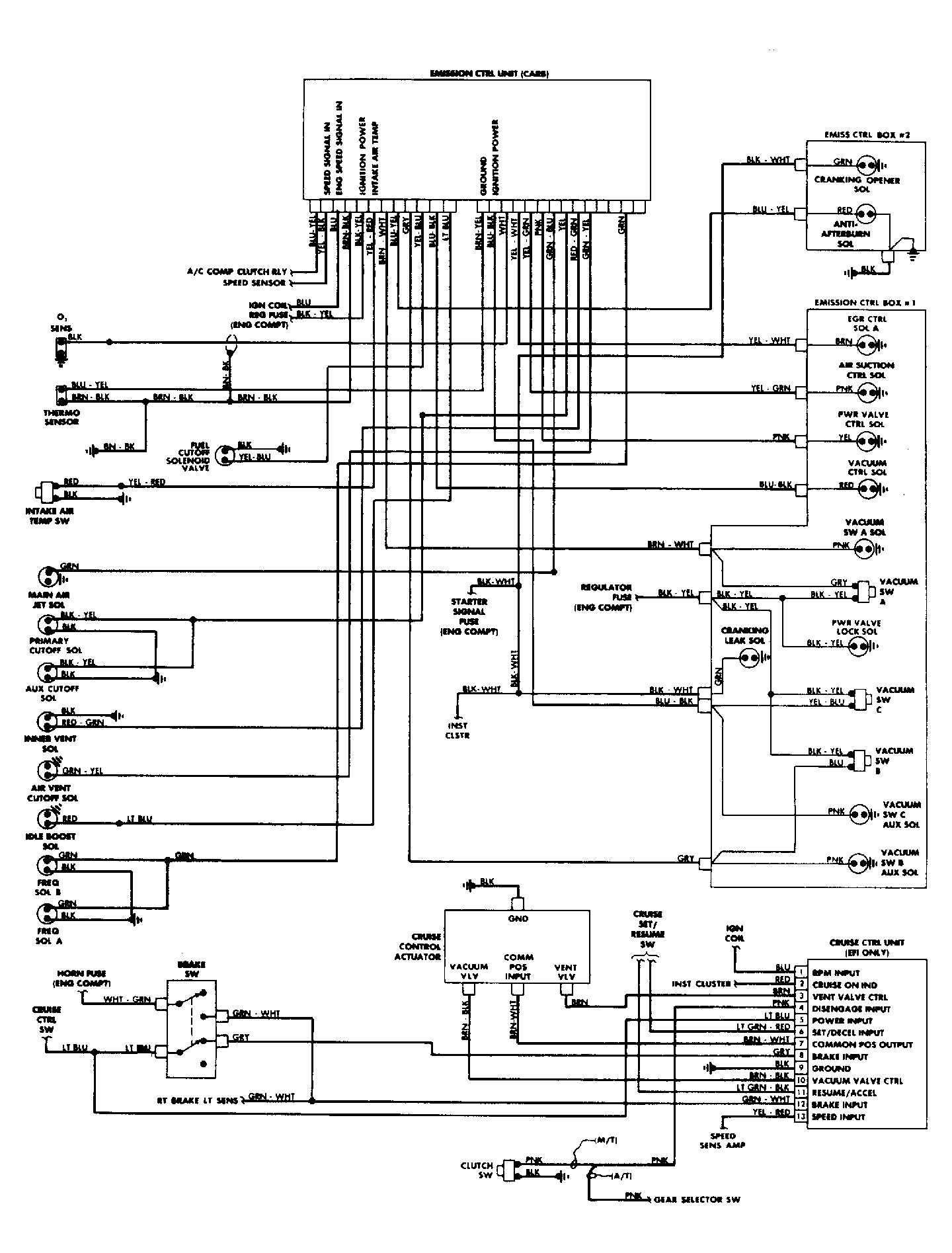

Fig 1: Accord Wiring Diagram (Carburetor)

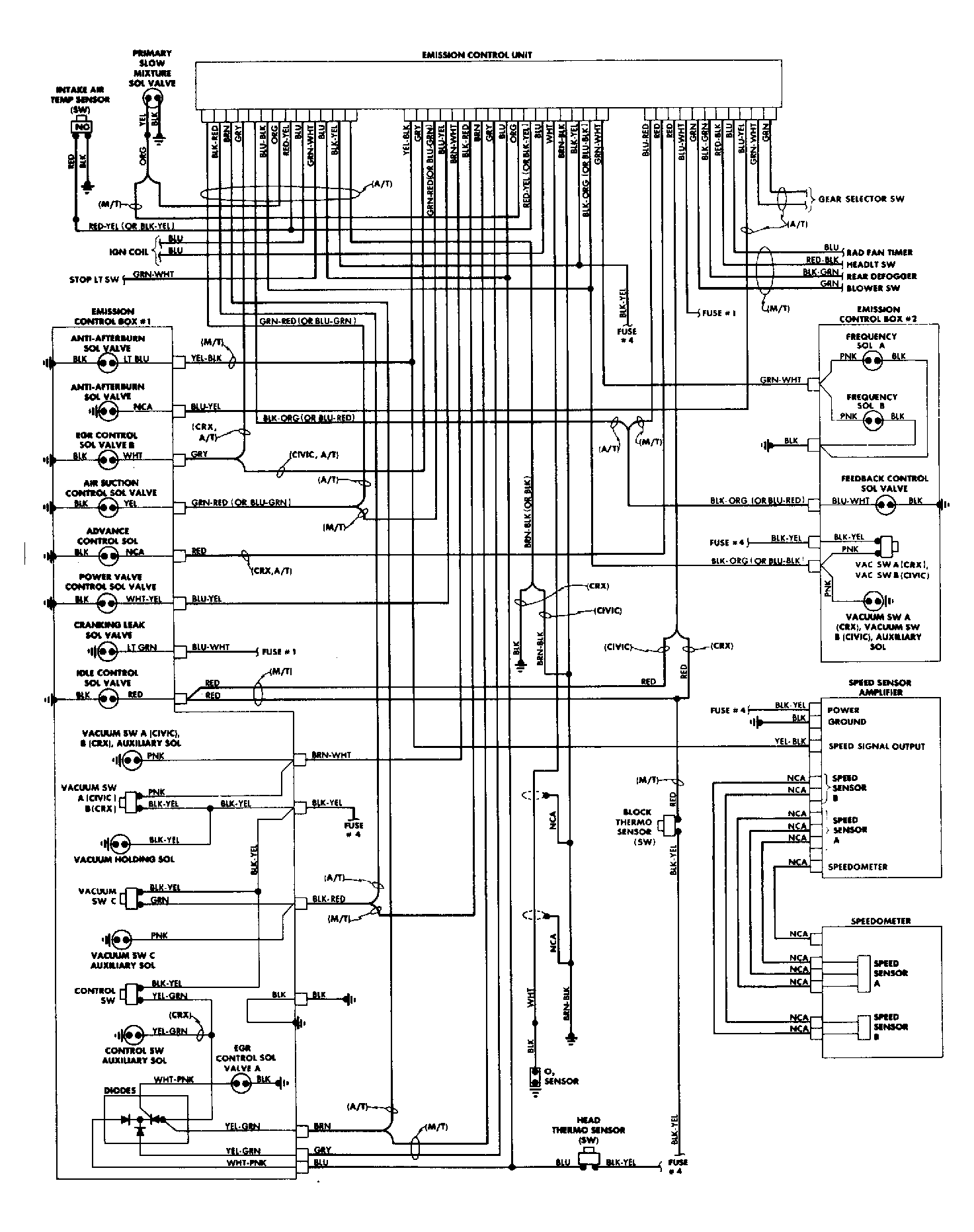

Fig 2: Civic CRX HF Federal & High Altitude Wiring Diagram (Carb)

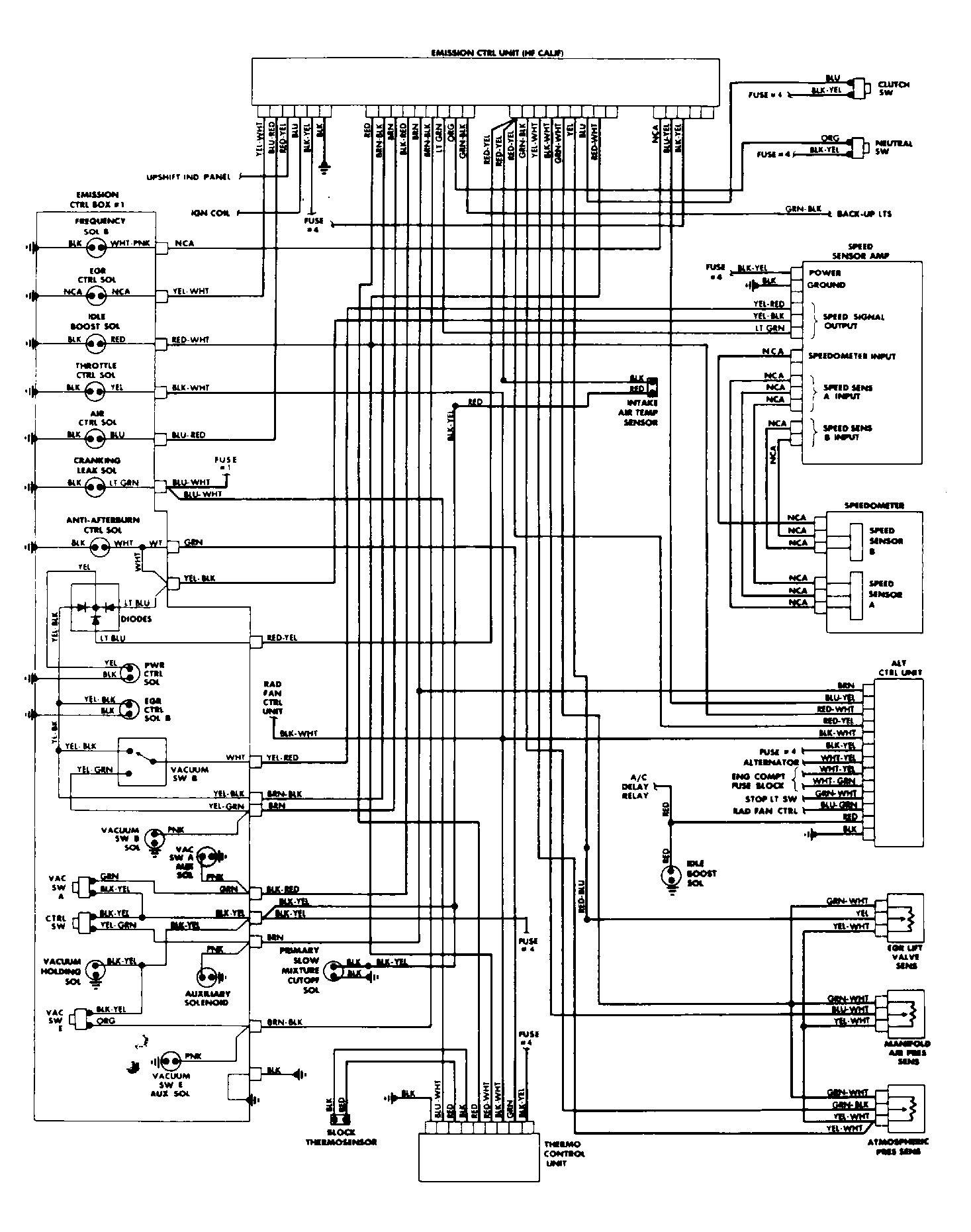

Fig 3: Civic CRX HF California Wiring Diagram (Carburetor)

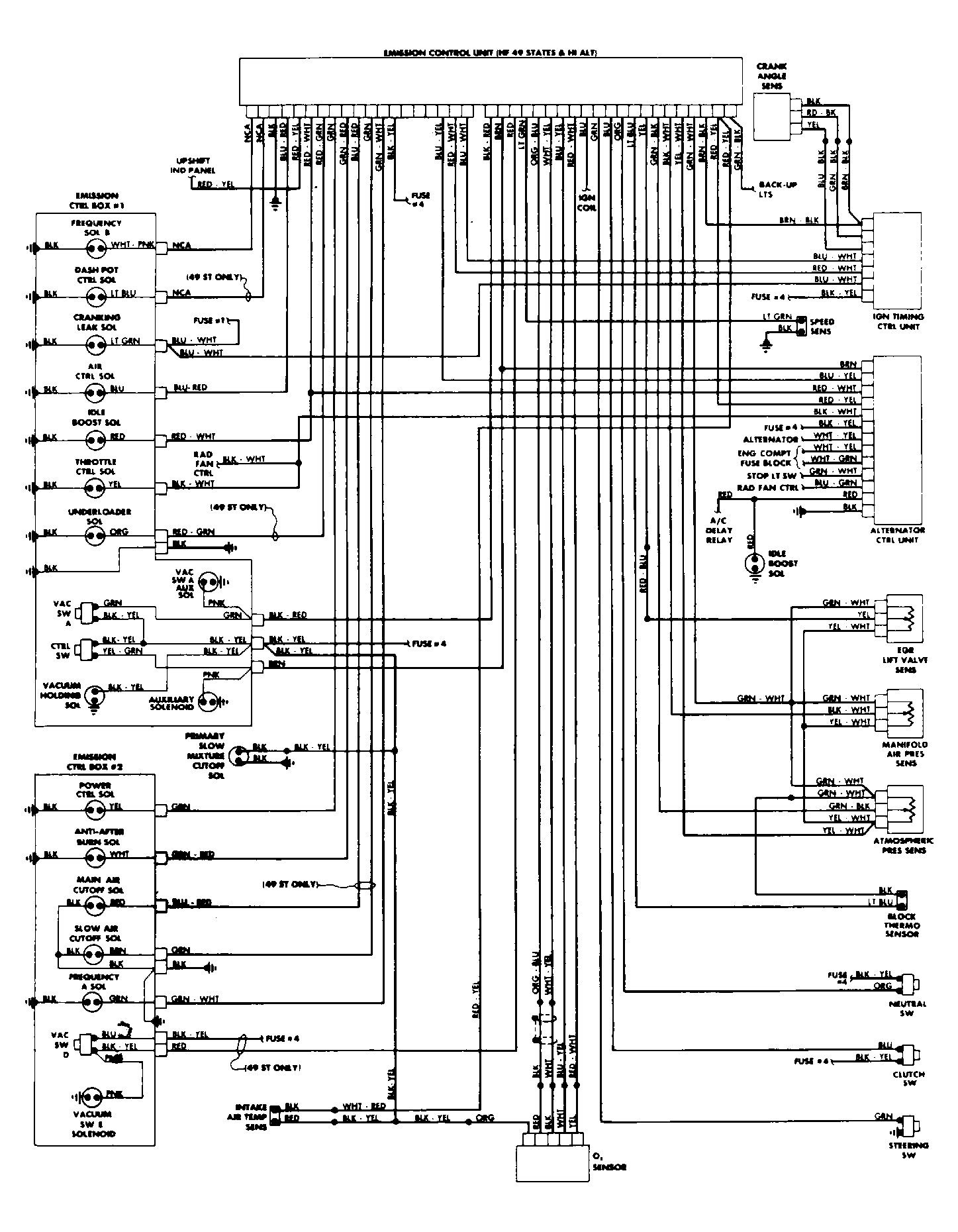

Fig 4: Civic 1500 & CRX Wiring Diagram (Carburetor)

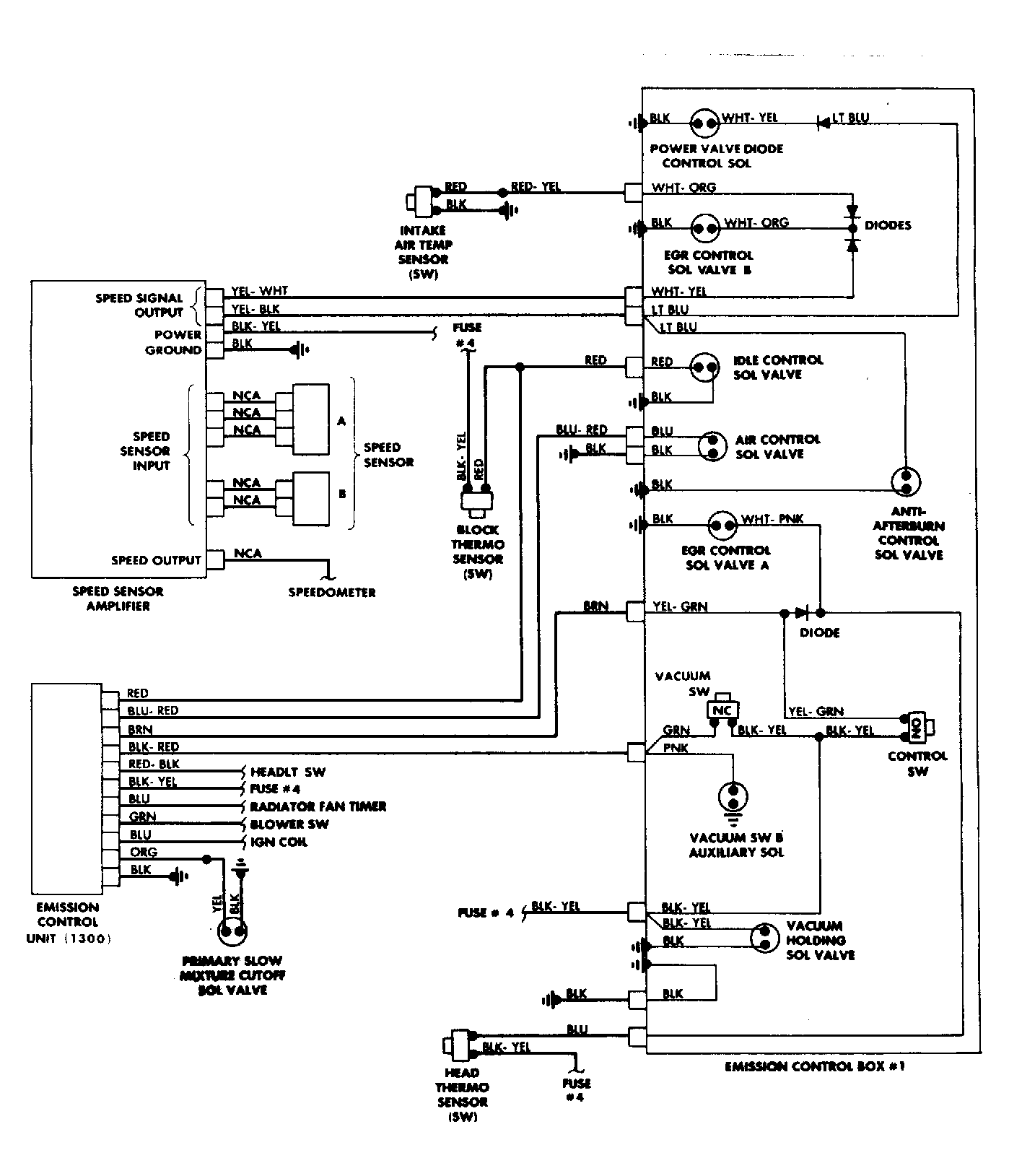

Fig 5: Civic 1300 Wiring Diagram (Carburetor)

Fig 6: Prelude Wiring Diagram (Carburetor)
