Code 1 - Heated Oxygen Sensor (Ho2S)

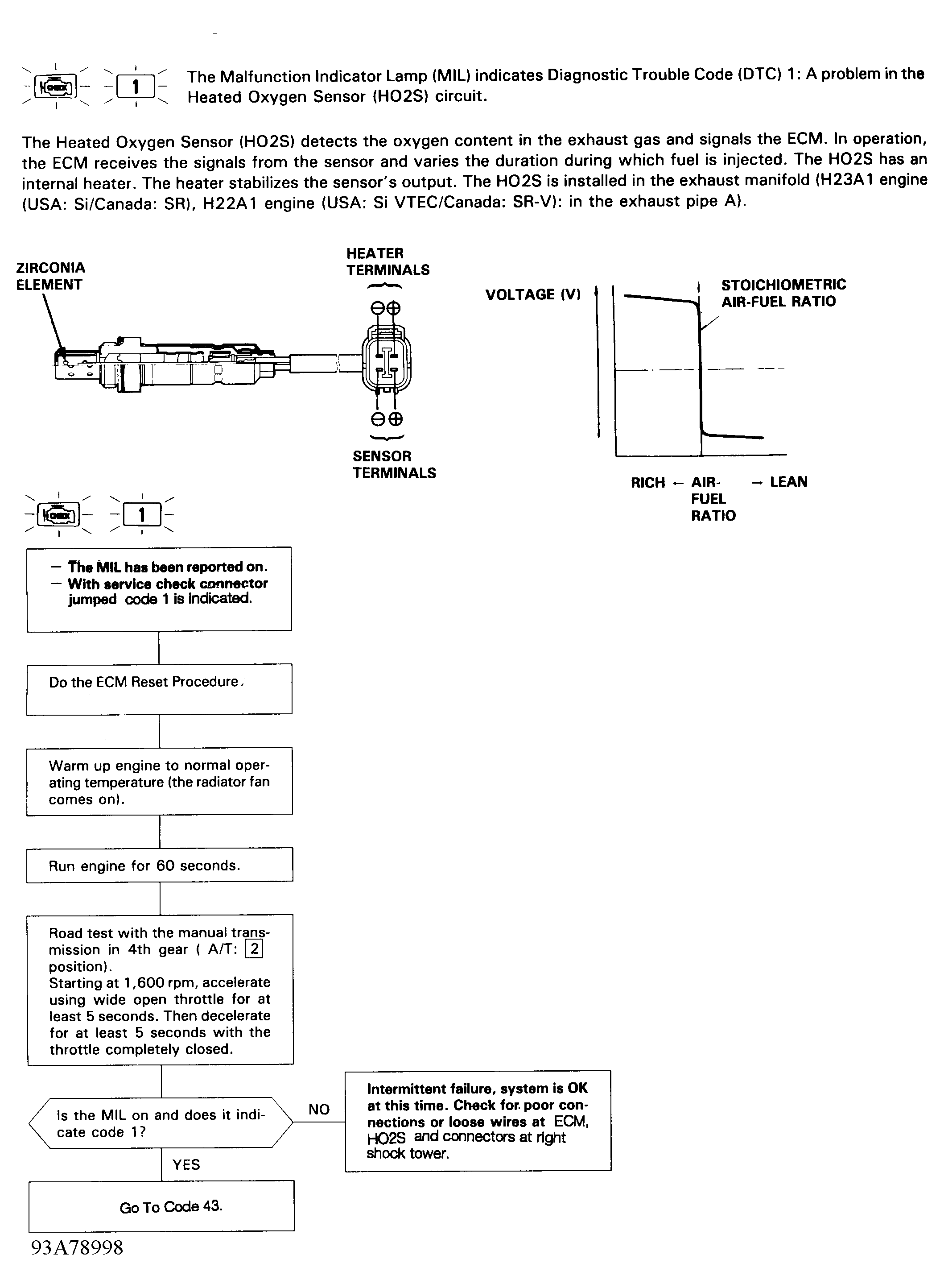

Fig 1: Code 1 Flowchart, Heated Oxygen Sensor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
