Code 14 - Idle Air Control (IAC) Valve

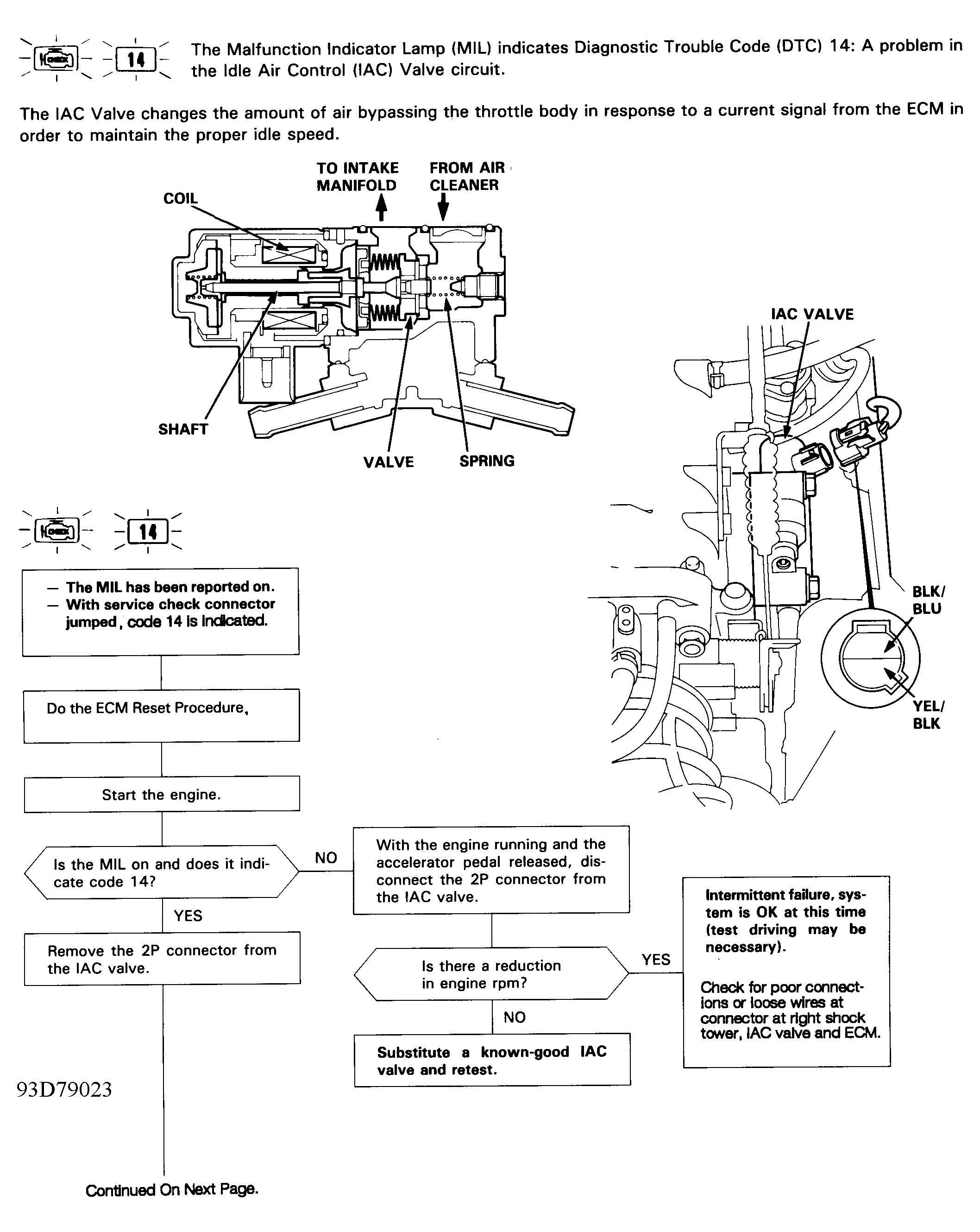

Fig 1: Code 14 Flowchart, Idle Air Control Valve (1 of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

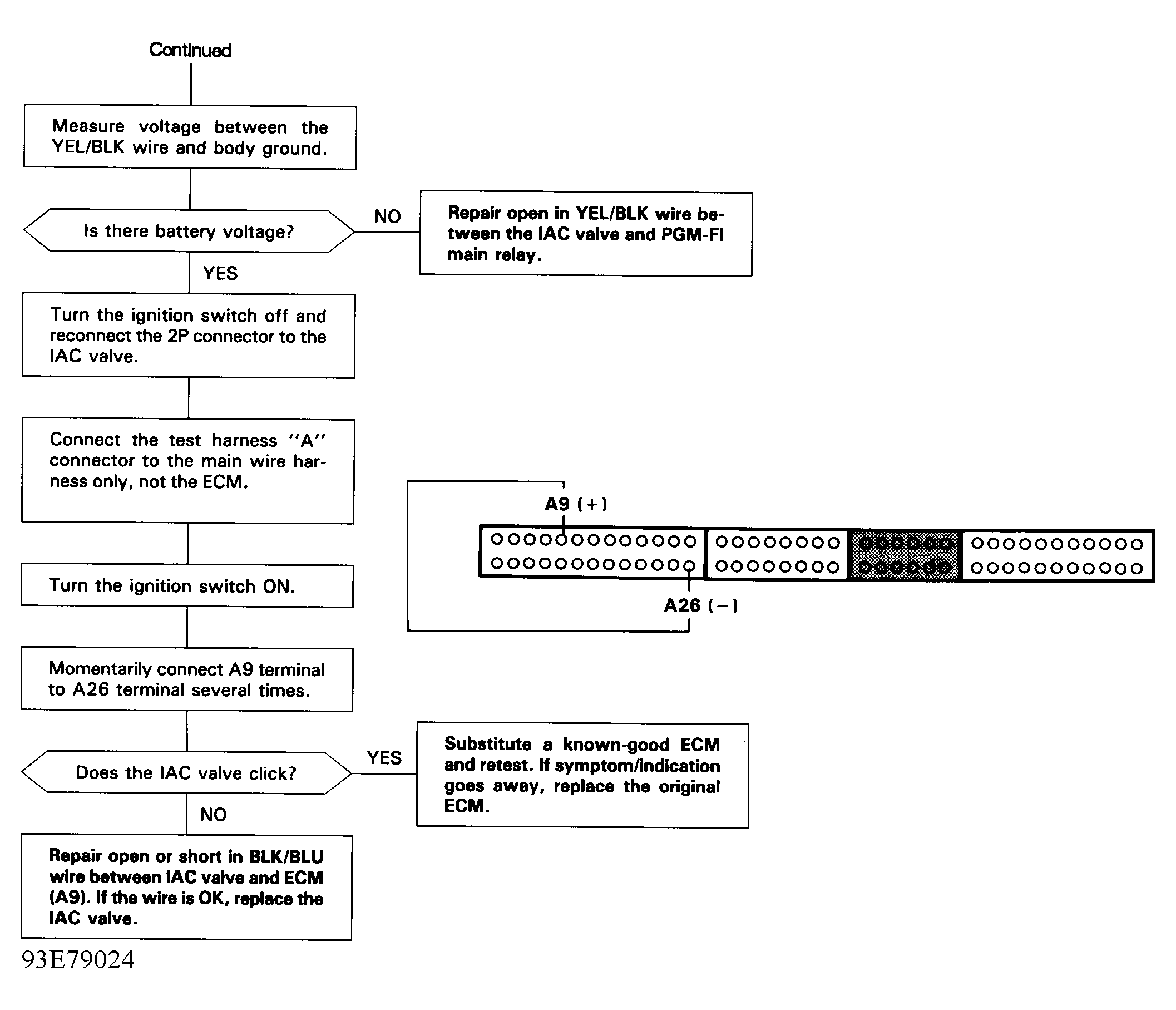

Fig 2: Code 14 Flowchart, Idle Air Control Valve (2 of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
