Code 17 - Vehicle Speed Sensor (VSS)

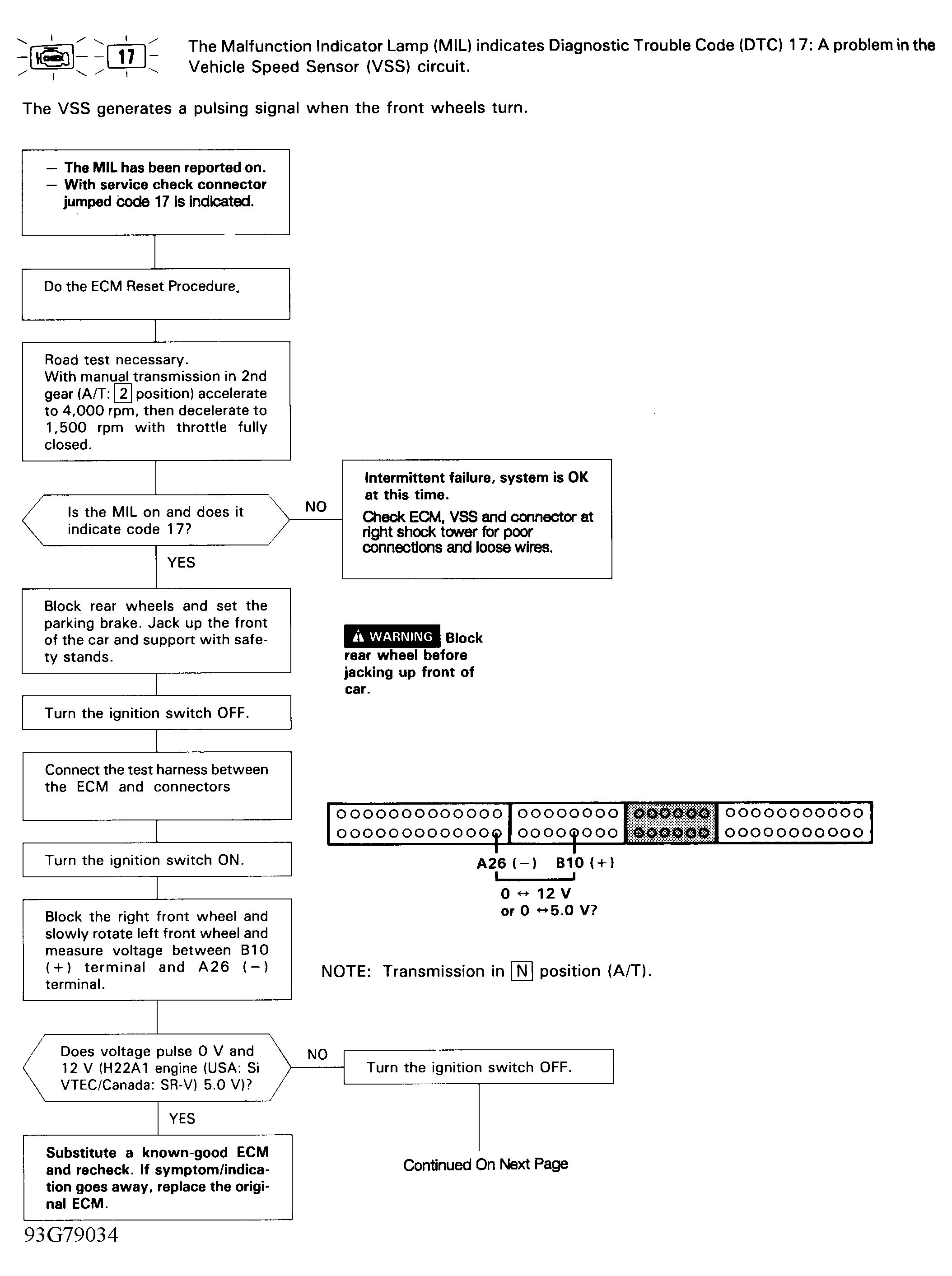

Fig 1: Code 17 Flowchart, Vehicle Speed Sensor (1 of 2)

G93G79034

Courtesy of AMERICAN HONDA MOTOR CO., INC.

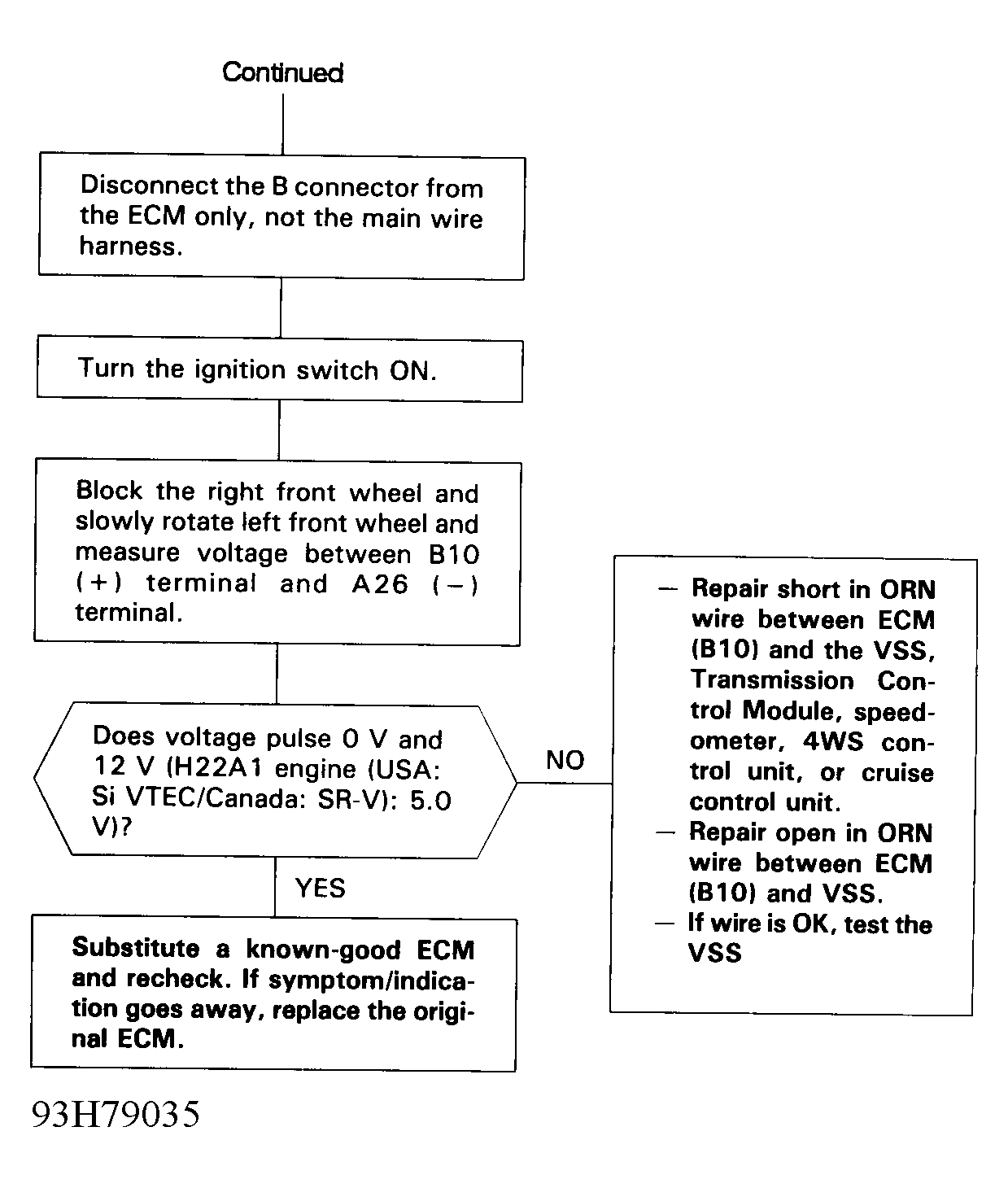

Fig 2: Code 17 Flowchart, Vehicle Speed Sensor (2 of 2)

G93H79035

Courtesy of AMERICAN HONDA MOTOR CO., INC.
