Code/No Code No Start Trouble Shooting

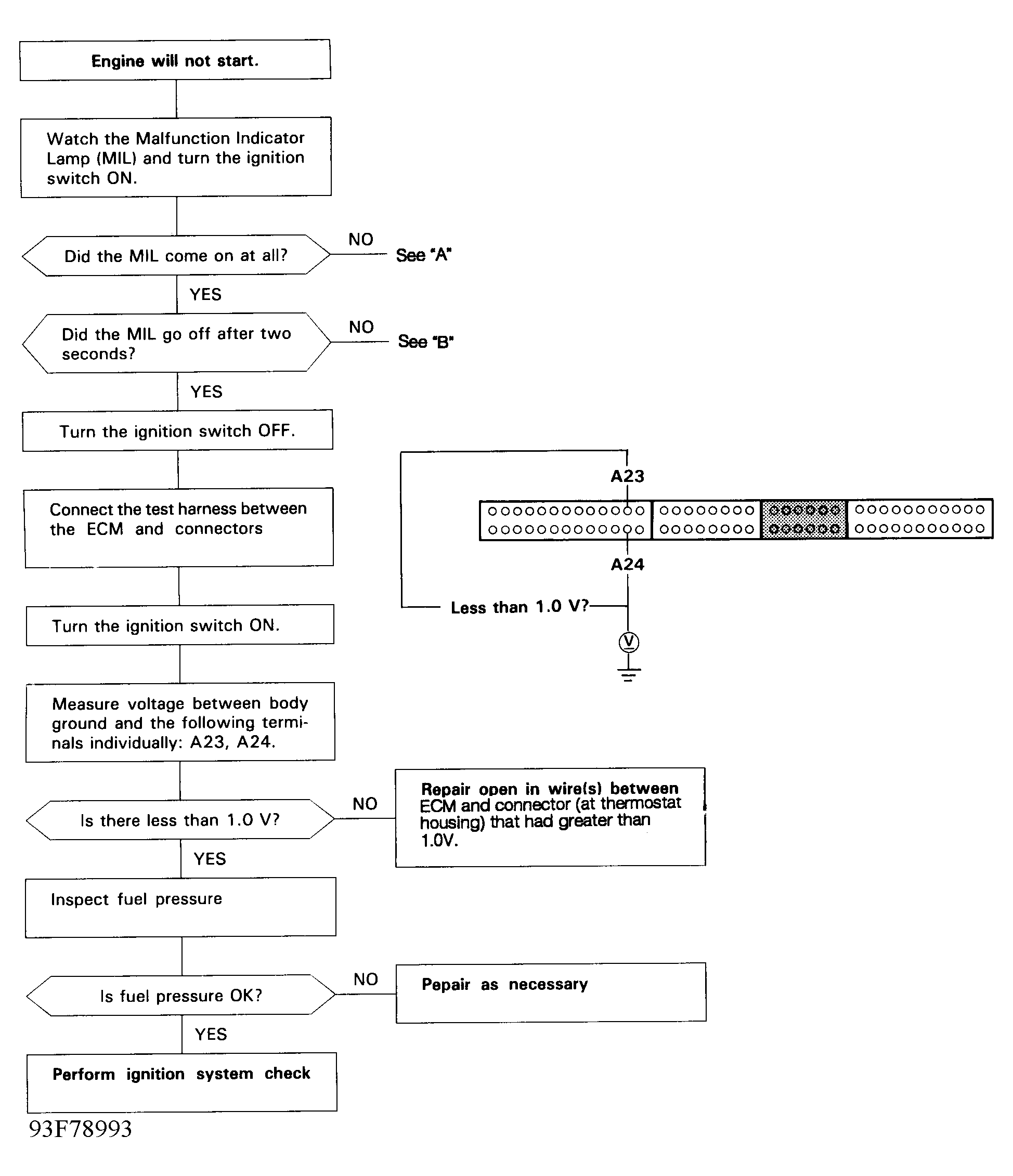

Fig 1: Flowchart, No Start Trouble Shooting (1 of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

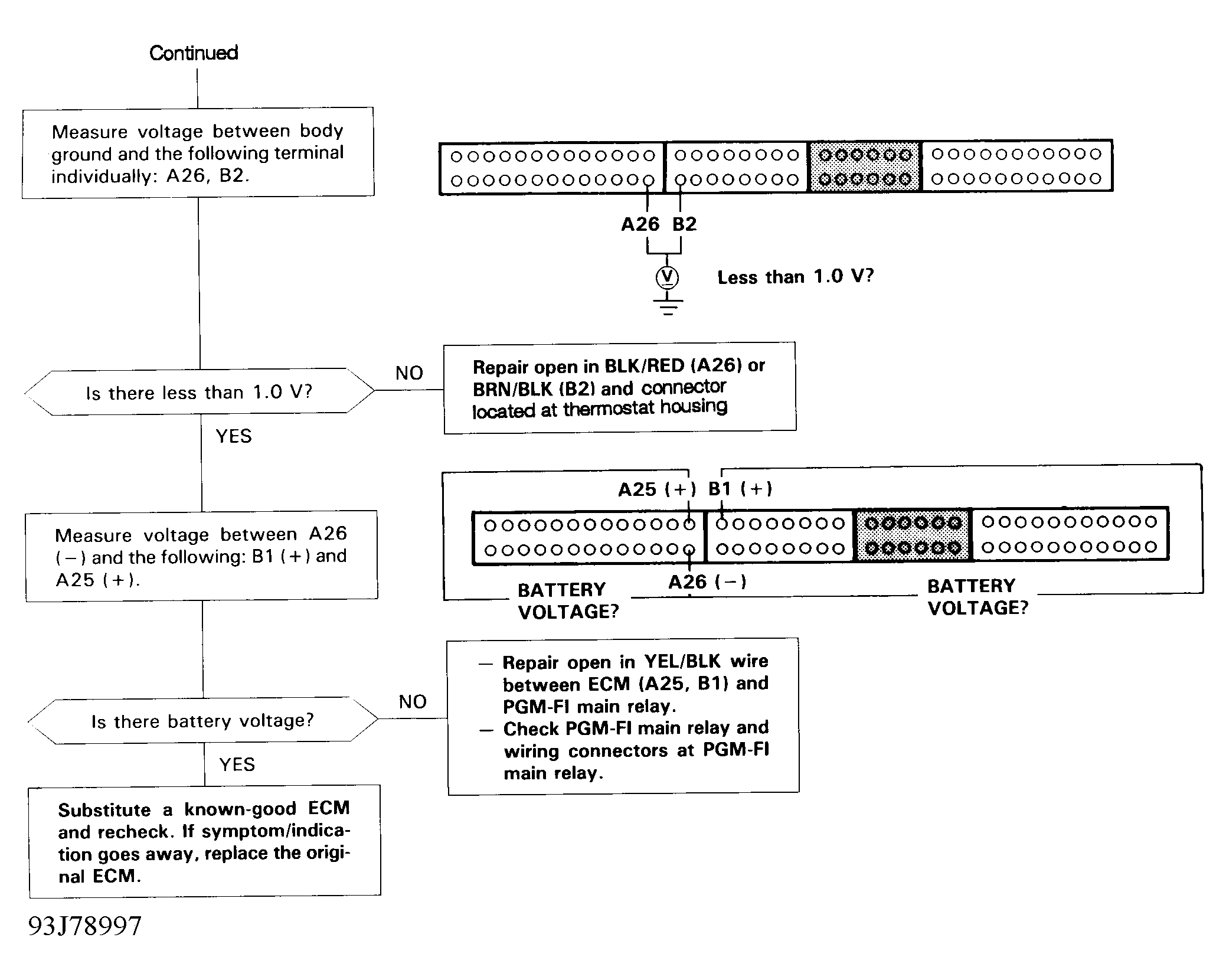

Fig 2: Flowchart, No Start Trouble Shooting (2 of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

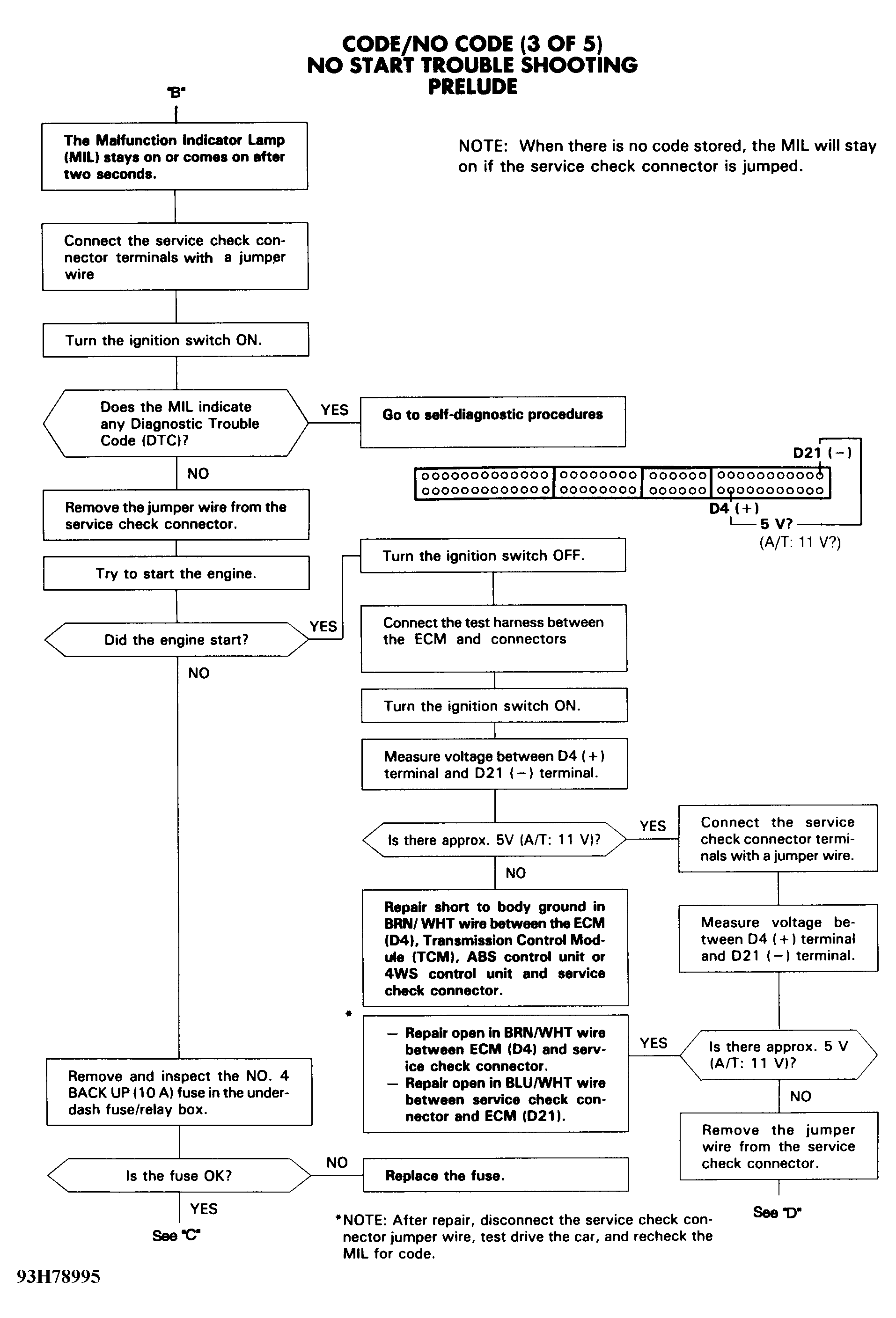

Fig 3: Flowchart, No Start Trouble Shooting (3 of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

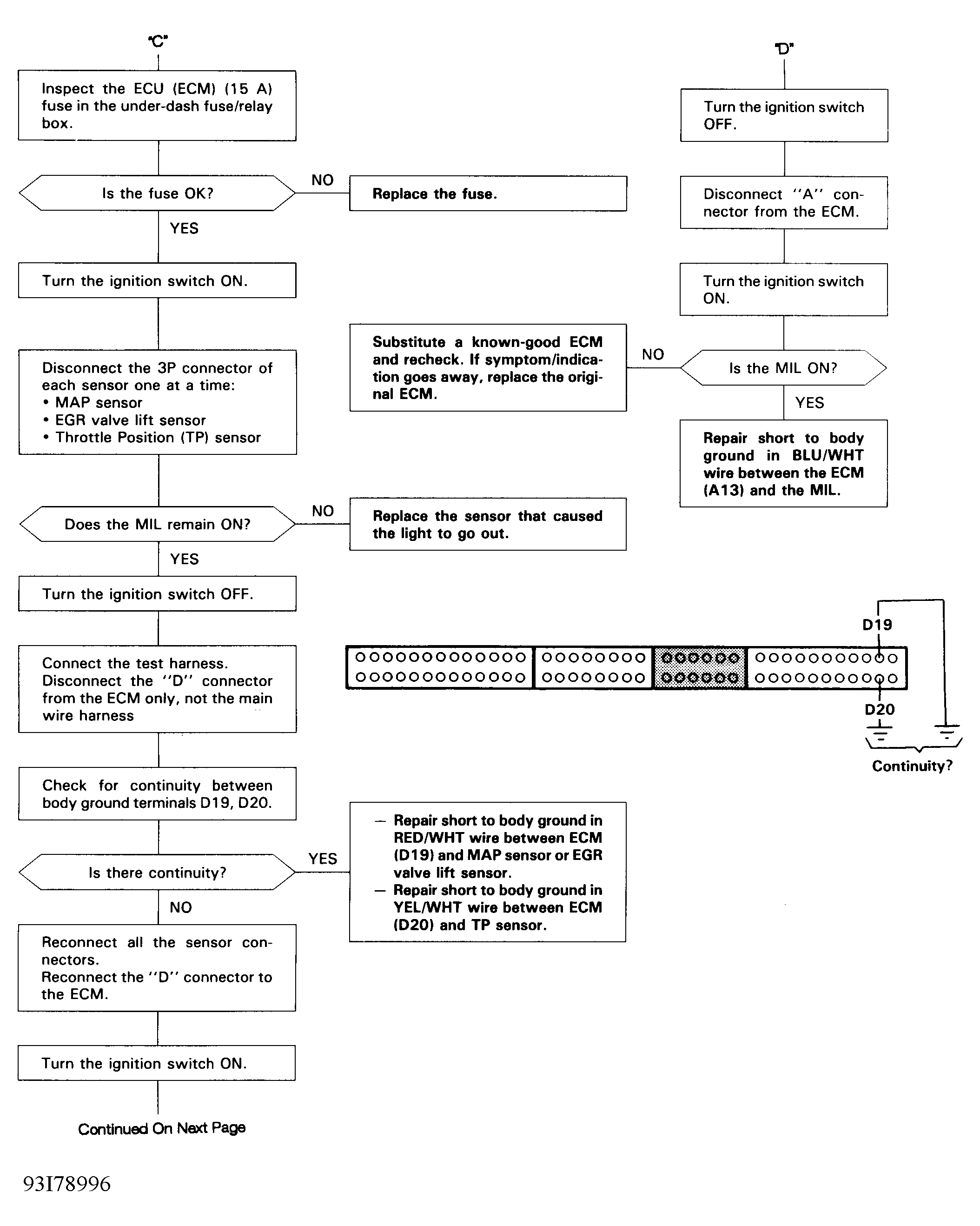

Fig 4: Flowchart, No Start Trouble Shooting (4 of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

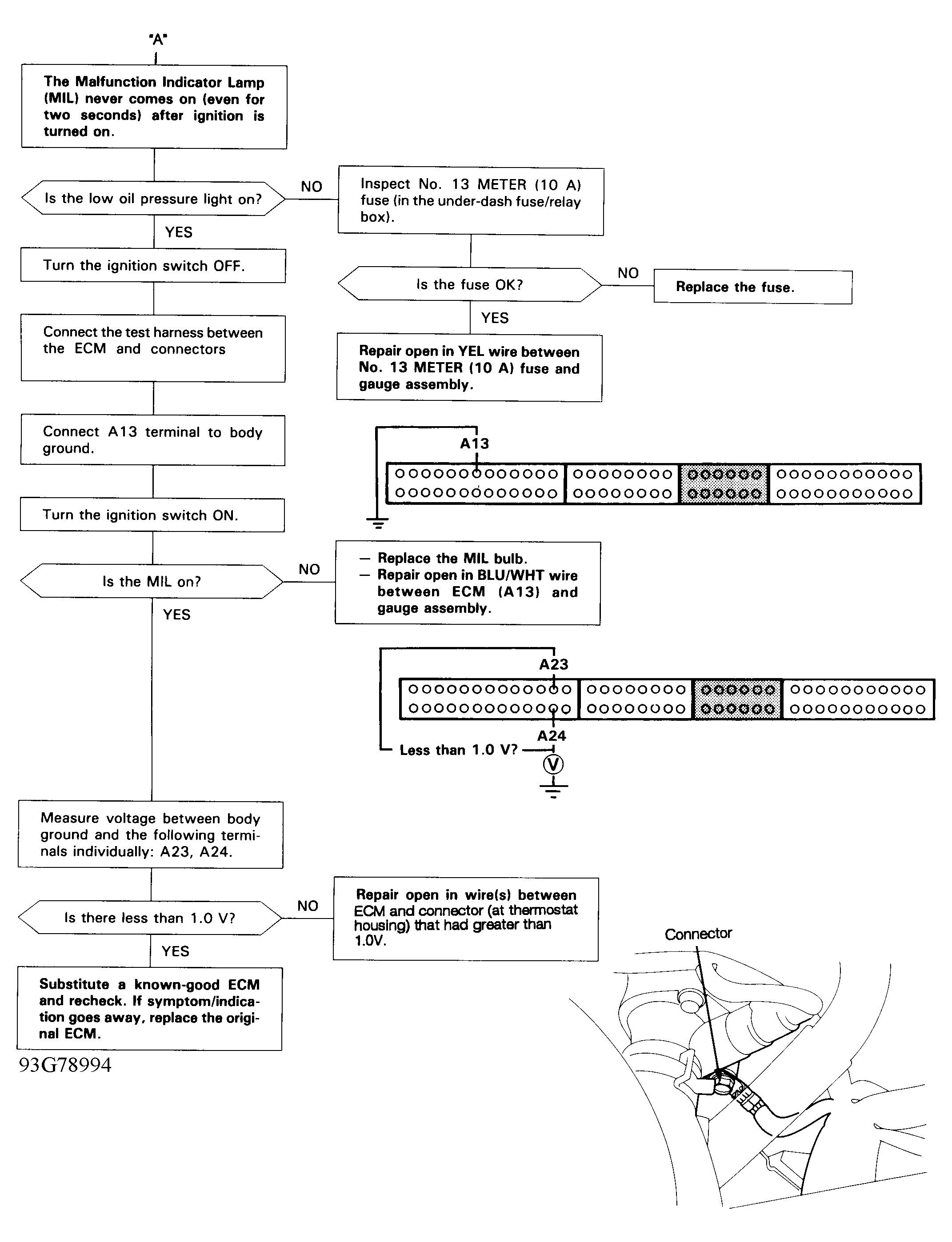

Fig 5: Flowchart, No Start Trouble Shooting (5 of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
