Firing Order & Timing Marks

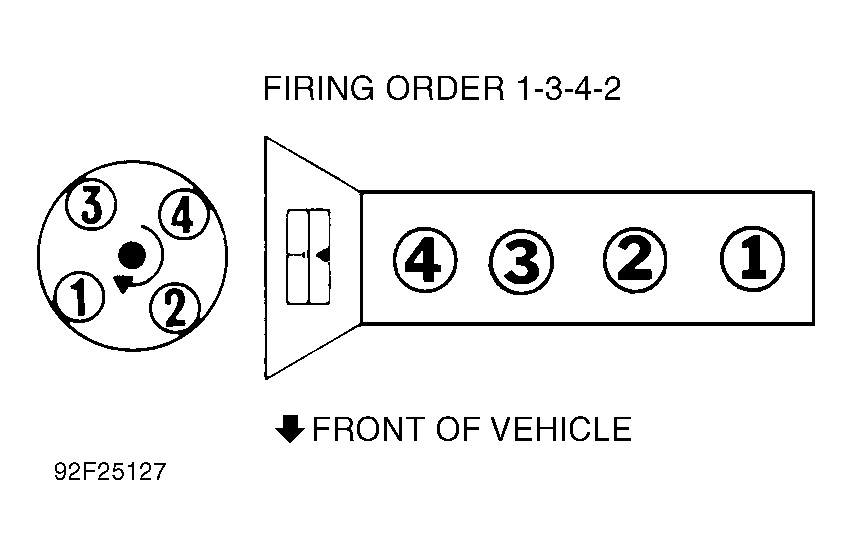

Fig 1: Firing Order & Distributor Rotation
G92F25127Courtesy of AMERICAN HONDA MOTOR CO., INC.

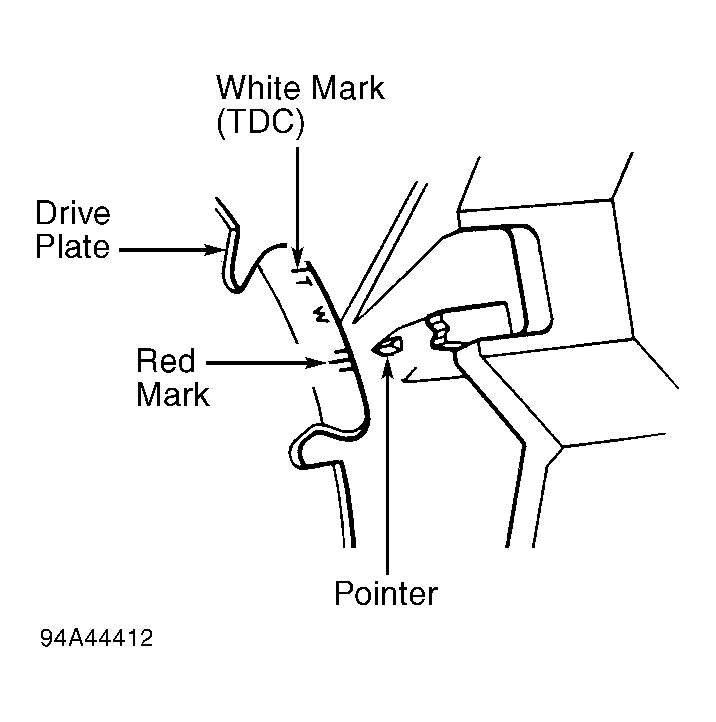

Fig 2: Locating Ignition Timing Marks
G94A44412Courtesy of AMERICAN HONDA MOTOR CO., INC.
