Fuel Injector Resistor

Unplug injector resistor harness connector. Injector resistor is located over at upper left firewall. Measure resistance between each injector resistor terminal ("B", "C", "D" and "E") and power terminal ("A"). See Fig 1 . Resistance should be 5-7 ohms for each pair of terminals. If any measurement is not as specified, replace injector resistor.

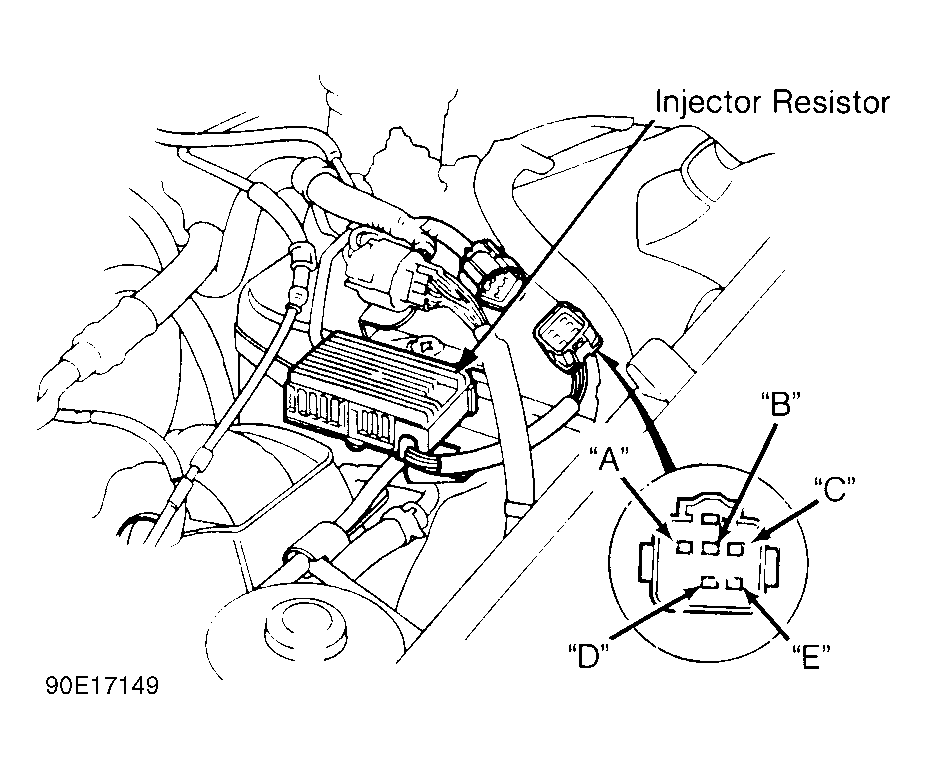

Fig 1: Identifying Injector Resistor Connector Terminals (Typical)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
