Code 12 - EGR System

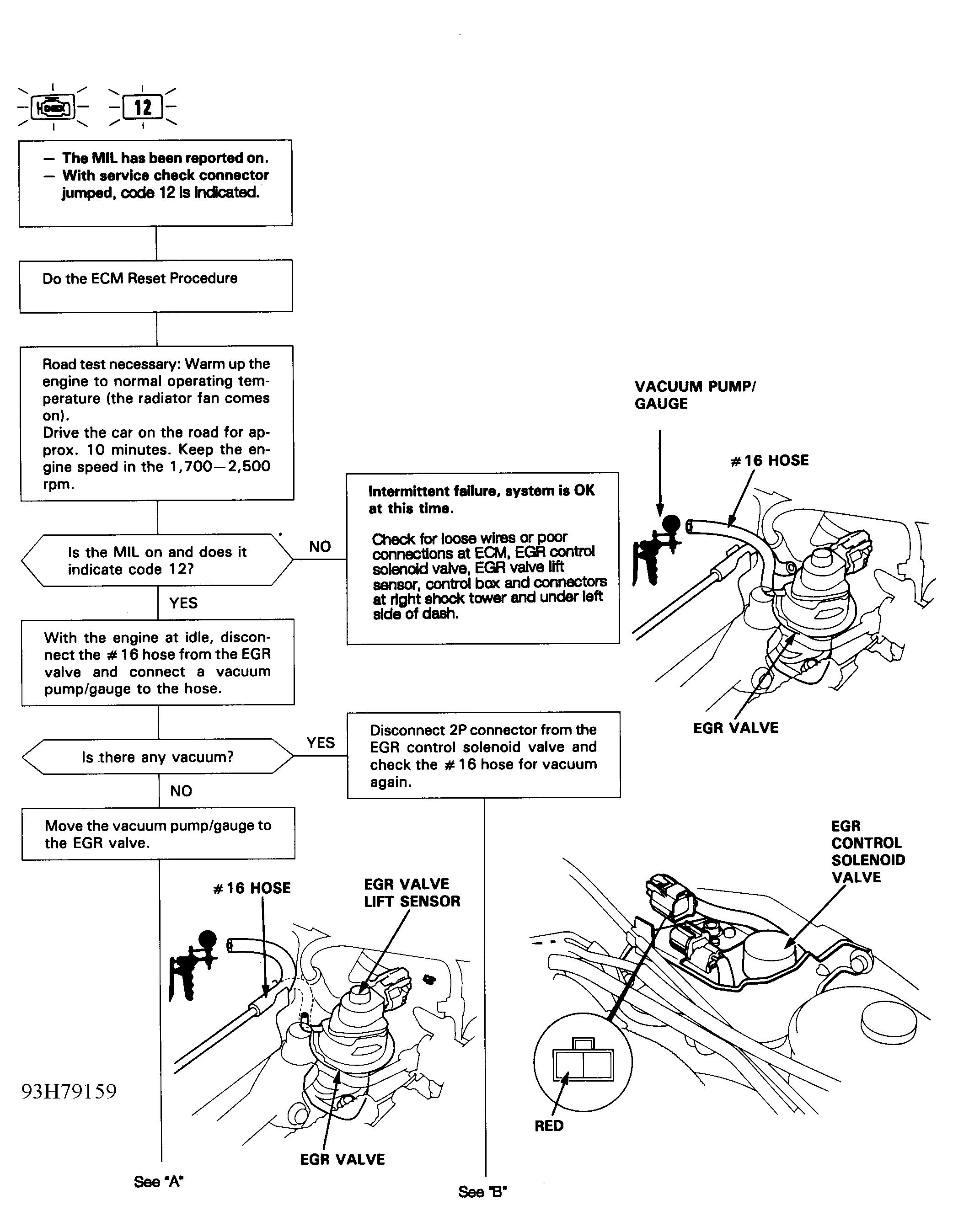

Fig 1: Code 12 Flow Chart (1 Of 5) EGR System
G93H79159

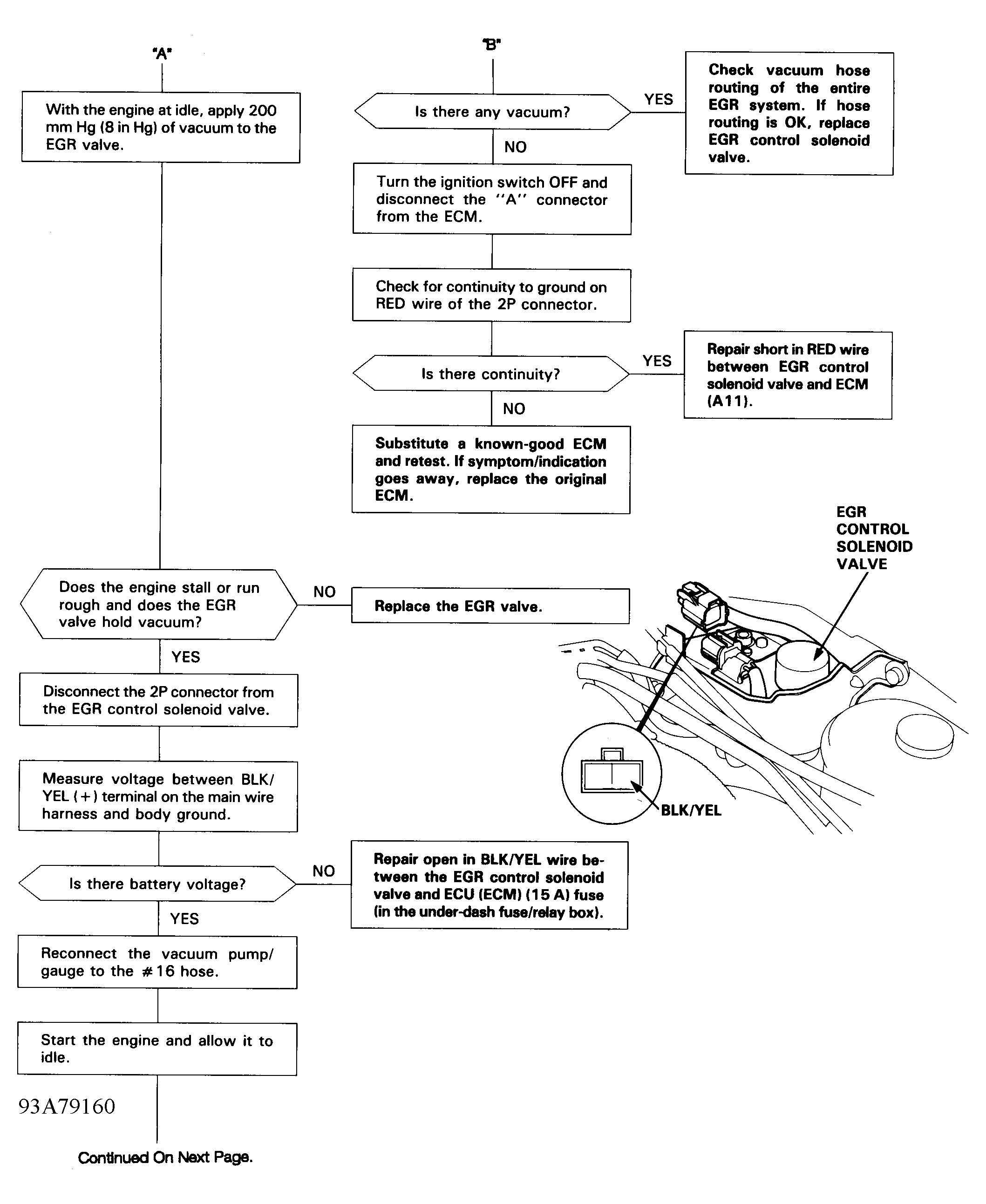

Fig 2: Code 12 Flow Chart (2 Of 5) EGR System
G93A79160
Fig 3: Code 12 Flow Chart (3 Of 5) EGR System
G93B79161

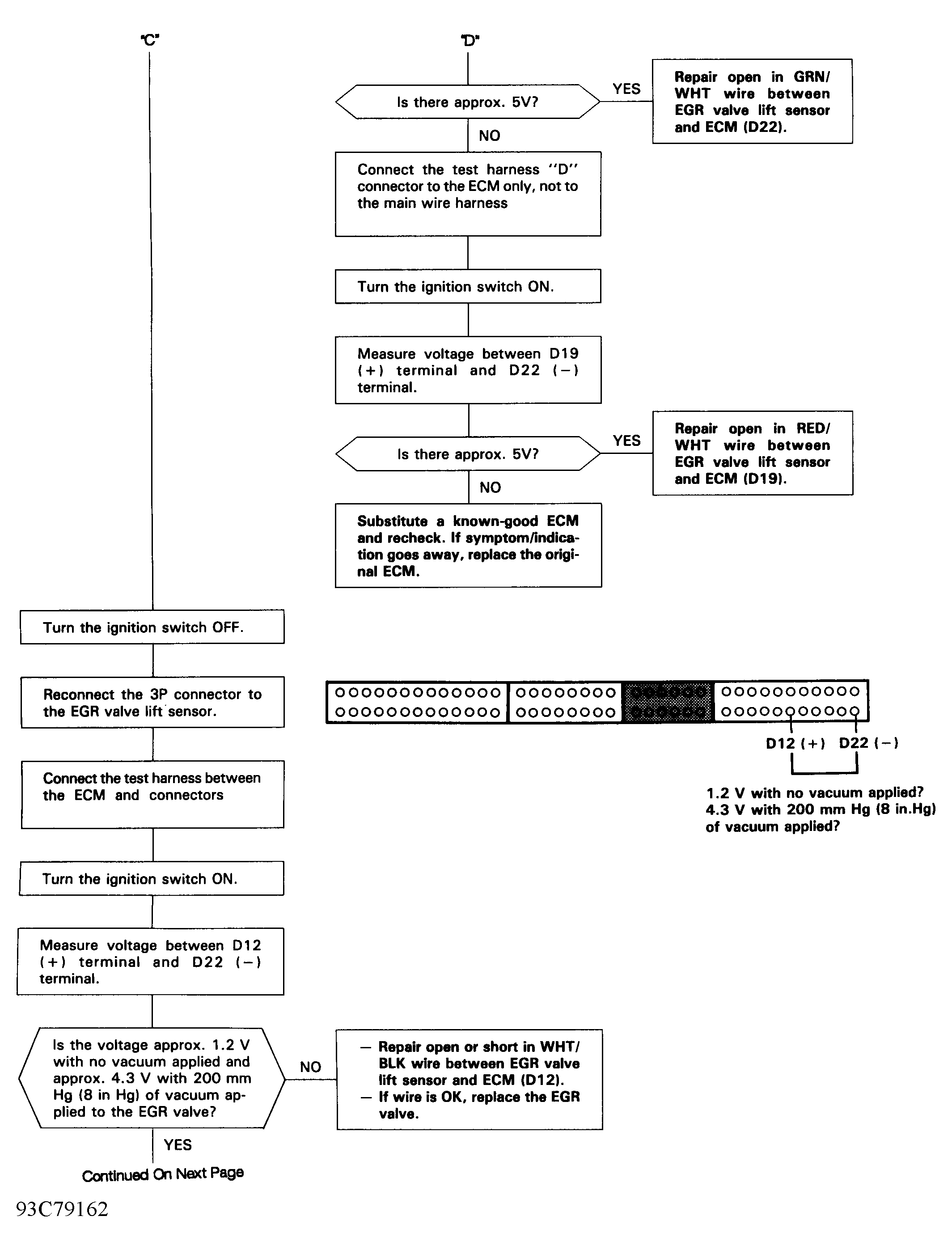

Fig 4: Code 12 Flow Chart (4 Of 5) EGR System
G93C79162

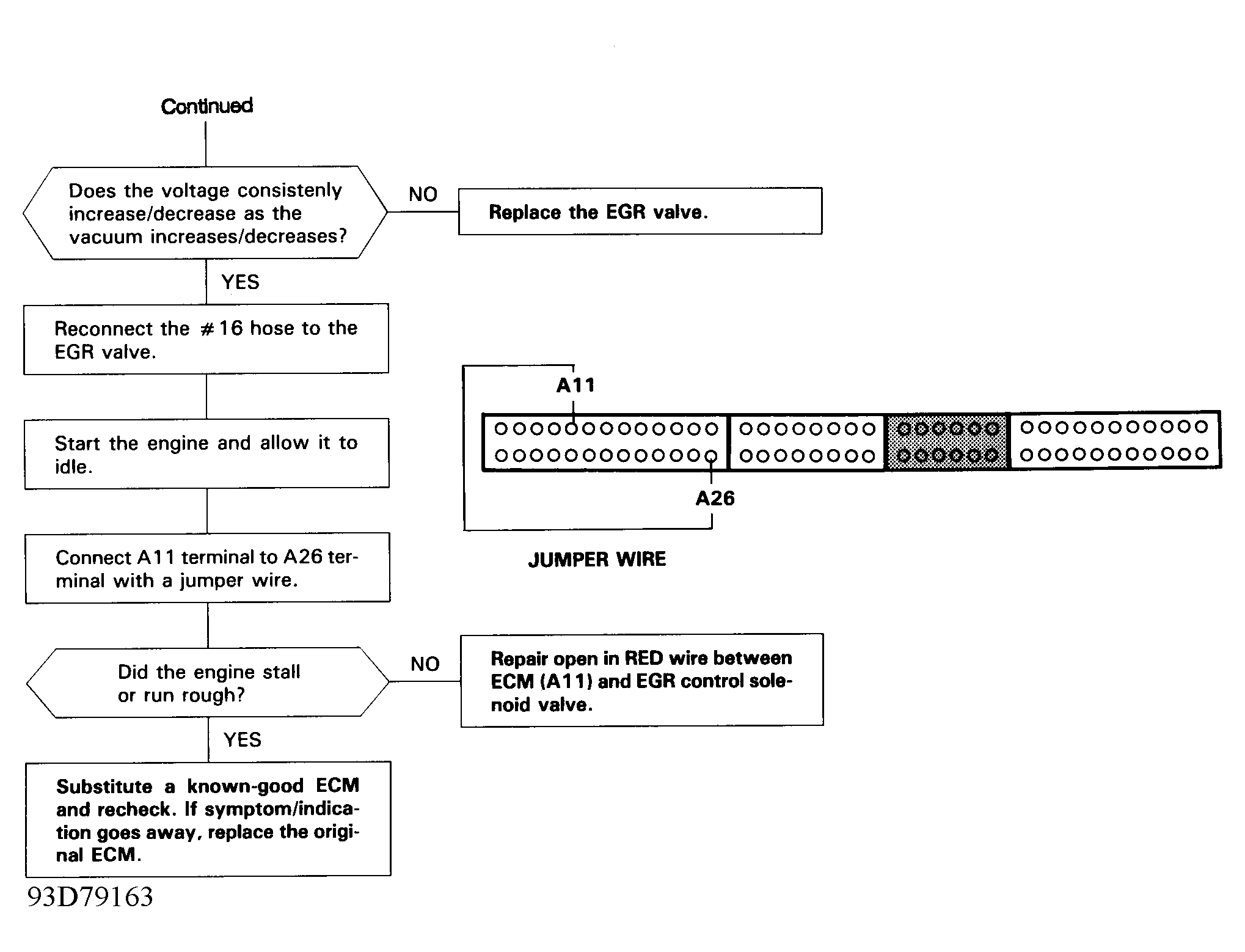

Fig 5: Code 12 Flow Chart (5 Of 5) EGR System
G93D79163
