Code 16 - Fuel Injectors

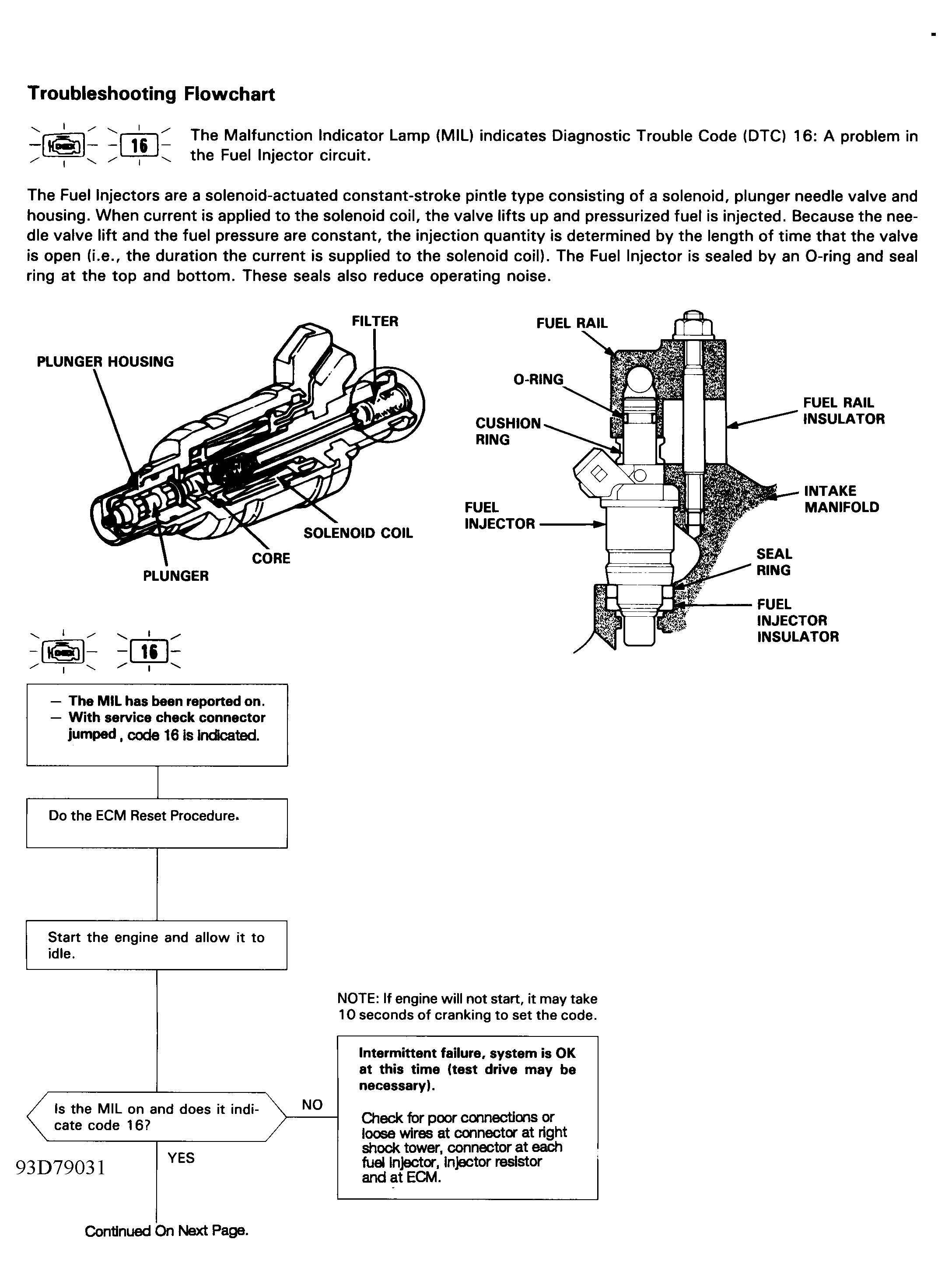

Fig 1: Code 16 Flow Chart (1 Of 3) Fuel Injectors
G93D79031

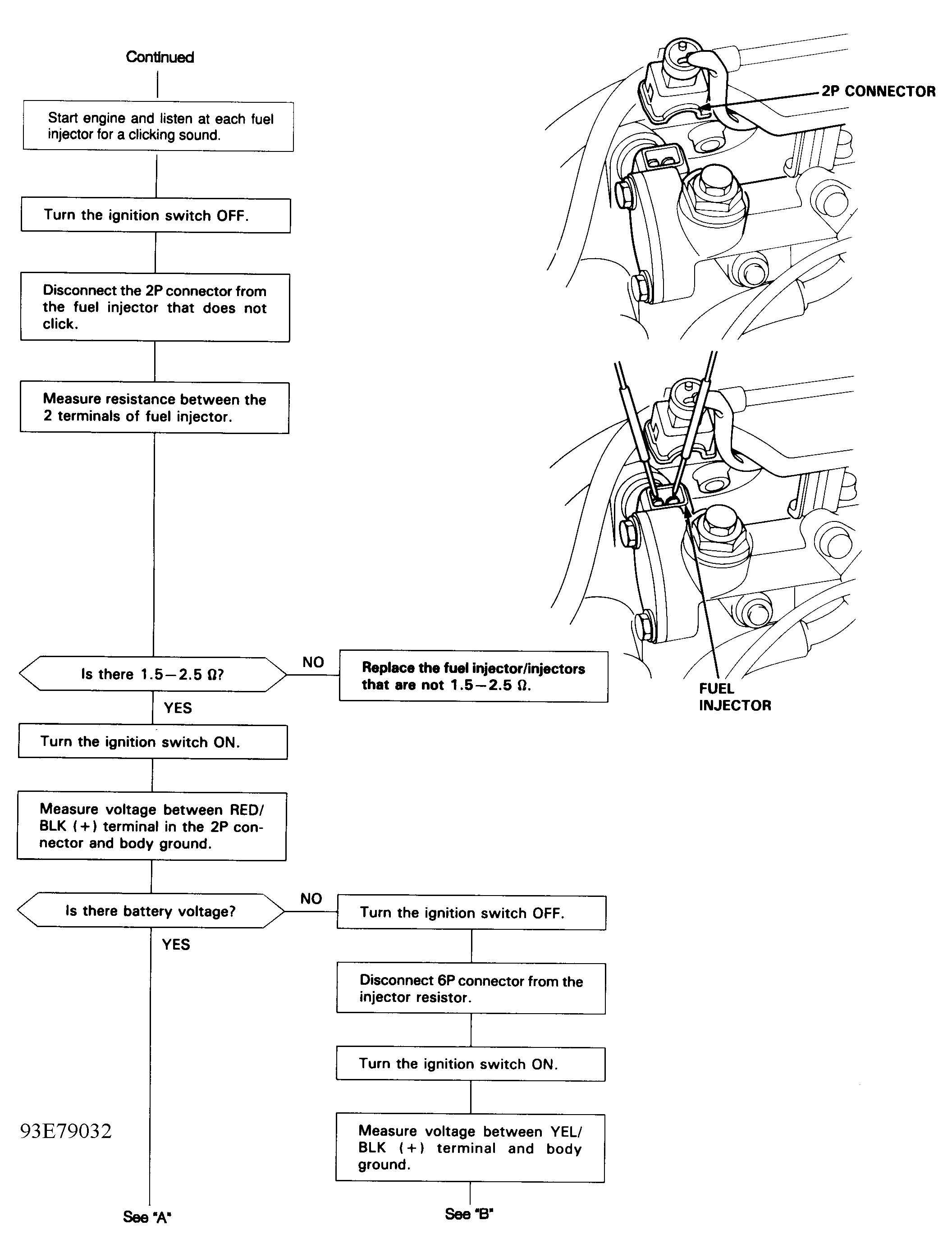

Fig 2: Code 16 Flow Chart (2 Of 3) Fuel Injectors
G93E79032

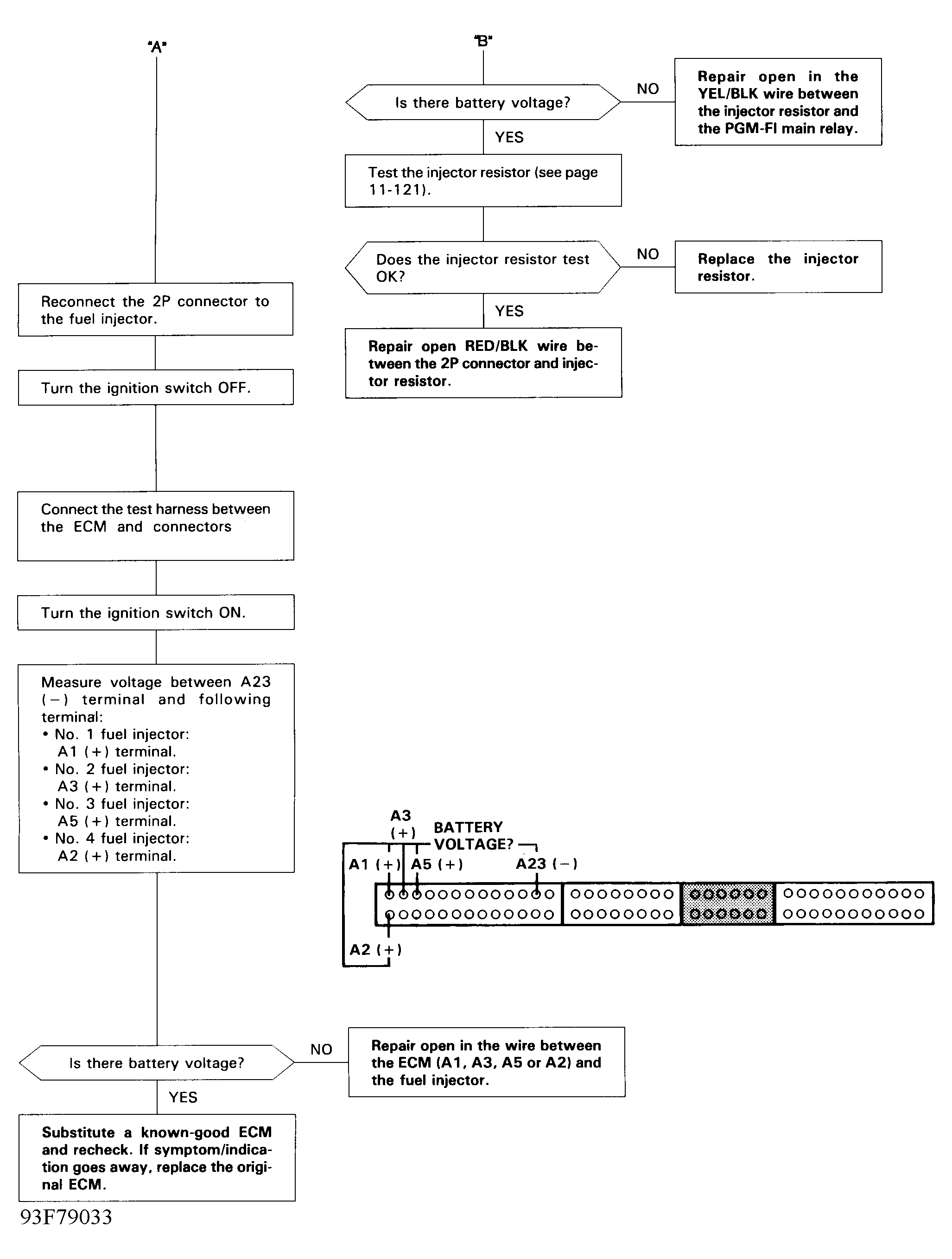

Fig 3: Code 16 Flow Chart (3 Of 3) Fuel Injectors
G93F79033
