Code 20 - Electrical Load Detector (Eld)

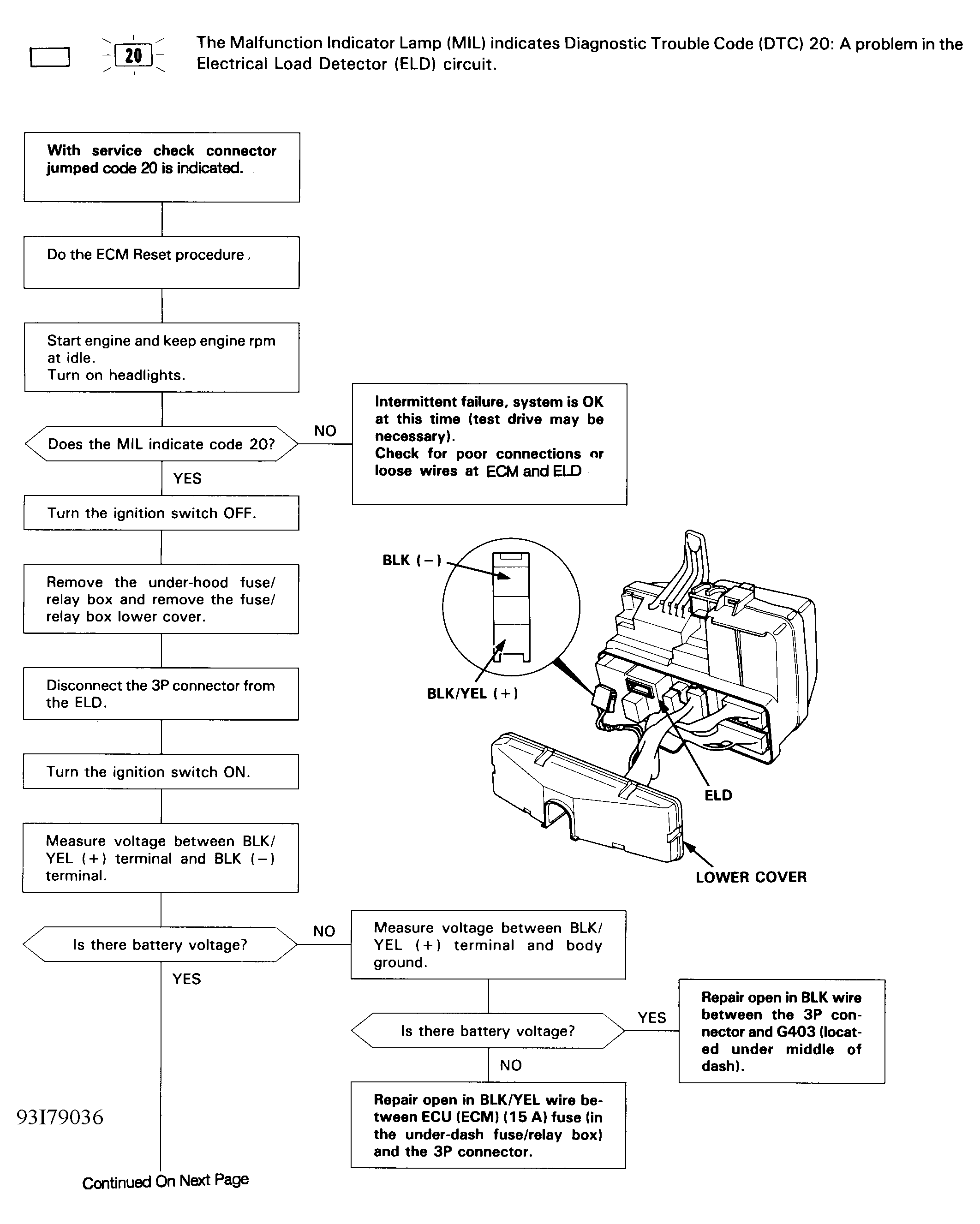

Fig 1: Code 20 Flow Chart (1 Of 2) Electrical Load Detector (ELD)
G93I79036

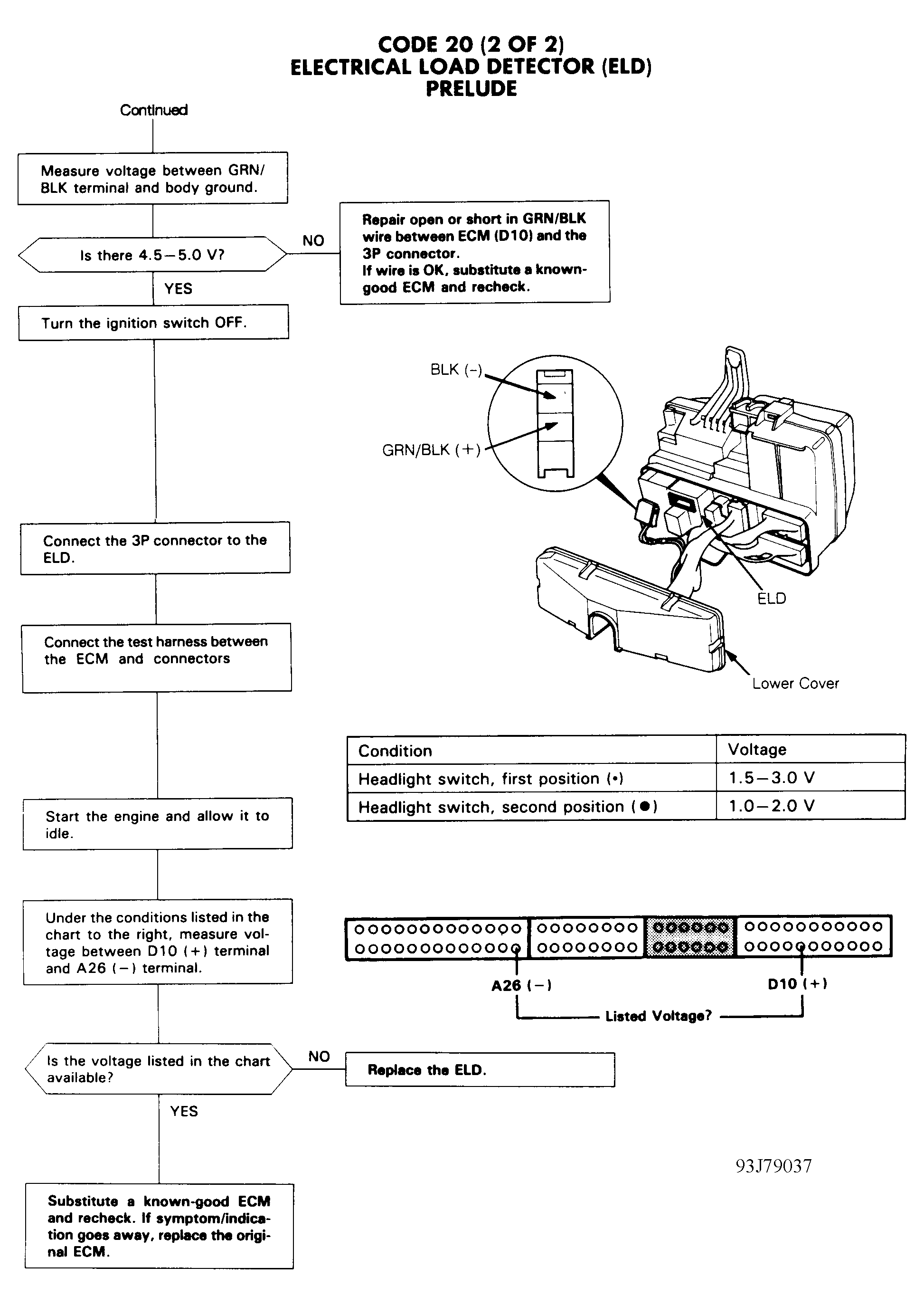

Fig 2: Code 20 Flow Chart (2 Of 2) Electrical Load Detector (ELD)
G93J79037
