Code 21 - VTEC Solenoid Valve Circuit

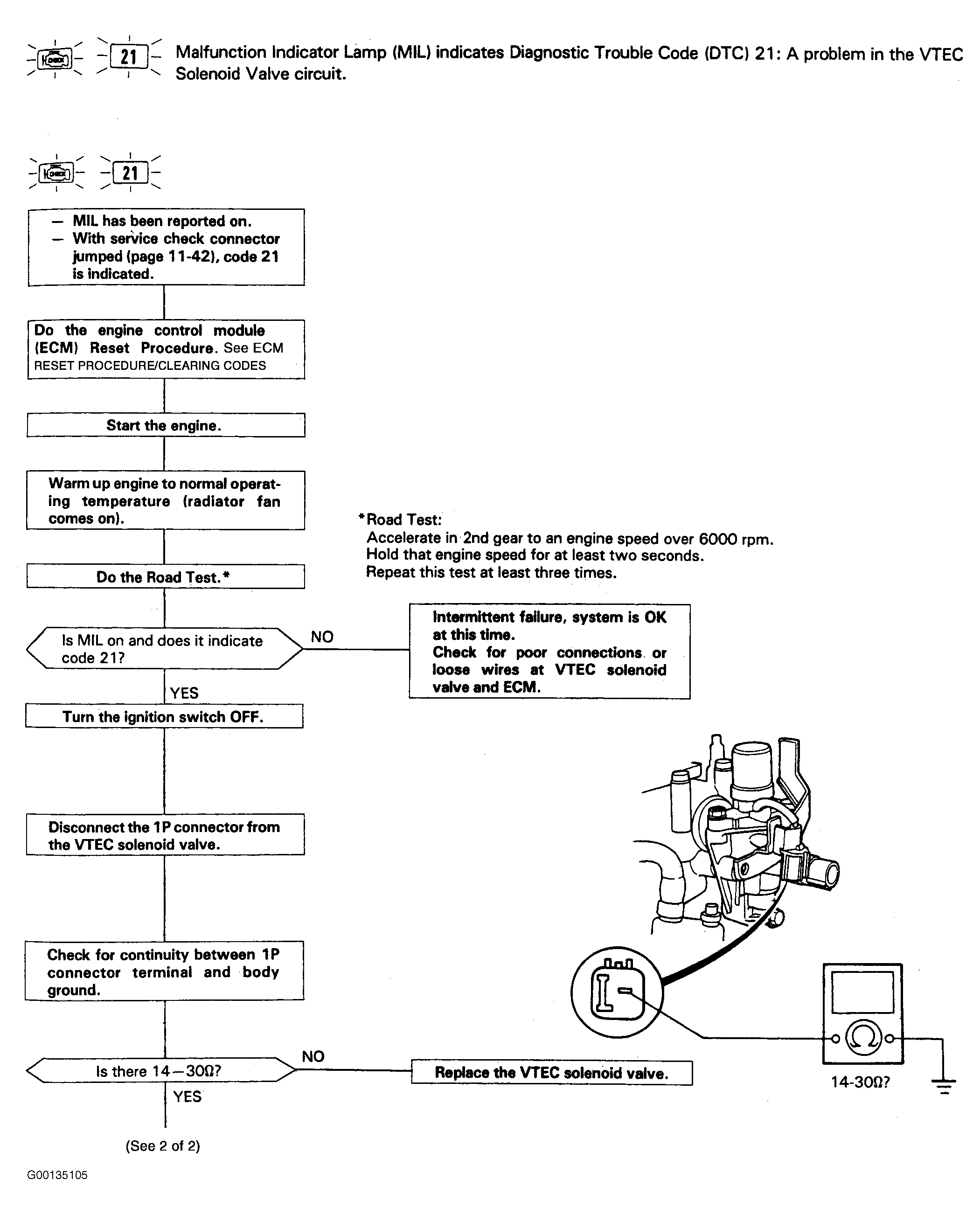

Fig 1: Code 21 Flow Chart VTEC Solenoid Valve Circuit (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

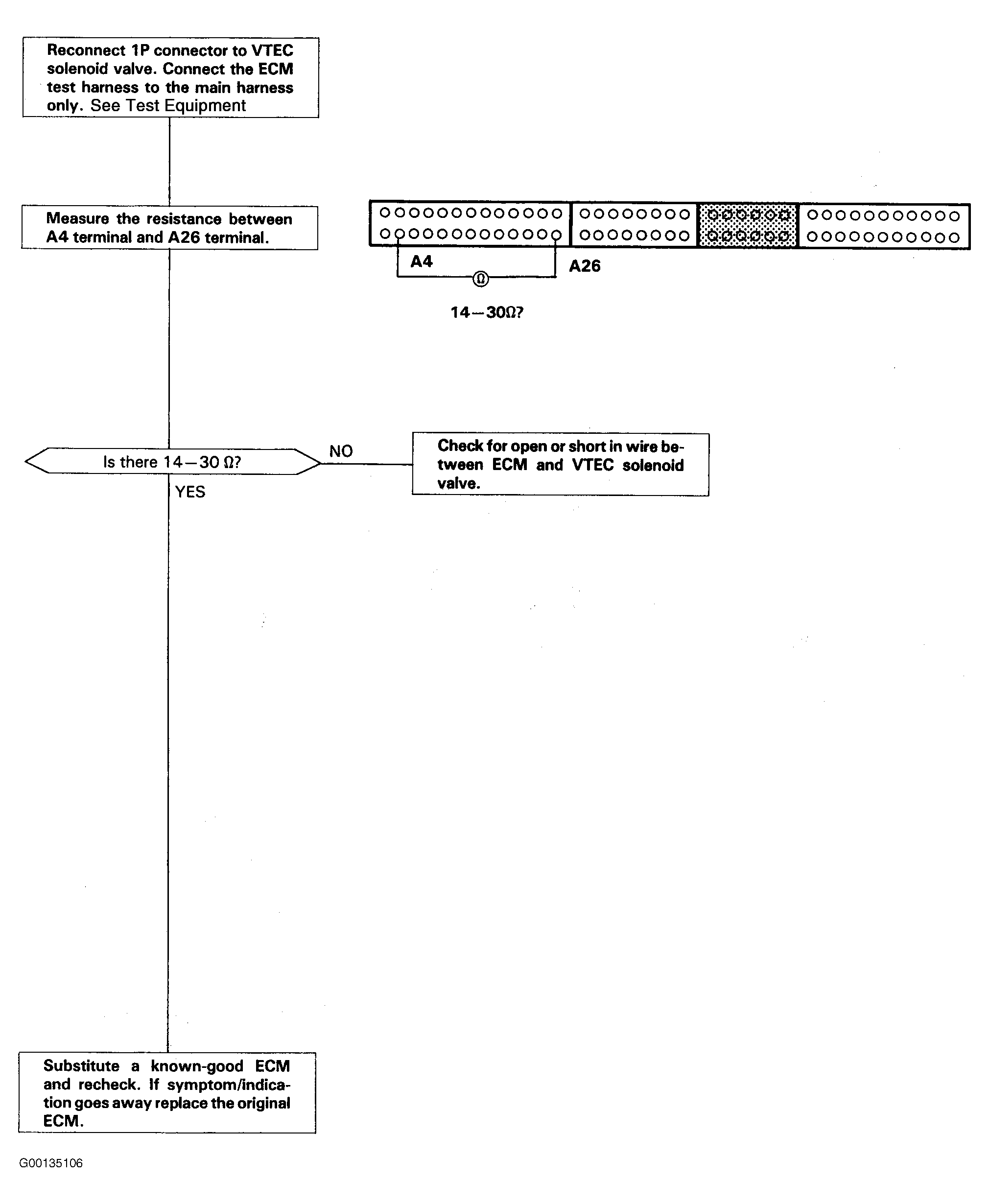

Fig 2: Code 21 Flow Chart VTEC Solenoid Valve Circuit (2Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
