Code 7 - Throttle Position (TP) Sensor

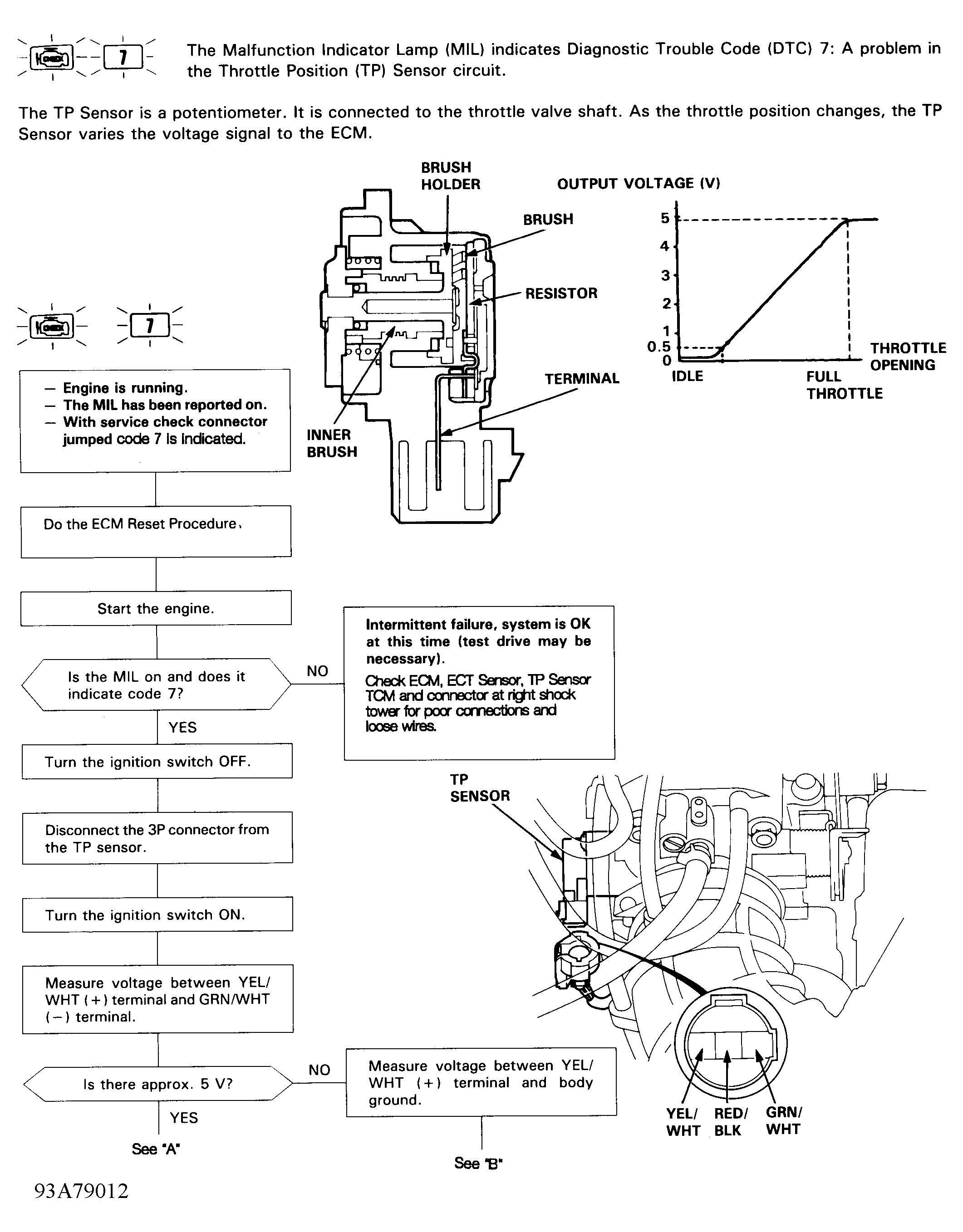

Fig 1: Code 7 Flow Chart (1 Of 2) Throttle Position (TP) Sensor
G93A79012

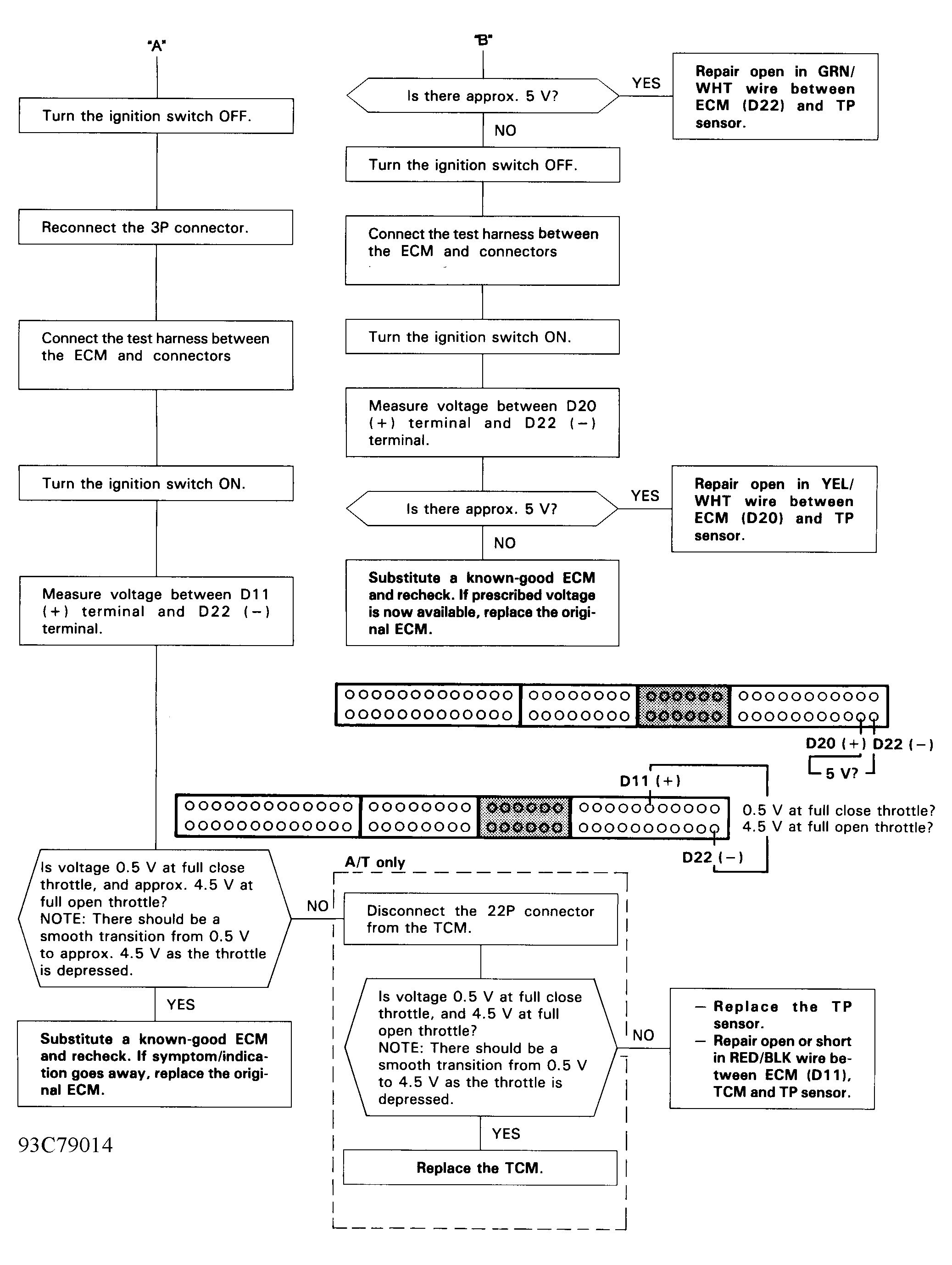

Fig 2: Code 7 Flow Chart (2 Of 2) Throttle Position (TP) Sensor
G93C79014
