Connector Identification

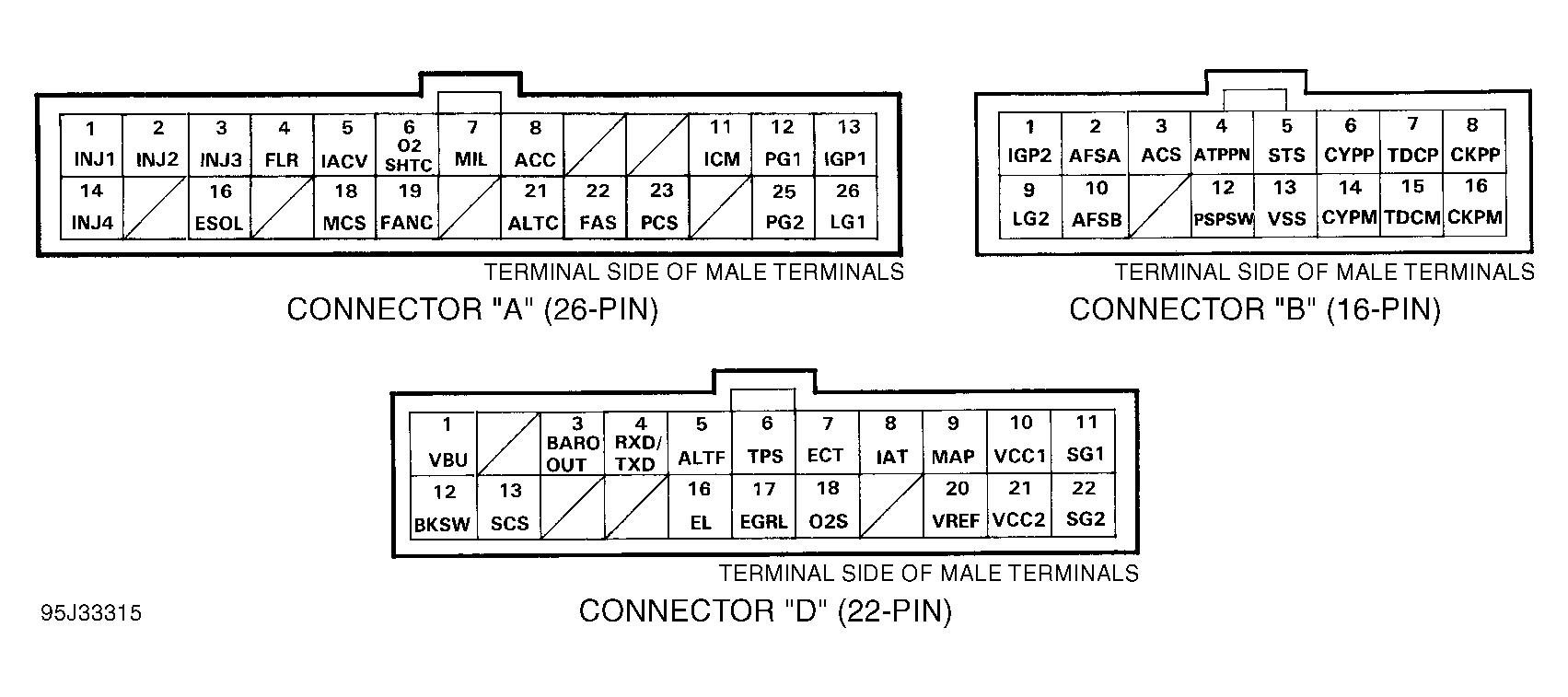

Fig 1: Test Harness (07LAJ-PT3010A) Terminal ID (All Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

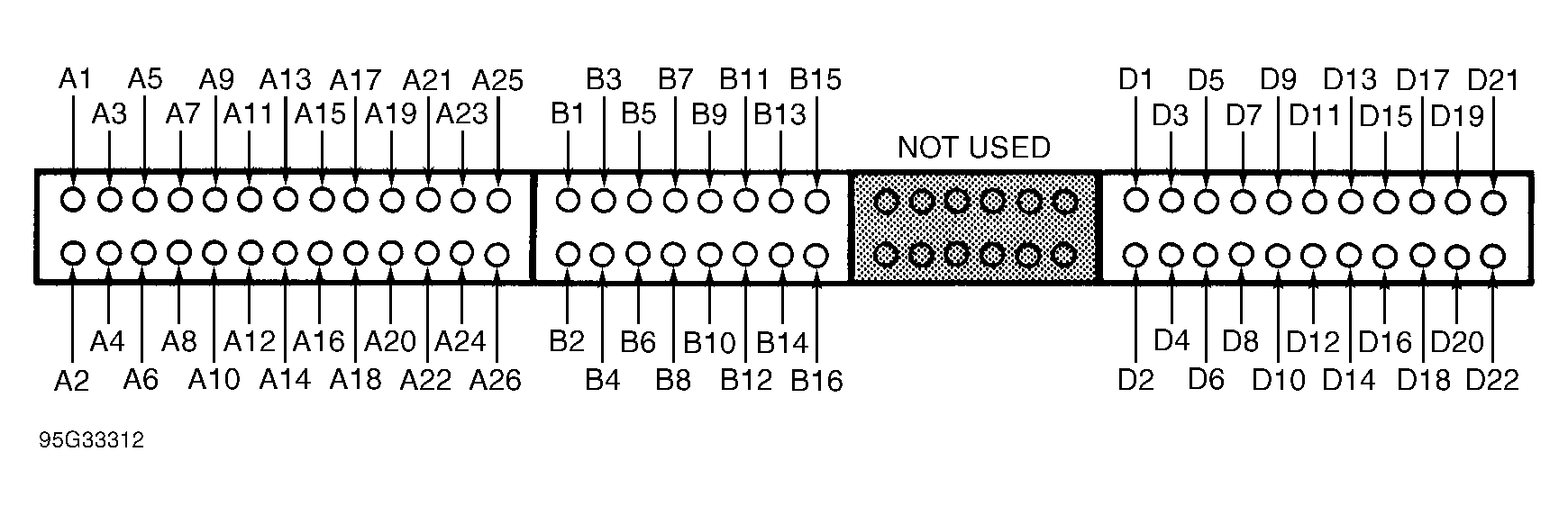

Fig 2: Engine Control Module (ECM) Connector Terminal ID (Accord)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

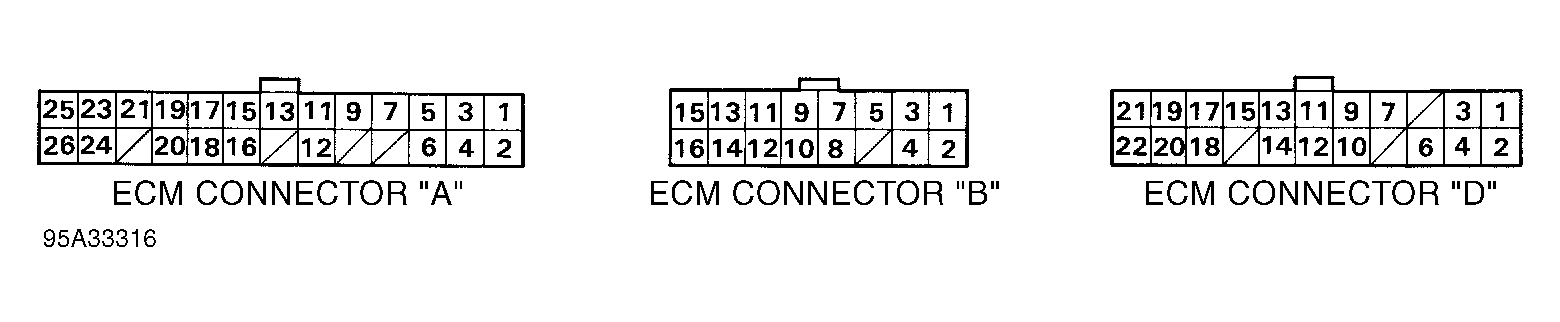

Fig 3: Engine Control Module (ECM) Connector Terminal ID (Odyssey)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

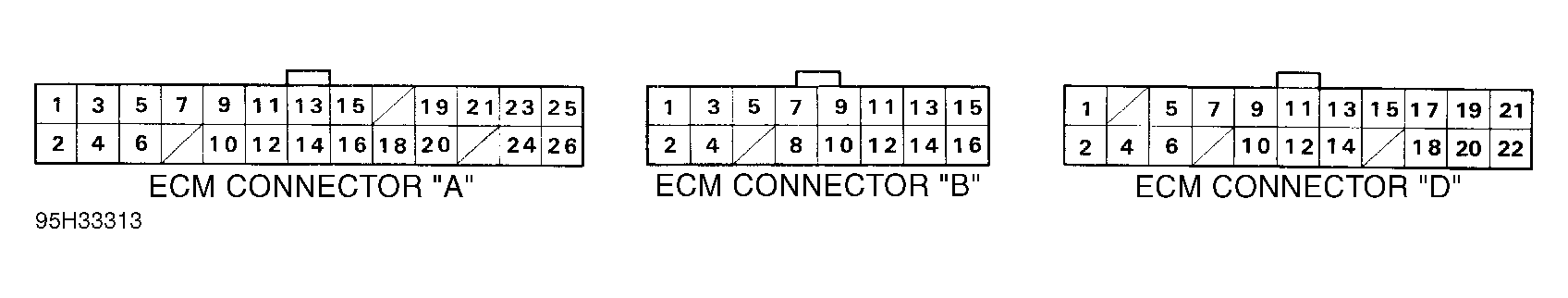

Fig 4: Engine Control Module (ECM) Connector Terminal ID (Prelude)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: In the following DTC testing, illustrations and schematics are courtesy of American Honda Motor Co., Inc.
